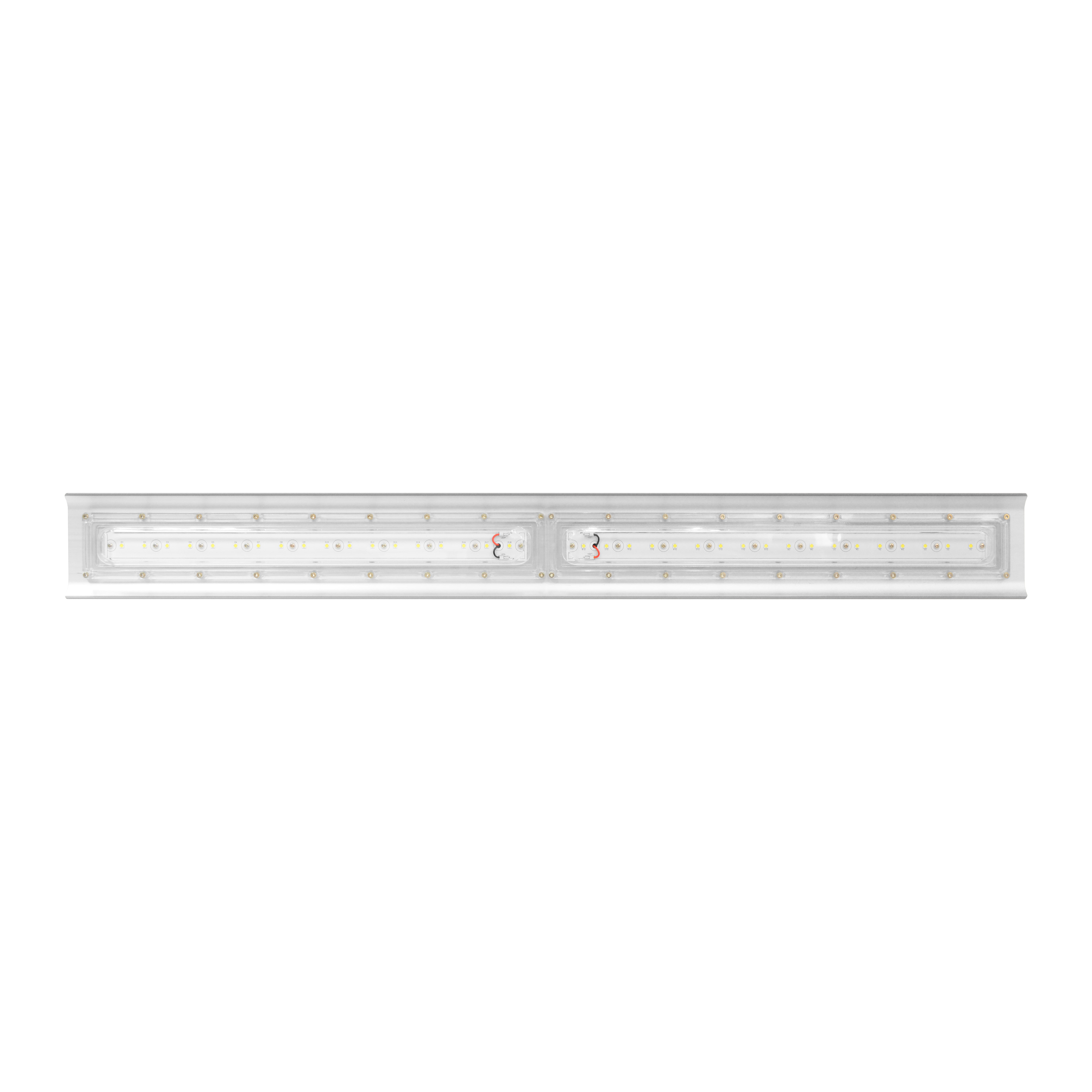

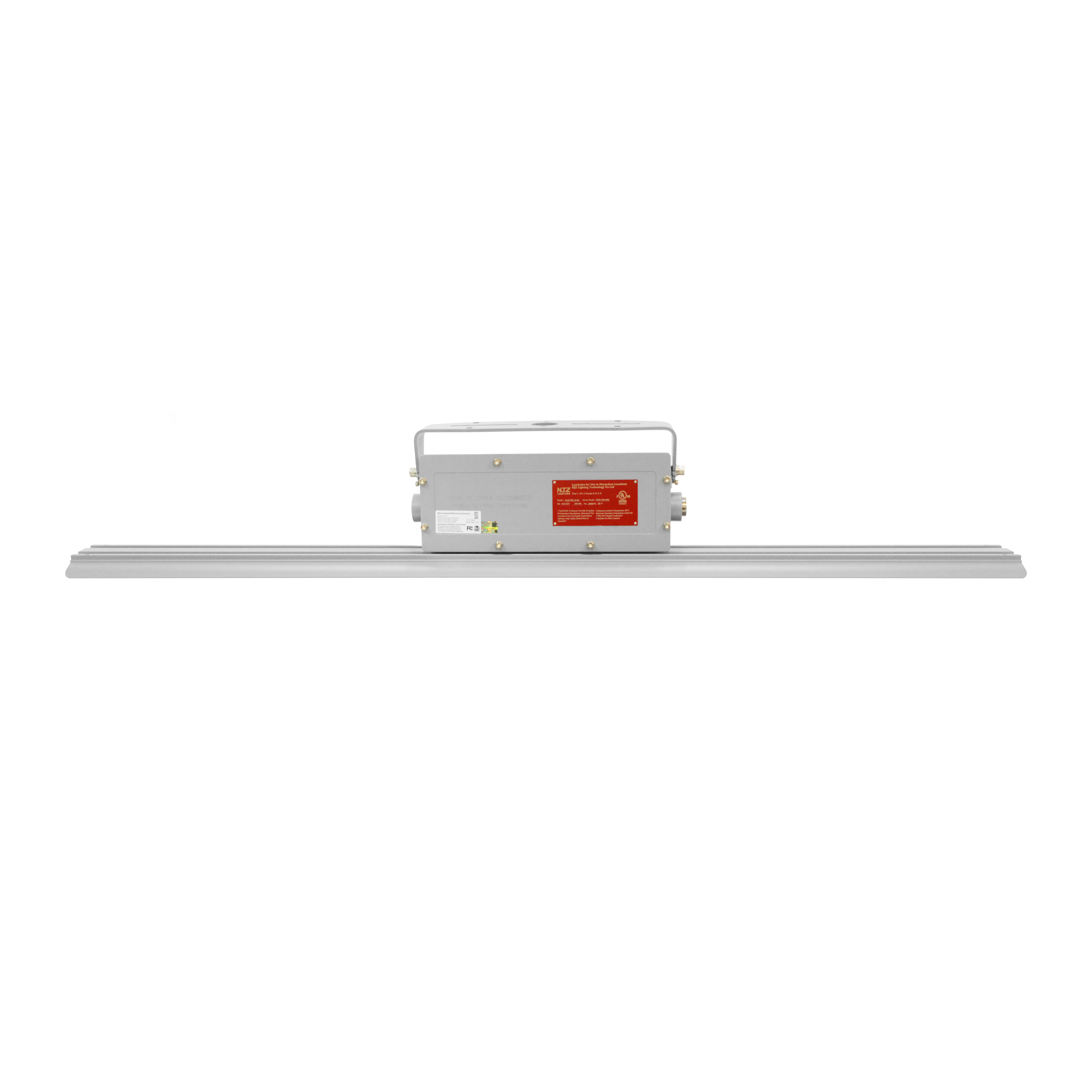

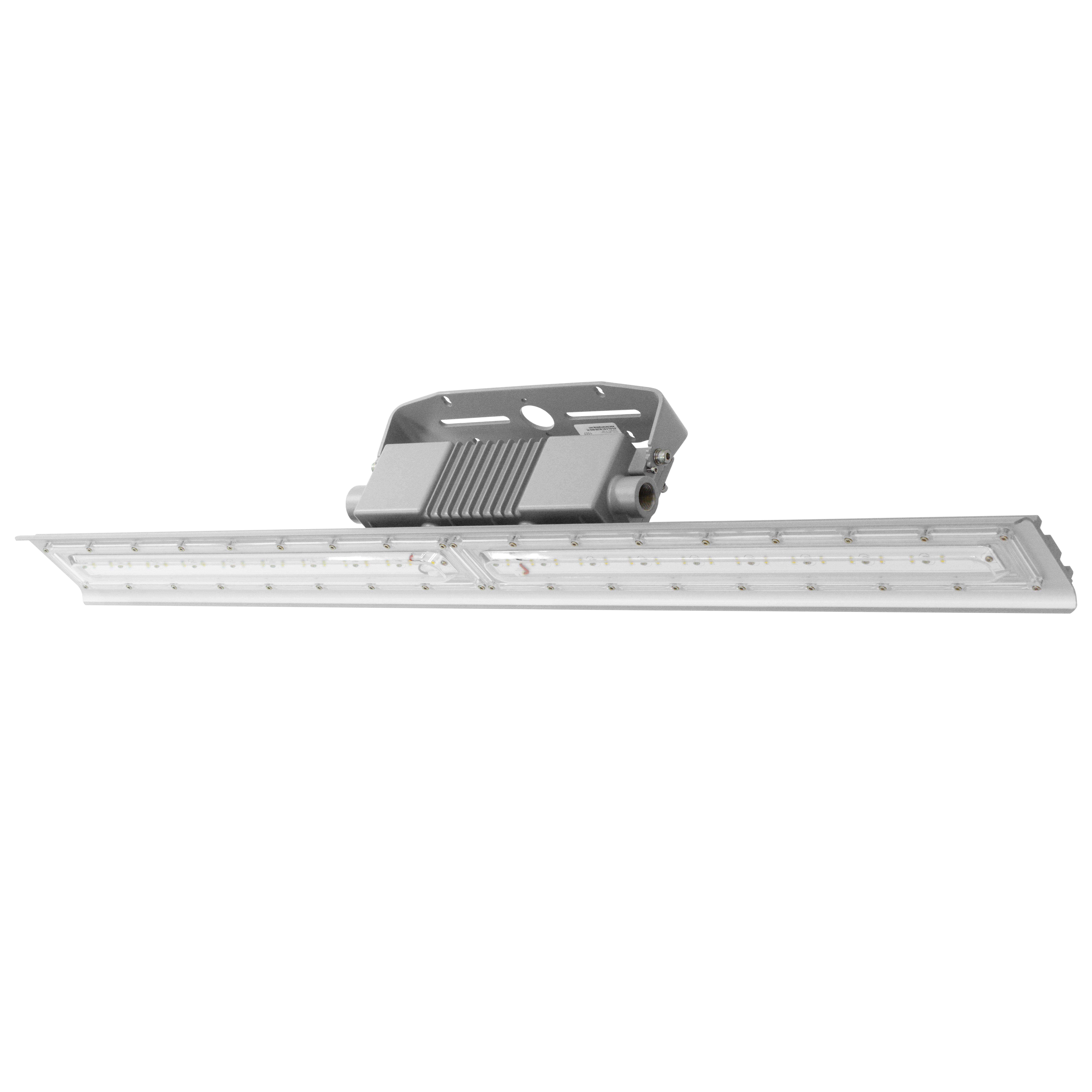

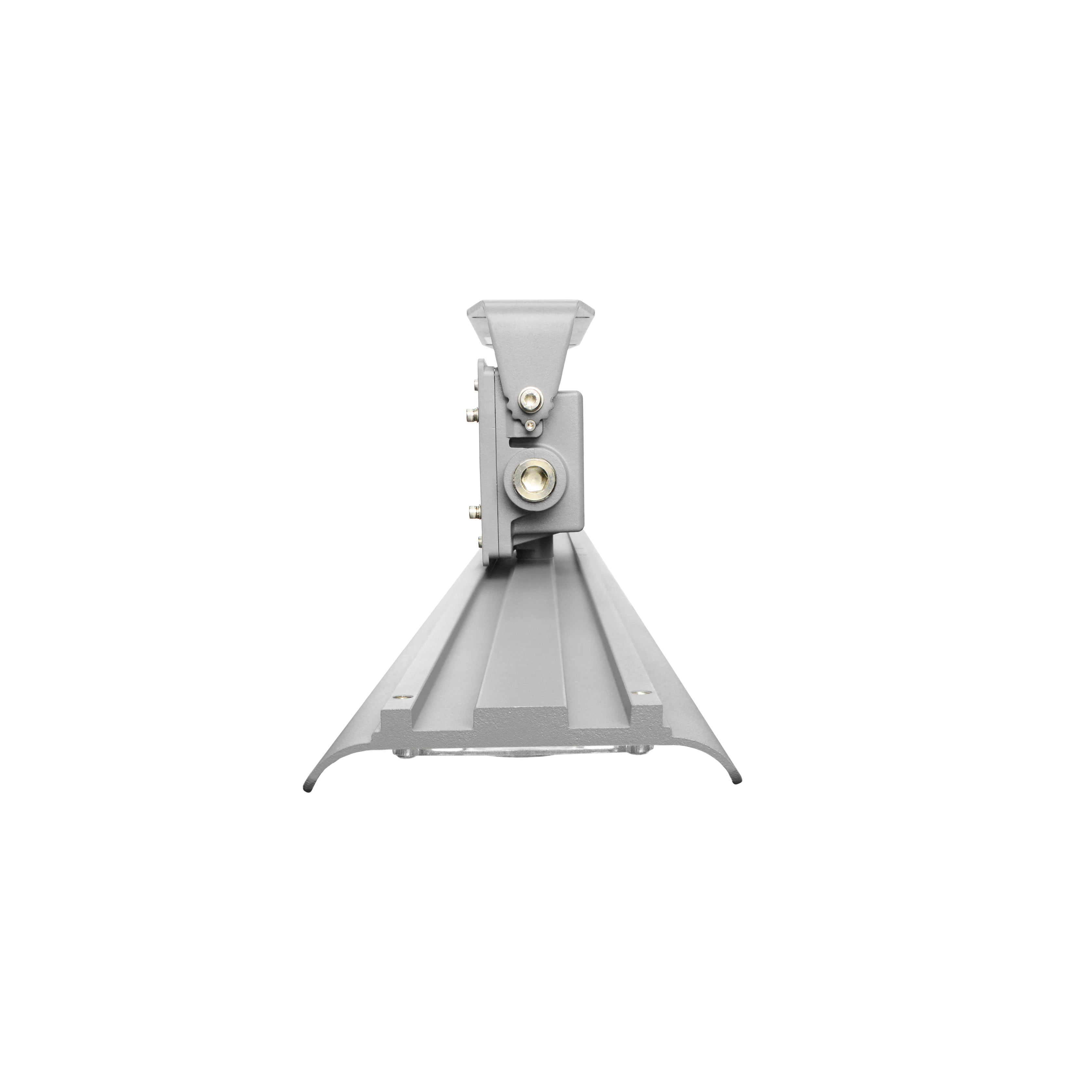

The Intrinsically Safe LED Lightning Horner Hazardous Location Linear (HLL) Series is efficient, powerful, and long-lasting, having been designed, tested, and certified to endure the harshest application situations. The Hazardous Location Linears are built to endure corrosion, excessive vibration, dust, filth, dampness, wind, snow, water, and high ambient temperatures, and they’re even explosion-proof. For areas containing flammable vapors, combustible dust, and gases, Hazardous Location Linears (HLL) is certified (as outlined by NEC standards). The aluminum alloy housing of the HLL is copper-free and corrosion-resistant, saving you time and money on maintenance.

Features:

• Premium, top-tier LEDs
• 5-year warranty backed by U.S. company founded in 1949
• 72,000+ hr lifetime
• Quality driver with integrated 4 kV surge
• -40ºC to 50ºC ambient temperature ensures a long lifetime in a variety of conditions
• Superior LED thermal management ensures a long lifetime
• 80 CRI standard enhances color and clarity
• 110º beam angle standard
• Typical mounting heights of 8’ – 15’
• The output of 10,400 lumens
• Engineered with quality, space-age materials
• Variety of options for surface, conduit, and bracket mounting
• IP66 Dust and Water protection UL wet-rated
• Extensive certifications: UL844; Class I Division 1, Group C, D; Class I Division 2, Group A, B, C, D; Class II Division 1, Group E, F, G; Class III; UL1598A; DLC Premium
• Atmospheric pressure: 12.5 – 15.4 psi
• Optional 277-480VAC
• Reduce downtime and minimize maintenance costs
• Potential for rebate savings through DLC certifications (refer to DLC QPL at www.designlights.org)
• Up to 130 lumens/watts
