Description

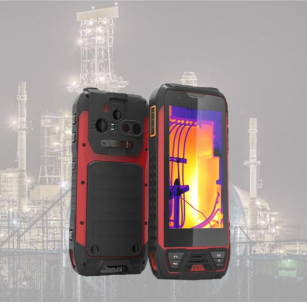

Aegex620TC™ Android Thermal Handset
The Aegex620TC™ is a purpose-built intrinsically safe mobile solution designed for Zone 2 hazardous environments where thermal monitoring is critical. This rugged handset allows oil and gas, chemical, and manufacturing professionals to perform multi-data capture and detect temperature variances between targets and their surroundings safely in volatile atmospheres.
Powered by a MediaTek MT8768 Octa-core processor and running Android 11 (GMS), the Aegex620TC™ delivers smooth performance for enterprise applications. The device features a high-brightness 5″ HD display (500 nits) with a 5-point capacitive touch screen, ensuring clarity and ease of use during outdoor inspections or complex maintenance tasks.
Key Features:
✅ Zone 2 Certification, IECEx, ATEX, ANSI UL (Pending)
✅ Android 11 (GMS)
✅ IP67 Ingress Protection & 1.5m Drop Resistance
✅ Connectivity: 4G LTE, Dual Micro SIM, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, and NFC
✅ Dual Cameras: 13MP Rear with OIS/AF and 5MP Front; Integrated 80 x 60 Thermal Imaging
✅ GPS/Beidou/GLONASS for precise location tracking
✅ 5100mAh Li-ion battery with 8-10 hours of cruising endurance
✅ PTT (Push To Talk) supported with a maximum distance of approximately 5KM
✅ Physical custom buttons including Power, SOS, UD1/UD2, and dedicated Camera/PTT keys
📦 Package Options:
🔹 Standard Model: G60Pro Dual 4G R1.0
🔹 Storage: 64GB Internal, expandable via Micro SD up to 128GB
Aegex620TC™ Technical Specifications:
| Feature | Details |
|---|---|
| Processor | MediaTek MT8768 Octa-core (Up to 2.0GHz) +1 |
| Operating System | Android 11 (GMS) +1 |
| Display | 5" HD TFT (720 x 1280), 500 nits brightness |
| Memory / Storage | 4GB RAM / 64GB ROM (Expandable to 128GB via SDIO 3.0) +1 |
| Thermal Camera | 80 x 60 Pixels; Range: -10°C to 140°C +1 |
| Main Camera | 13MP Rear with OIS and AF; 5MP Front +1 |
| Hazardous Certification | Zone 2, IECEx, ATEX, ANSI UL (Pending) |
| Ruggedness | IP67 Ingress Protection; 1.5m Drop Resistance |
| Battery | 5100mAh Li-ion; 8-10 hours runtime +1 |
| Connectivity | 4G LTE, Dual Micro SIM, Wi-Fi ac, BT 5.0, NFC +1 |
| Weight | 531g |
Certifications & Compliance:
🔗 ATEX/IECEx – Certified for Zone 2 hazardous locations. Pending
🔗 ANSI UL – Pending certification for North American hazardous standards
🔗 MIL-STD-810G – 1.5m drop resistance for extreme durability
🔗 First to buy Aegex Thermal Handset 2026
🔗 Download Datasheet
Applications of Aegex620TC™:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Aegex620TC™ Handset
📦 1x 5100mAh Li-ion Battery
📦 1x USB Cable
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: Contact for availability
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Related Products:
🔗 Aegex10 Rugged Tablet
🔗 Intrinsically Safe Charging Cradle for Aegex620TC
🔗 Spare 5100mAh Battery Pack
FAQs:
What is the range of the thermal camera?
The thermal imager features a scene dynamic range of -10°C to 140°C with an 80 x 60 pixel resolution.
Is the battery user-replaceable?
Yes, the device uses a rechargeable 5100mAh Li-ion battery.
Does it support Push-to-Talk?
Yes, it includes a dedicated PTT button and supports communication up to a 5KM distance.
What is the standard warranty?
The Aegex620TC™ comes with a 3-year warranty.
