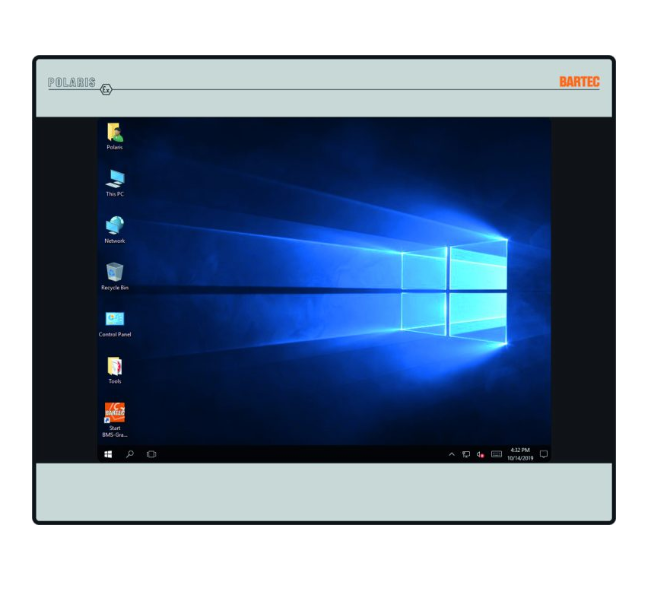

BARTEC POLARIS Professional Panel PC Series

The BARTEC POLARIS Professional series is a state-of-the-art HMI solution engineered for seamless visualization and process control in Zone 1 and Zone 21 hazardous environments. Designed to bridge the gap between plant automation and field safety, this rugged Panel PC allows operators in oil refineries, offshore platforms, and chemical processing facilities to run complex control software directly on-site without needing purged enclosures or safe-area remote terminals.

Powered by an Intel® Atom™ E3845 quad-core processor (4 x 1.91 GHz) and running enterprise-grade Windows 10 IoT, the POLARIS Professional handles intensive industrial applications with exceptional efficiency. High-contrast displays—available in screen sizes from 12.1" W up to 24" W, including sunlight-readable high-brightness options—ensure maximum readability under harsh outdoor lighting. Built-in resistive touchscreen options allow full operation with gloved hands, while intrinsically safe USB and peripheral interfaces provide flexible connectivity for Ex-certified keyboards, mice, and handheld barcode scanners.

Key Features:

✅ ATEX & IECEx Zone 1, 21, 2, and 22 certified (Ex db eb q [ib] IIC T4 Gb / Ex tb IIIC T120°C Db)
✅ Powered by Windows 10 IoT Enterprise (LTSB/LTSC) or Windows 7 Ultimate
✅ Front panel IP65 dust and water ingress protection (IP54 rear)
✅ Ethernet (100/10BaseT or optional LWL), RS422, Ex e USB, and optional Wi-Fi networking
✅ Optional integrated high-contrast resistive touchscreen operable with gloves
✅ Industrial Intel® Atom™ E3845 Quad-Core Processor (4x 1.91 GHz)
✅ High-reliability Power-Protected SSD storage up to 128 GB
✅ Direct connection for Ex i USB memory sticks, Ex i mice, keyboards, and barcode scanners
✅ Front polyester foil on anodized aluminum with durable sheet steel back

BARTEC POLARIS Professional Technical Specifications:

Feature	Details
Product Line	BARTEC POLARIS Professional Series
Hazardous Area Certifications	ATEX / IECEx Zone 1, 21, 2, 22
ATEX Marking	Ex II 2G Ex db eb q [ib] IIC T4 Gb Ex II 2D Ex tb IIIC T120°C Db
IECEx Marking	Ex db eb q [ib] IIC T4 Gb / Ex tb IIIC T120°C Db
Processor	Intel® Atom™ E3845 (Quad-Core, 4 x 1.91 GHz)
Operating System Options	Windows 10 IoT Enterprise LTSB/LTSC (32/64-bit) Windows 7 Ultimate (32-bit)
Storage	128 GB SSD (Standard or Power-Protected)
Display Sizes Available	12.1" W, 15", 15" Sunlight, 17.3" W, 19.1", 24" W
Display Resolution	Up to Full HD (1920 x 1080) depending on screen size
Sunlight Readable Option	15" Model available at 1000 cd/m² brightness
Touchscreen Type	Industrial Resistive Touchscreen (Glove-operable, optional on select sizes)
Ingress Protection (IP Rating)	IP65 (Front Panel) / IP54 (Rear Enclosure)
Power Supply Options	DC 24V ±10% or AC 90 V to 253 V (50–60 Hz)
Power Consumption	< 100 W (variant dependent)
Network Interfaces	1x Ex e Ethernet 100/10BaseT (Optional Fiber Optic LWL), Optional Wi-Fi
Data & Serial Interfaces	1x Ex e USB, 1x Ex USB (for Ex i Memory Stick) 1x Ex e RS422, 2x Ex i PS/2
Peripheral Support	Handheld Barcode Scanners (BCS 3678ex) Intrinsically Safe Keyboard/Mouse
Operating Temperature	0°C to +50°C (Standard) / -20°C to +60°C (15" Sunlight version)
Shock & Vibration Resistance	Shock: 15g / 11ms; Vibration: 0.7g / 5 Hz to 500 Hz
Construction Materials	Front: Polyester foil on anodized aluminum Back: Bichromated sheet steel

Certifications & Compliance:

🔗 ATEX Certificate – Ex II 2G Ex db eb q [ib] IIC T4 Gb

🔗 IECEx Certificate – Ex db eb mb q [ib op pr] IIC T4 Gb

🔗 CSA Certificate – Certificate of Compliance

🔗 Ingress Protection – IP65 front panel protection against dust and high-pressure water jets

🔗 Download Datasheet

Applications of BARTEC POLARIS Professional:

🔹 Oil & Gas (Offshore Rigs, Refineries, Fuel Storage)
🔹 Chemical & Petrochemical Processing Plants
🔹 Mining & Heavy Material Handling
🔹 Pharmaceutical & Cleanroom Laboratories
🔹 Industrial Manufacturing & Distillation Facilities

What’s in the Box?

📦 1x BARTEC POLARIS Professional Panel PC Unit
📦 1x Integrated Power Supply Module (AC or DC per configuration)
📦 1x Front-Panel Fitting Gasket & Mounting Hardware
📦 1x Intrinsically Safe Interface Connection Kit
📦 1x System Recovery & Driver Media
📦 1x Ex-Protection Certificate & Installation Manual
📦 1x Complete Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 15 Weeks (Built to Order)
📍 Shipping Terms: Worldwide / Expedited Freight Options Available
💳 Payment Options: Credit Card, PayPal, Wire Transfer, Net 30 Terms

Related Products:

🔗 BARTEC BCS 3678ex Handheld Barcode Scanner
🔗 BARTEC Intrinsically Safe Ex i Keyboard & Mouse
🔗 BARTEC Stainless Steel Wall/Floor Enclosure System

FAQs:

Can I use a standard USB flash drive with the POLARIS Professional in Zone 1?
No, standard USB drives are not certified for hazardous areas. You must use an intrinsically safe USB Ex i memory stick connected to the dedicated Ex USB port.

Is the screen readable in direct sunlight?
Yes, the POLARIS Professional 15" Sunlight version offers a high-brightness LED backlight (1000 cd/m²) designed specifically for outdoor daylight environments.

What operating systems are supported?
The unit supports Windows 10 IoT Enterprise (LTSB/LTSC) and Windows 7 Ultimate, allowing you to run standard SCADA and visualization software packages.

Can the unit be mounted on a wall or floor stand?
Yes, while standard units feature front-panel panel-mount cutouts, BARTEC offers ready-made system solutions in stainless steel enclosures for wall or floor mounting.
