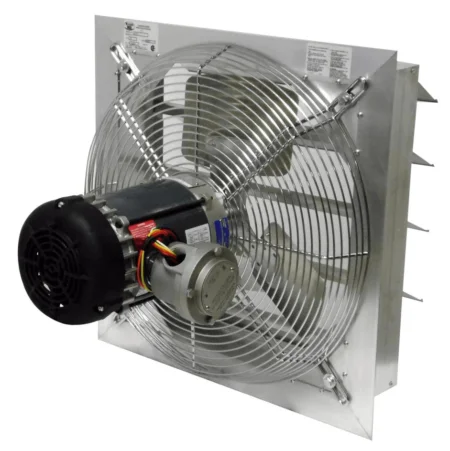

Axial Explosion Proof Fan Canarm AX16-4″ Inch Fan Size
- Class I, Group C
- Class I, Group D
- Class II Group F
- Class II Group G
- 10 Inch Fan Size
- 11″ X 11″ Framing Dimensions
- Single Speed
- 1/3 horsepower
- Totally enclosed, ball-bearing motor with thermal overload protection.
- The fan blades are well-balanced, heavy-gauge aluminum.
- The rugged steel welded box housing has a durable powder-coated finish.

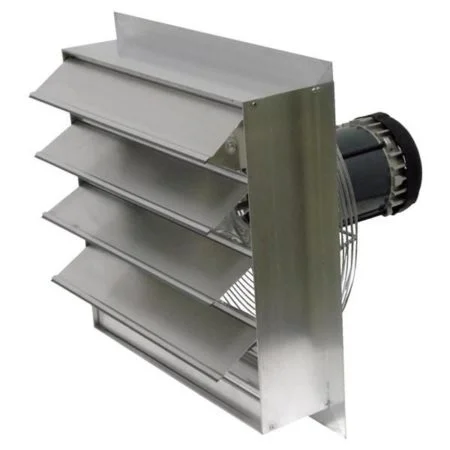

- Aluminum louver shutters are supported by long life nylon bushings.
- Heavy wire chrome plated OSHA guards on the intake side of the fan.
- All fans are shipped completely assembled.
Canarm explosion-proof fans follow a tradition of quality in design, materials, and construction. Using our quality “Standard Fan” housing and motor mount as the basis for design, we have developed an efficient, economically priced explosion-proof fan. All Explosion Proof Fans have a single-speed and dual voltage explosion-proof motor.
Canarm AX16-4″ Inch Fan Size meets all the standards listed below:
- Class I, Group C – Atmospheres containing ethyl ether, ethylene, gases, or vapors of equivalent hazard.
- Class I, Group D – Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gases or vapors of equivalent hazard.
- Class II Group F – Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dust that have more than 8% total entrapped volatiles, or dust that has been sensitized by other materials so that they present an explosion hazard.
- Class II Group G – Atmospheres containing combustible dust not included in group E or F, including flour, grain, wood, plastic, and chemicals.
Dimensions:
| FAN SIZE | A X A SQUARE | B | C | D c/c | E | N |
| 8" | 13 1/4" | 17 1/2" | 4" | 12" | 10 3/4" | 2 |
| 10" | 15 1/4" | 17 1/2" | 4" | 14" | 12 3/4" | 2 |
| 12" | 17 1/4" | 20 1/2" | 6" | 16" | 14 3/4" | 3 |
| 18" | 23 1/4" | 20 1/2" | 6" | 22" | 20 3/4" | 4 |
| 24" | 29 1/4" | 20 1/2" | 6" | 28" | 26 3/4" | 5 |
Specifications:
| MODEL | FAN SIZE | HP | AMPS | RPM | 0" SP | .05" SP | .10" SP | .25" SP | FRAMING | WEIGHT |
| SD08-XPF | 8" | 1/3 | 6.6/3.3 | 1625 | 320 | 280 | 240 | - | 11" X 11" | 38 |
| SD10-XPF | 10" | 1/3 | 6.6/3.3 | 1625 | 620 | 575 | 530 | - | 13" X 13" | 39 |
| SD12-XPF | 12" | 1/3 | 6.6/3.3 | 1625 | 1640 | 1600 | 1540 | 1390 | 15" x 15" | 42 |
| SD18-XPF | 18" | 1/3 | 6.6/3.3 | 1625 | 3200 | 3150 | 3090 | 2920 | 21" x 21" | 60 |
| SD24-XPF | 24" | 1/3 | 6.6/3.3 | 1625 | 5500 | 5400 | 5310 | 5100 | 27" x 27" | 72 |
| Model No.: | AX16-4 |
| Voltage: | 115 / 230 |
| Warehouse: | New York |
| Type: | Explosion Proof |
| Amps: | 6.6 / 3.1-3.3 |
| Blade Material: | Aluminum |
| Blade Size (Inches): | 16 |
| No. of Blades: | 3 |
| CFM High: | 2580 |
| Decibels (dBA): | 68 @ 5ft |
| Dimension Inches: | Width: 20.75" Depth: 18.75" Height: 20.75" |
| Hertz: | 60 |
| Drive Type: | Direct |
| Horsepower: | 3-Jan |
| Limited Warranty: | 1 Year Limited |
| Motor Type: | Explosion Proof |
| RPM High: | 1725 |
| Phase: | 1 |
| Speed(s): | 1 |
| Weight lbs.: | 51 |
NOTE: RPM Min (minimum) is determined when louvers are opened one inch
NOTE: Wind has a significant effect on exhaust fans. A 10 mph wind creates a 0.05” pressure against the fan. A 20 mph wind creates 0.20” pressure and 30 mph a 0.45” pressure. These pressures are in addition to the static pressure in the building. Wind blocks or hoods should be included in all designs where fans will be subjected to winds above 10 mph.
