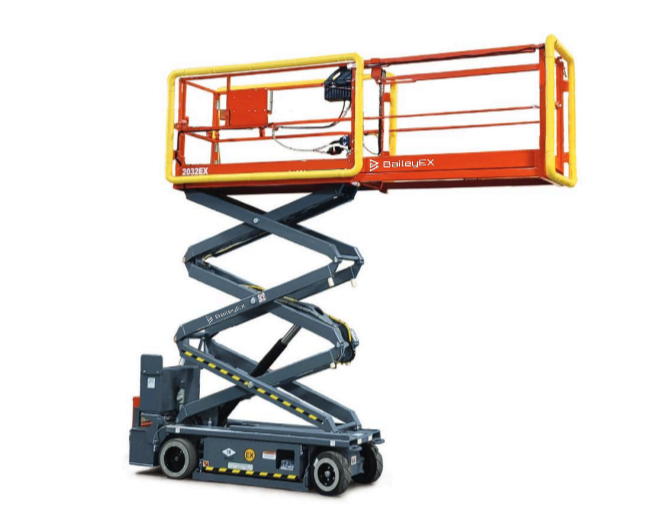

The BaileyEX 2032EX Explosion Proof Scissor Lift 6-Foot Powered Extension Deck provides elevated outreach and safety for Class I, Division 1 hazardous environments. Featuring a 26 ft working height and an extended powered deck, it delivers mobile access for demanding oil, gas, and chemical facility maintenance
| Country of Origin | United States (US) |
| Hazardous Area Rating | Type EX Class I, Division 1, Groups D, T4 Ta = -20°C to +40°C |
The BaileyEX 2032EX Explosion Proof Scissor Lift 6-Foot Powered Extension Deck Model is engineered specifically for hazardous locations where flammable gases or vapors are present. Certified for Class I, Division 1, Group D environments and fully compliant with UL 583 Type EX standards, this heavy-duty lift ensures uncompromising safety in critical industrial applications.
Delivering a 26 ft working height, this model features an integrated 6-foot powered extension deck to maximize reach over obstacles and elevated machinery. With smooth battery-powered operation, proportional drive controls, and full ANSI/CSA compliance, the 2032EX provides precise maneuvering and dependable performance for hazardous area operations.
✅ Certified Class I, Division 1, Group D & UL 583 Type EX Compliant
✅ Integrated 6-Foot Powered Extension Deck for Max Reach
✅ 26 ft Working Height / 20 ft Raised Platform Height
✅ 900 lb Base Platform Capacity (300 lb Extendable Deck Capacity)
✅ Proportional Drive Controls & Battery Condition Indicator
✅ 4 x 6V 250 Amp-hr Battery System with 20 Amp Automatic SCR Charger
✅ ANSI A92.20 & CSA B354.6 Compliant
✅ Full Height Swing Gate & Integrated Movement Alarm
✅ Compact 32 in Overall Width for Narrow Aisle Access
🔹 BaileyEX 2032EX with 6-Foot Powered Extension Deck
🔹 Optional Accessories: Padded Aircraft Rails, Explosion-Proof Work Lights, and 1/2" Airline to Platform
🔹 Custom Configurations: Available upon request to meet site-specific safety specs
| Feature | Details |
|---|---|
| Model | BaileyEX 2032EX Explosion Proof Scissor Lift |
| Hazardous Area Rating | Class I, Division 1, Group D |
| Safety Standards | UL 583 Type EX, ANSI A92.20, CSA B354.6 |
| Working Height | 26 ft (7.9 m) |
| Raised Platform Height | 20 ft (6.1 m) |
| Lowered Platform Height | 45 in (1.1 m) |
| Standard Platform Size (Inside) | 28 x 84 in (0.7 x 2.1 m) |
| Deck Extension Option | 6 ft Powered Extension Deck |
| Platform Capacity | 900 lbs (408 kg) base capacity |
| Extendable Deck Capacity | 300 lbs (136 kg) |
| Overall Width | 32 in (0.8 m) |
| Overall Length | 108 in (2.75 m) |
| Stowed Height | 81.5 in (2.1 m) |
| Ground Clearance (Stowed) | 3.5 in (8.9 cm) |
| Ground Clearance (Raised) | 0.75 in (1.9 cm) |
| Wheelbase | 69 in (1.8 m) |
| Turning Radius (Inside / Outside) | 50 in / 108 in (2.4 m) |
| Drive Speed (Stowed / Raised) | 1 mph (1.6 km/h) / 0.5 mph (0.8 km/h) |
| Battery System | 4 x 6V 250 Amp-hr |
| Charger | 20 Amp Automatic SCR |
🔗 Class I, Division 1, Group D – Certified for environments containing hazardous flammable gases or vapors
🔗 FM Certification – Full compliance for explosion-proof electric industrial trucks
🔗 ANSI A92.20 & CSA B354.6 – Meets mobile elevating work platform standards
🔗 ISO 9001:2015 – Manufactured in a certified quality management facility
🔗 Download Datasheet
🔹 Oil & Gas Facilities
🔹 Chemical Processing Plants
🔹 Mining Operations
🔹 Industrial Laboratories
🔹 Manufacturing Facilities
📦 1x BaileyEX 2032EX Explosion Proof Scissor Lift with 6-Foot Powered Extension Deck
📦 4x 6V 250 Amp-hr Industrial Batteries
📦 1x 20 Amp Automatic SCR Battery Charger
📦 1x Safety Rail Assembly with Full Height Swing Gate
📦 1x Documentation Kit (Operations & Compliance Manuals)
📦 Lead Time: 10 - 12 weeks
📍 Shipping Terms: Worldwide / Freight Options Available
💳 Payment Options: Credit Card, Wire Transfer, Net 30 Terms
🔗 BaileyEX Explosion Proof Aerial Lifts
🔗 Class 1 Division 1 Explosion Proof Work Lights
🔗 Hazardous Location Material Handling Equipment
Is the 6-foot extension deck powered on this model?
Yes, the BaileyEX 2032EX with 6-Foot Powered Extension Deck includes motorized deck expansion for easy positioning over elevated obstacles.
What safety certifications does this scissor lift carry?
It is certified Class I, Division 1, Group D, fully compliant with UL 583 Type EX standards, and meets ANSI A92.20 & CSA B354.6 guidelines.
What is the weight capacity of the 6-foot extended deck portion?
The 6 ft extendable deck carries a dedicated capacity rating of 300 lbs
What battery system powers the lift and extension deck?
The machine runs on four 6V 250 Amp-hr batteries and includes an automatic 20 Amp SCR charger.
