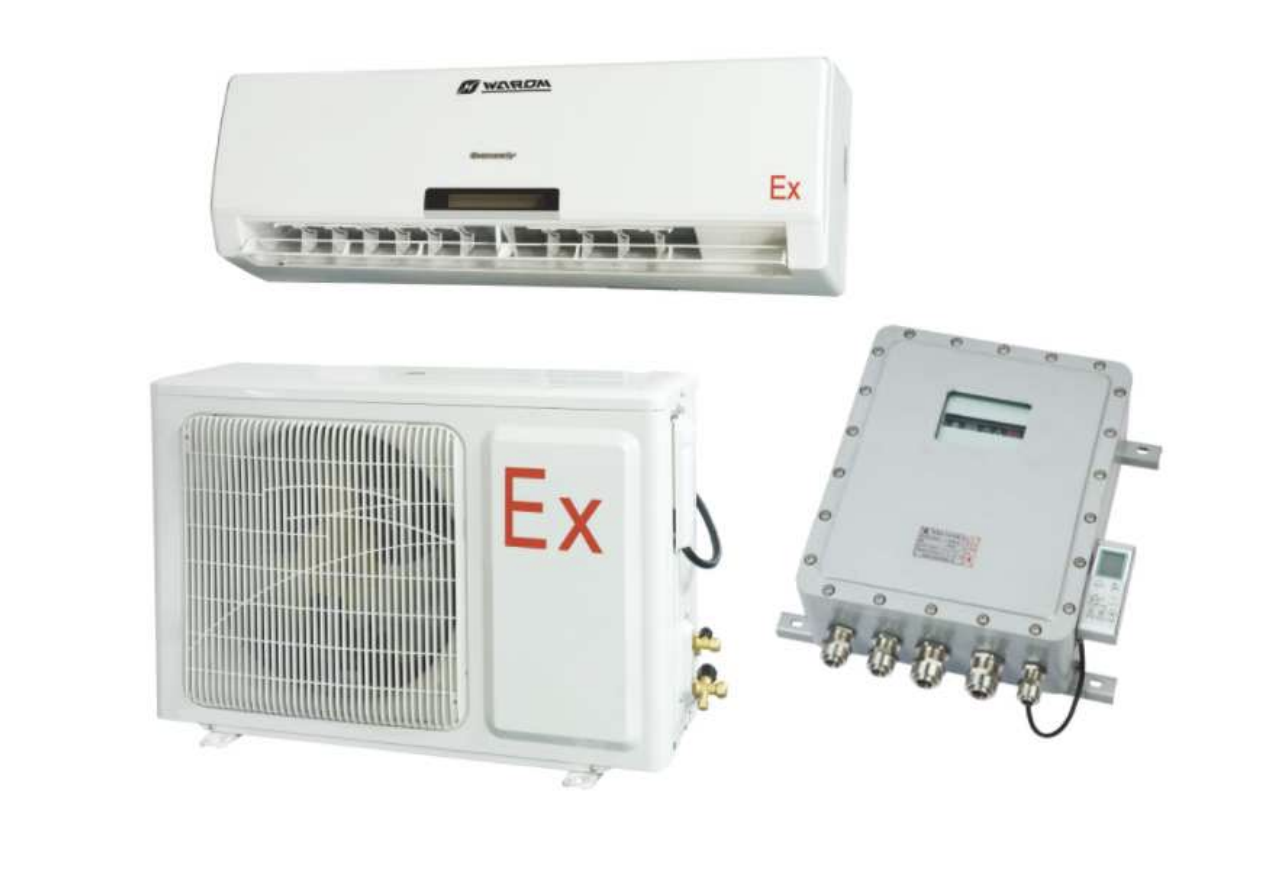

BKF IIB Explosion Proof Air Conditioner R410A – 24,000 BTU

The BKF IIB Explosion Proof Air Conditioner (24,000 BTU) is a high-capacity, wall-mounted cooling solution engineered for hazardous areas where flammable gases may be present. Designed for ATEX and IECEx Zone 2 (IIB) environments, it provides reliable and safe temperature control in demanding industrial locations such as oil & gas facilities, chemical plants, and manufacturing areas.

This 24,000 BTU model is built to handle medium to large spaces, delivering powerful cooling performance while maintaining strict explosion-proof protection. The system integrates certified explosion-proof components, including compressor, fan motors, control stations, and intrinsically safe control and sensor systems, ensuring continuous operation even in high-risk environments.

Key Features:

✅ ATEX & IECEx certified for hazardous areas (Zone 2 – IIB)
✅ High cooling capacity: 24,000 BTU (7,066 W)
✅ Explosion-proof indoor and outdoor units with certified components
✅ R410A refrigerant for efficient and stable cooling performance
✅ Wall-mounted design for industrial and technical rooms
✅ Ambient temperature range from -7°C to +52°C (depending on configuration)
✅ Dedicated explosion-proof control box with intrinsically safe circuits
✅ Designed for continuous operation in harsh industrial environments

BKF IIB 24,000 BTU Technical Specifications:

Feature	Details
Cooling Capacity	24,000 BTU (7,066 W)
Refrigerant	R410A
Rated Voltage / Frequency	220 V / 50 Hz
Cooling Input Power	3,100 W
Cooling Current	14.9 A
Recommended Area Coverage	29–48 m²
Indoor Sound Level	44 dB
Outdoor Sound Level	55 dB
Indoor Unit Dimensions	1100 × 358 × 294 mm
Outdoor Unit Dimensions	910 × 690 × 390 mm
Control Box Dimensions	420 × 350 × 178 mm
Indoor Unit Weight	25 kg
Outdoor Unit Weight	65 kg
Control Box Weight	21 kg
Mounting Type	Wall-mounted
Hazardous Area Certification	ATEX & IECEx Zone 2 (IIB)

Certifications & Compliance:

🔗 ATEX Certification – Explosion-proof design for Zone 2 hazardous areas (IIB)
🔗 IECEx Certification – International compliance for explosive atmospheres
🔗 Ex d / Ex nC / Ex ib protection concepts across system components
🔗 Designed for safe operation in gas hazardous environments
🔗 Download Datasheet

Applications:

🔹 Oil & Gas Facilities
🔹 Chemical Processing Plants
🔹 Refineries
🔹 Industrial Control Rooms
🔹 Manufacturing & Utilities

What’s in the Box?

📦 1x Explosion Proof Indoor Air Conditioning Unit
📦 1x Explosion Proof Outdoor Unit
📦 1x Explosion Proof Control Box
📦 1x Installation & Documentation Kit

Ordering & Shipping Details

📦 Lead Time: Typically 8–12 weeks (subject to configuration)
📍 Shipping Terms: Worldwide shipping available
💳 Payment Options: Credit Card, PayPal, Net 30 (approved accounts)

FAQs:

Is this air conditioner suitable for Zone 1?
This model is certified for Zone 2 (IIB). Please contact our team if Zone 1 certification is required.

What size area can the 24,000 BTU model cool?
It is suitable for areas approximately 29–48 m², depending on heat load and site conditions.

Does it include an explosion-proof control system?
Yes, the system includes a dedicated explosion-proof control box with intrinsically safe circuits.

Can this unit operate in high ambient temperatures?
Yes, selected configurations support ambient temperatures up to +52°C.
