Safety specifications not available for this product

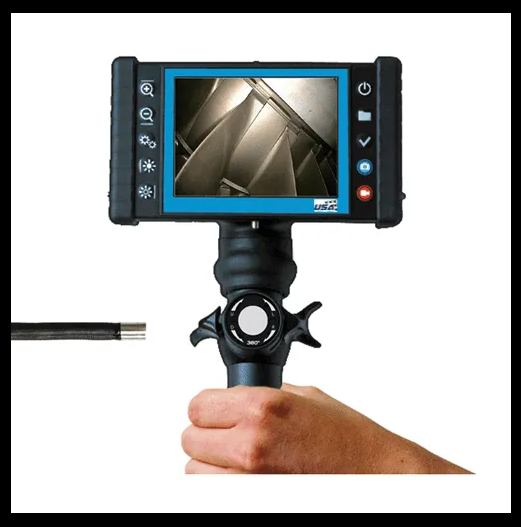

The USA Borescopes system is a rugged, intrinsically safe visual testing tool certified for ATEX and UL Class 1 Division 2 hazardous areas. Designed for oil and gas professionals, it features a 5-inch TFT color display and 4-way articulation to deliver high-resolution diagnostics in explosive areas.
| Country of Origin | United States (US) |
The USA Borescopes unit is a professional-grade, intrinsically safe visual inspection system specifically engineered for high-risk environments like oil refineries, chemical plants, and fuel storage facilities. This ruggedized borescope allows technicians to perform critical internal inspections without compromising safety in areas where explosive gases or vapors may be present.
Built for precision and durability, the system features a 5-inch VGA color display and a high-power white light LED illumination system for crystal-clear imaging. Its advanced image sensor and 4-way articulation allow for comprehensive viewing angles, while the tungsten braided probe ensures the device survives the toughest industrial conditions.
✅ UL Class 1 Division 2, ATEX, and MIL-STD 810G certified
✅ Real-time operating system with multi-language on-screen menu
✅ IP53 Ingress Protection against dust and water spray
✅ Composite Video-out interface for external monitoring
✅ Advanced image sensor with 3.5x digital zoom
✅ Integrated high-power white light LEDs with fiber optic guides
✅ Changeable Li-Ion battery with provided charger
✅ 4-way articulation with up to 160° bending angle
✅ Supports SD-HC memory cards up to 32GB for image/video storage
🔹 Standard Kit: 4.0mm diameter probe with 1.5m - 3.0m working length
🔹 Extended Kit: 6.0mm diameter probe with working lengths up to 7.5m
🔹 Side-View Kit: Integrated 90° FOV objective lens for lateral inspections
| Feature | Details |
|---|---|
| Display | 5" TFT Colour VGA (640x480 Pixel) |
| Certifications | ATEX, UL C1D2, MIL-STD 810G, NFPA 70 |
| Probe Diameter | 4.0mm or 6.0mm |
| Working Length | 4.9ft to 24.6ft (1.5m to 7.5m) |
| Articulation | 4-way Control Levers |
| Image Sensor | Advanced Image Sensor with 3.5x Digital Zoom |
| Illumination | High-Power White Light LEDs (6500k) |
| Storage | SD-HC Card up to 32GB (AVI and BMP formats) |
| Battery | Changeable Li-Ion Battery |
| Protection Class | IP53 |
| Operating Temp | -13°F to 115°F (-25°C to +45°C) |
| Country of Origin | United States |
🔗 USA-XP Videoscope iRis Users Manual (1)
🔗 ATEX Certified – Compliance for explosive atmospheres (ITVS17ATEX9828X)
🔗 MIL STD 810G – Military-grade durability and explosion-proof testing (Method 511.6)
🔗 IP53 – Protection against dust deposits and spraying water
🔗 Borescope UL Certificate
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
📦 1x Borescope USA Operating Unit
📦 1x Changeable Li-Ion Battery
📦 1x Battery Charger
📦 1x SD-HC Memory Card
📦 1x Integrated Probe (specified diameter/length)
📦 1x Documentation Kit
📦 Lead Time: 3 - 4 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
🔗 Intrinsically Safe Digital Cameras
🔗 ATEX Certified Flashlights
🔗 Hazardous Area Tablets
Is this device safe for use in explosive gas environments?
Yes, it is UL Class 1 Division 2 and ATEX certified specifically for hazardous locations.
What is the maximum storage capacity for recordings?
The system supports SD-HC memory cards up to 32GB using the FAT32 format.
Can I adjust the lighting if the environment is too reflective?
Yes, the illumination has a 3-step control, and the integration modes can be set to manual or automatic.
What material is the probe made of?
The probe features a rugged Tungsten braid over a PU-Jacket for maximum wear resistance.
