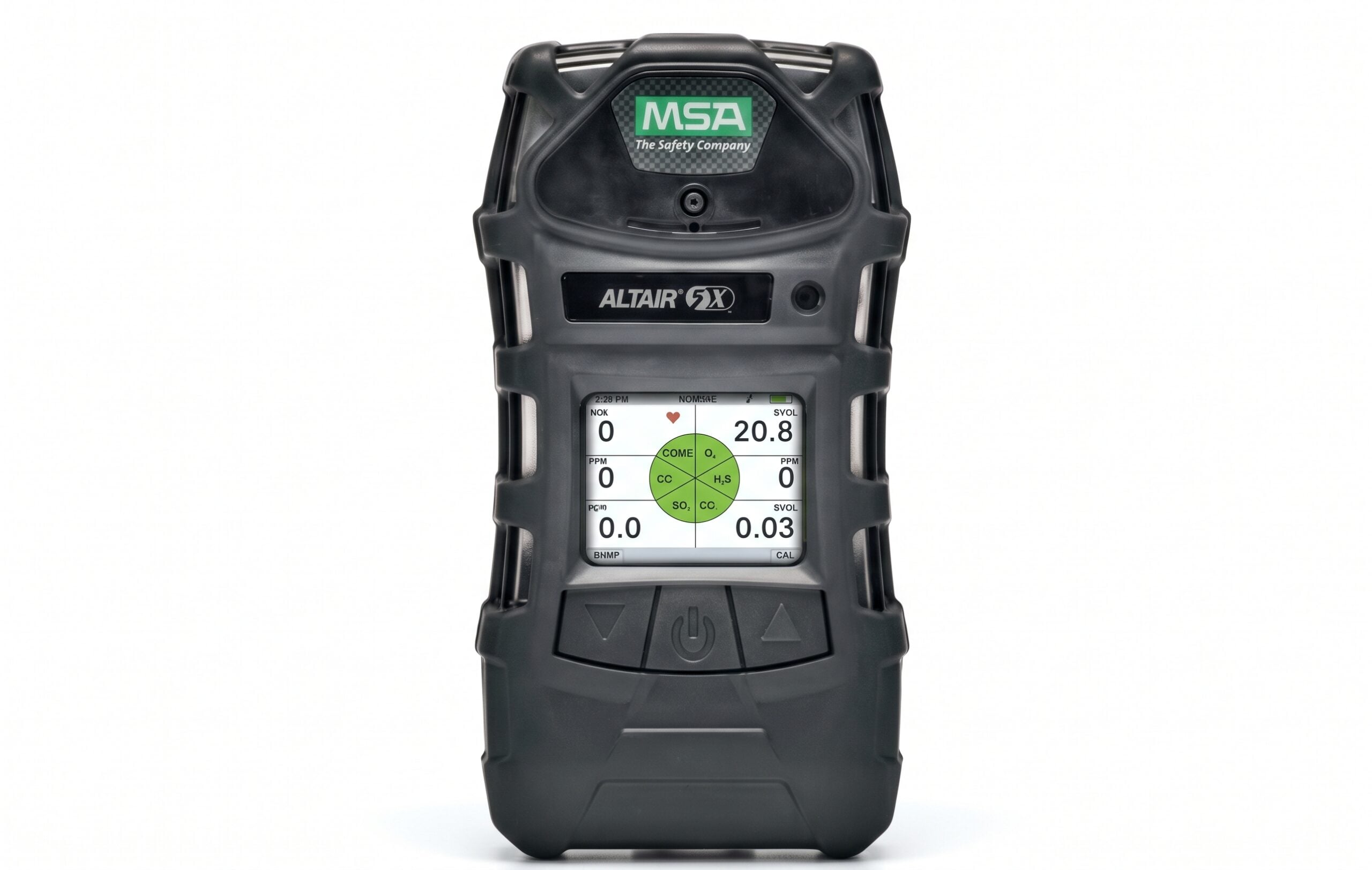

MSA ALTAIR® 5X Multigas Detector

The MSA ALTAIR® 5X is an industry-leading, portable multigas detector designed to deliver maximum safety and performance in hazardous, volatile environments such as oil and gas facilities, chemical processing plants, and mining operations. Powered by advanced MSA XCell® sensor technology and featuring an integral non-detachable sampling pump, the ALTAIR 5X enables simultaneous monitoring of up to six gases. It provides rapid response times and exceptional durability to keep workers protected in Class I, Division 1 and Zone 0/1 hazardous locations.

Engineered for seamless field operation, the ALTAIR 5X features a high-contrast liquid crystal display (LCD) available in color or monochrome options, easily readable even in direct sunlight. Its intuitive 3-button interface is specifically designed for effortless navigation while wearing heavy work gloves, and the rugged rubberized armor protects the device against severe drops and harsh weather conditions. Equipped with an efficient rechargeable Li-ion battery providing at least 20 hours of continuous runtime, standard MotionAlert™ man-down detection, and InstantAlert™ manual alarm activation, this device ensures uninterrupted performance and immediate worker safety in low-light and high-risk field scenarios.

Key Features:

✅ Class I, Div 1 (Groups A-D), ATEX Zone 1/Zone 0, IECEx, and MSHA Certified
✅ Advanced MSA XCell® & PID/IR sensor compatibility with user-adjustable calibration/time settings
✅ IP65-rated rubberized armor casing for extreme dust and water protection
✅ Infrared (IR) PC connectivity for non-intrusive data logging access
✅ High-contrast LCD screen with white backlight and large icons
✅ Password-protected instrument settings and safe Fresh Air Setup (FAS) lockout
✅ Rechargeable Li-ion battery delivering up to 20 hours of runtime (alkaline option available)
✅ Integrated MotionAlert™ (man-down alarm) and InstantAlert™ safety capabilities
✅ Easy 3-button glove-friendly operation with non-detachable integral pump

📦 Package Options:

🔹 Standard Pumped Version: Integrated sampling pump up to 75 ft draw with XCell® multi-gas sensing
🔹 IR Sensor Configuration: Equipped with Infrared sensor technology for CO2/Combustible gas detection
🔹 PID Sensor Configuration: Includes Photoionization Detector for VOC monitoring with high-resolution color display
🔹 Mono/Color Display Versions: Choose monochrome or high-contrast color LCD depending on operational requirements

MSA ALTAIR® 5X Technical Specifications:

Feature	Details
Product Name	MSA ALTAIR® 5X Multigas Detector
Gas Sensing Options	LEL, O2, CO, H2S, SO2, NO2, Cl2, NH3, ClO2 PH3, HCN, CO2, CH4, C4H10, C3H8, VOC (PID)
Sampling System	Built-in non-detachable integral pump capable of sampling up to 75 ft (22.86 m) at 0.3 lpm
Dimensions	6.68" L x 3.52" W x 1.95" H (Standard pumped unit without IR)
Weight	1 lb (453 g) standard / 1.15 lbs (680 g) IR version
Enclosure / Protection	Rugged rubberized armor, minimum IP65 rating for water & dust ingress
Display	High-contrast LCD (1.79" x 1.39") with white backlight monochrome or color options
User Interface	3 glove-friendly pushbuttons; anti-inadvertent shutoff protection
Alarms	Visual LEDs (top/bottom), Audible (>95 dB) Vibrating, MotionAlert™, InstantAlert™, Lockalarm™
Battery Type	Rechargeable Lithium-ion battery (Alkaline battery pack option available for non-IR/PID)
Run Time	20+ hours (Standard), 18 hours (5XM), 17 hours (IR) 13 hours (PID) at room temperature
Data Logging	Minimum 200 hours at 1-minute intervals records 1000+ events; IR transfer to PC
Operating Temperature	Normal: 0°C to +40°C; Extended: -20°C to +50°C Short period: -40°C to +50°C
Class I, Div 1 Certification	USA/UL & Canada CSA: Class I, Div 1, Groups A, B, C, D (T4)
ATEX Certification	II 2G Ex d ia mb IIC Gb IP65 (Zone 1) / II 1G Ex ia IIC Ga IP65 (Zone 0)
IECEx Certification	Ex ia mb d IIC IP65 (Zone 1) / Ex ia IIC IP65 (Zone 0)
Sensor Expected Life	4 years for LEL, O2, CO, H2S, NO2, SO2 XCell & IR sensors 3 years for NH3 & Cl2
Warranty	3-year back-to-back warranty on instrument & primary XCell/IR sensors

Certifications & Compliance:

🔗 UL Certification Class I, Div 1, Groups A, B, C, D; Class II, Div 1, Groups E, F, G; Class III, Div 1 (T4)
🔗ATEX Certificate II 2G Ex d ia mb IIC Gb / II 1G Ex ia IIC Ga IP65 (Zone 1 / Zone 0)
🔗 IECEx: Ex ia mb d IIC IP65 / Ex ia IIC IP65
🔗 Ingress Protection: IP65 rating against dust and water entry
🔗 Download Datasheet

Applications of MSA ALTAIR® 5X:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x ALTAIR® 5X Multigas Detector
📦 1x Rechargeable Lithium-ion Battery Pack
📦 1x Charging Cradle & Power Supply
📦 1x Integrated Sampling Pump & Tubing
📦 1x Rugged Rubberized Protective Armor Casing
📦 1x Calibration Cap/Adapter Kit
📦 1x Documentation Kit & CD Manual

Ordering & Shipping Details

📦 Lead Time: 2 - 3 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 MSA ALTAIR 4XR Multigas Detector
🔗 MSA GALAXY GX2 Automated Test System
🔗 MSA ALTAIR Pump Probe

FAQs:

What is the maximum sample draw distance for the ALTAIR 5X internal pump?
The integrated sampling pump can draw gas samples up to 75 feet (22.86 m) at 0.3 lpm for standard versions.

How long does the battery last on a full charge?
The rechargeable Li-ion battery provides at least 20 hours of continuous runtime at room temperature (17 hours for IR version, 13 hours for PID version).

What safety alarms are included on the device?
The ALTAIR 5X includes bright top/bottom LEDs, a >95 dB audible alarm, a strong vibrating alarm, MotionAlert™ (man-down alarm), and InstantAlert™ (manual emergency activation).

What warranty comes with the detector and sensors?
It comes with a standard 3-year back-to-back warranty on the instrument and key XCell sensors (CO/H2S/LEL/O2/SO2/NO2), with 2-year coverage on NH3 and Cl2 sensors.
