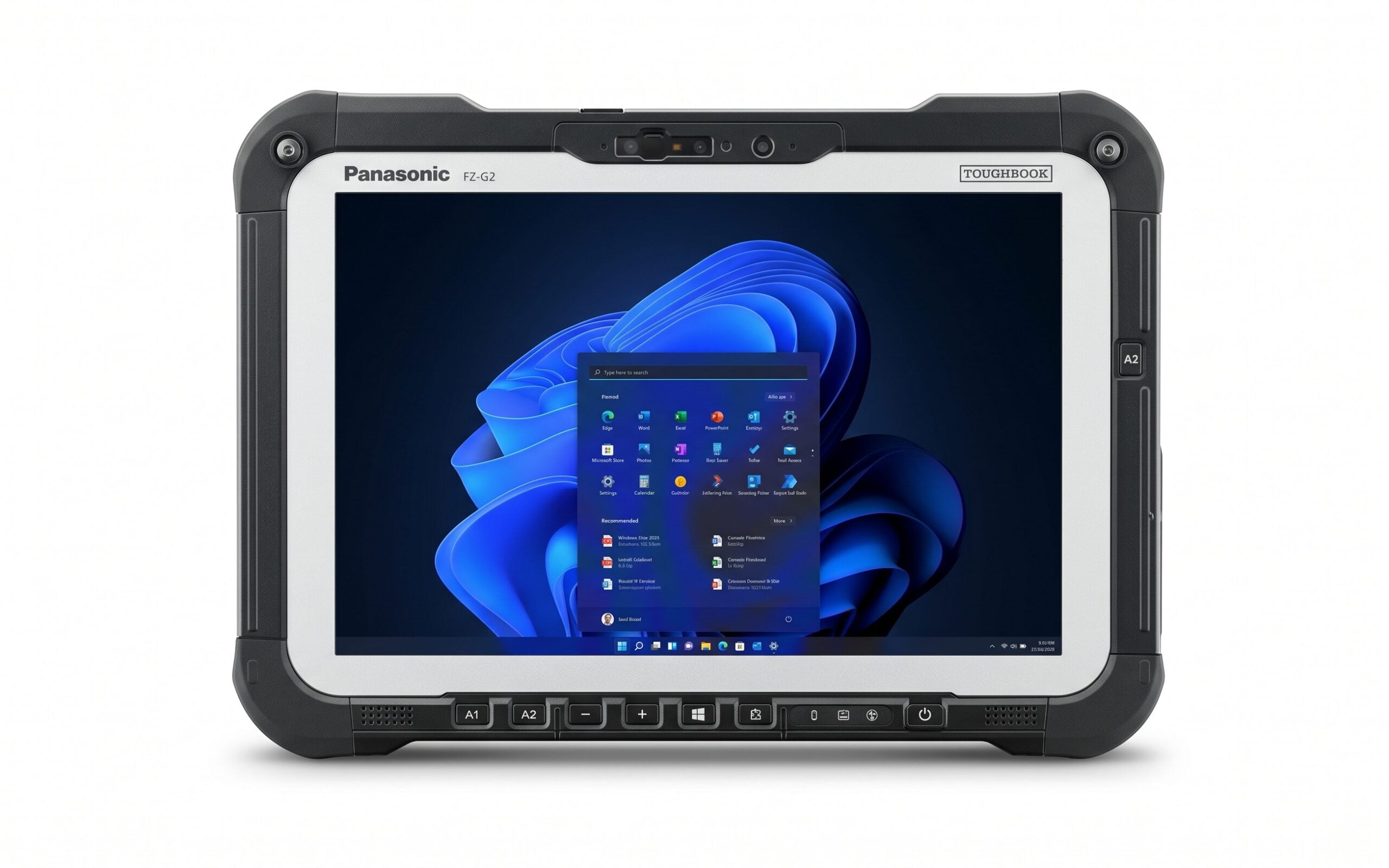

Panasonic TOUGHBOOK G2

The Panasonic C1D2 TOUGHBOOK G2 mk3 Ultra5 is a highly versatile 10.1-inch fully rugged tablet engineered specifically for critical operations in hazardous industrial settings, including Class 1 Division 2 (C1D2) environments. Built to withstand extreme drops, moisture, dust, and explosive atmospheres, this device ensures uninterrupted performance for field engineers, technicians, and operators in oil & gas, chemical, and manufacturing sectors.

Powered by Windows 11 Pro and the AI-enabled Intel® Core™ Ultra 5 vPro® processor, the TOUGHBOOK G2 delivers exceptional field computing performance. It features a glove-compatible 1000-nit sunlight-viewable touchscreen with five touch modes, high-speed 5G wireless connectivity, an optional bridge battery for hot-swapping, and a modular 2-in-1 design that seamlessly transforms into a full desktop/laptop experience.

Let us know your needs by completing a  Product Selection & Hazard Assessment Form

Key Features:

✅ Class 1 Division 2 (C1D2) Groups A, B, C, D hazardous location certified
✅ Windows 11 Pro operating system (Red Hat Enterprise Linux 9.4 & 10 option)
✅ MIL-STD-810H, MIL-STD-461G, IP65 water/dust resistance, and 6-foot drop rating
✅ Wi-Fi 6E, Bluetooth v5.3, optional 5G Sub6/C-Band, 4G LTE, and dedicated u-blox GPS
✅ 2MP front camera with Windows Hello IR and 13MP rear camera with triple LED flash
✅ Advanced hardware security including TPM 2.0, Intel Hardware Shield, and Secured-core PC
✅ Up to 14.5 hours of battery life with optional bridge battery hot-swap support
✅ Windows Hello biometric user authentication and optional fingerprint/Smart Card readers
✅ User-definable custom physical buttons, expansion xPAK options, and quick-release SSD

📦 Package Options:

🔹 32 GB RAM - 512GB OPAL SSD
🔹 32 GB RAM - 1 TB OPAL SSD
🔹 32 GB RAM - 2 TB OPAL SSD

Panasonic TOUGHBOOK G2 Technical Specifications:

Feature	Details
Product Name	Panasonic TOUGHBOOK G2 (mk3)
Operating System	Windows 11 Pro (Red Hat Enterprise Linux 9.4 & 10 optional)
Processor (CPU)	Intel® Core™ Ultra 5 vPro® processor 135U (12-core, up to 4.4GHz, 1.4GHz AI Boost NPU)
RAM	16GB or 32GB LPDDR5x (7467MHz)
Storage	512GB, 1TB, or 2TB Quick-Release OPAL NVMe SSD with heater
Display	10.1" WUXGA (1920x1200), 2-1000 NIT gloved capacitive multi-touch + digitizer, anti-reflective
Hazardous Location Rating	Class 1 Division 2 (C1D2) Groups A, B, C, D
Rugged Standards	MIL-STD-810H, MIL-STD-461G, IP65 ingress protection, 6-foot drop rating
Touch Modes	5 modes: Rain, Glove, Touch, Pen, Pen/Touch
Cameras	Front: 2MP (1080p) IR with Windows Hello & privacy cover Rear: 13MP autofocus with triple LED flash
Wireless Connectivity	Wi-Fi 6E (Intel AX211), Bluetooth 5.3 optional 5G (Sub6/C-Band up to 4.1Gbps) or 4G LTE
GPS	Optional dedicated u-blox NEO-M9N GPS
Interfaces (Tablet Base)	USB-C Thunderbolt 4, USB-A 5Gbps 1Gbps Ethernet RJ-45, Dual SIM (Nano + eSIM)
Expansion Areas (xPAK)	Top Expansion: Barcode, 2nd USB-A, 2nd LAN, True Serial, MicroSDXC Rear: Smart Card, Contactless Smart Card, Fingerprint
Battery Life & Power	Up to 14.5 hours (10.8V, 6600mAh Li-Ion) optional 1-min bridge battery for hot-swap
Security	TPM 2.0, Intel Hardware Shield, Secured-core PC Kensington Cable Lock Slots, optional Smart Card / Fingerprint
Dimensions & Weight	11.0" x 7.4" x 1.1" / 2.9 lbs. (Tablet only)
Warranty	3-Year Limited Warranty (Parts & Labor)

Certifications & Compliance:

🔗 C1D2 (Class 1 Div 2) Groups ABCD – Safe operation in hazardous explosive locations
🔗 MIL-STD-810H – Tested for 6' drops, shock, vibration, thermal extremes, and fluid contamination
🔗 MIL-STD-461G – Electromagnetic compatibility testing for defense and industrial environments
🔗TAA Compliance: Approved for government and federal procurement.
🔗Download Datasheet

Applications of Panasonic TOUGHBOOK G2:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x Panasonic TOUGHBOOK G2 Tablet
📦 1x Li-Ion Battery (10.8V, 6600mAh)
📦 1x AC Adapter Charger
📦 1x USB Cable
📦 1x IP55 2-Button Digitizer Stylus Pen
📦 1x Integrated Protective Bumper Cover / Case
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 4 - 6 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

Related Products:

🔗 Panasonic TOUGHBOOK 33
🔗 Panasonic TOUGHBOOK 34

FAQs:

Is the Panasonic TOUGHBOOK G2 certified for hazardous locations?
Yes, it is certified to a Class 1 Division 2 (C1D2) Groups A, B, C, D rating for safe operation in hazardous areas.

Can I swap the battery while the device is turned on?
Yes, with the optional bridge battery installed, the primary battery can be hot-swapped in under 1 minute without powering down.

Can the screen be used with gloves or in rainy conditions?
Yes, the display supports 5 touch modes: glove, rain, touch, pen, and pen/touch.

Is the TOUGHBOOK G2 backward compatible with existing G1 docks?
Yes, it retains backward compatibility with most Panasonic CF-20 and FZ-G1 vehicle and desktop docks.
