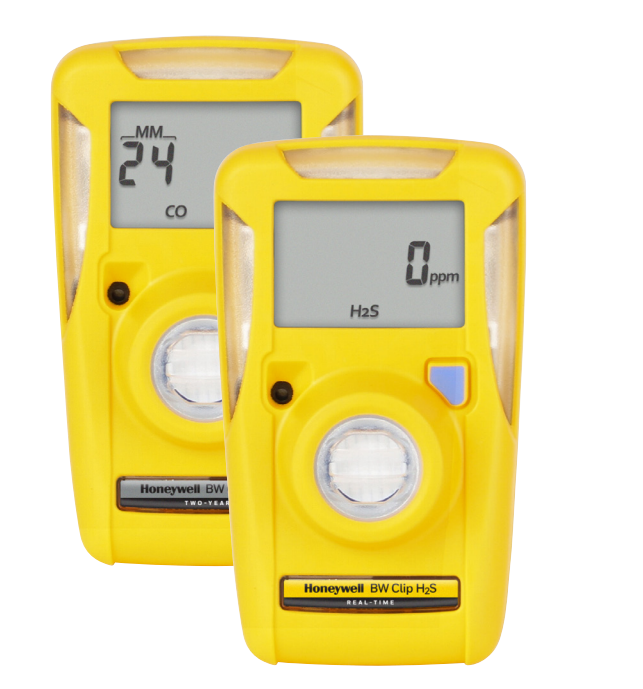

The Honeywell BW Clip Series provides up to three years of maintenance-free single-gas detection (H_2S, CO, O_2, SO_2) engineered specifically for extreme, hazardous oil and gas environments. Certified Class 1 Div 1 and ATEX/IECEx Zone 0, this lightweight, IP66/67 rated detector ensures hassle-free compliance and continuous monitoring with zero calibration or battery replacements required.
| Country of Origin | Mexico (MX) |
| ATEX Rating | II 1G Ex ia IIC T4 Ga |
| IECEx Certified | Ex ia IIC T4 Ga |
| Hazardous Area Rating | Class I, Division 1, Groups A, B, C, D & Class I, Zone 0, Group IIC T4 |
The Honeywell BW Clip Series delivers portable, reliable, and continuous single-gas detection for workers operating in hazardous industrial environments. Built to eliminate maintenance overhead, this compact detector operates continuously without requiring battery charging, battery replacement, or sensor replacement. It is the ideal, cost-effective solution for ensuring continuous safety compliance and worker confidence in high-risk zone applications.
Engineered with advanced Surecell™ dual-reservoir sensors and automated Reflex™ self-testing, the BW Clip delivers rapid response times and consistent reliability even in extreme temperatures and harsh weather conditions. Featuring simple one-button operation, workers can easily navigate functions while wearing thick protective gloves. The BW Clip Series offers up to 3 years of runtime (or up to 3 years over a 4-year period on 2-year models with the optional hibernation case), drastically reducing downtime and total cost of ownership.
✅ Class 1, Div. 1, Gr. A, B, C, D & ATEX/IECEx Zone 0 Intrinsic Safety Certifications
✅ Maintenance-free operation (no battery or sensor replacement needed)
✅ IP66/67 water and dust ingress protection for harsh field conditions
✅ Device management and event logging integration with Honeywell Safety Suite
✅ Ultra-bright wide-angle visual flash, 95 dB audible alarm, and built-in vibrating alert
✅ Automatic daily 24-hour internal diagnostic and battery self-test
✅ 2-year or 3-year continuous battery runtime with optional Hibernation Case
✅ Optional Real-Time LCD for live gas concentrations and calibration capability
✅ Compact, lightweight design with durable enclosure and integrated alligator clip
🔹 Standard BW Clip (2-Year or 3-Year): Maintenance-free continuous single-gas detector with no calibration required.
🔹 Gas Variants: Available configured for Hydrogen Sulfide (H2S), Carbon Monoxide (CO), Oxygen (O2, 2-year only), or Sulfur Dioxide (SO2, 2-year only).
| Feature | Details |
|---|---|
| Product Name | Honeywell BW Clip Series Single-Gas Detector |
| Gases Detected | Hydrogen Sulfide (H2S), Carbon Monoxide (CO) Oxygen (O2), Sulfur Dioxide (SO2) |
| Dimensions | 1.6 x 2.0 x 3.4 in. / 4.1 x 5.0 x 8.7 cm |
| Weight | 3.2 oz. / 92 g |
| Operating Temperature | H2S: -40 to +122°F (-40 to +50°C) CO: -22 to +122°F (-30 to +50°C) O2: -4 to +122°F (-20 to +50°C) SO2: -22 to +122°F (-30 to +50°C) |
| Humidity | 5% - 95% RH (non-condensing) |
| Alarms | Visual (wide-angle flash), Vibrating, Audible (95 dB) Low & High thresholds |
| Ingress Protection | IP66 / IP67 |
| Battery Life | 2 Years (H2S, CO, O2, SO2) or 3 Years (H2S, CO) continuous |
| Self-Test | Automated daily internal diagnostic test every 24 hours |
| Event Logging | Stores 35 most recent gas events and bump test results |
| Hazardous Certifications | Class 1, Div 1, Gr. A, B, C, D; Class 1, Zone 0, Gr IIC ATEX/IECEx Ex ia IIC T4 Ga; CE; ABS |
| Warranty | 2 or 3 years from activation (plus 1-year shelf life) |
🔗 Class 1, Div. 1, Group A, B, C, D – North American certification for hazardous locations
🔗 Class 1, Zone 0, Group IIC / Ex ia IIC T4 Ga – Global intrinsic safety compliance
🔗 ATEX & IECEx (II 1G Ex ia IIC T4 Ga) – Certified for explosive atmospheres
🔗 IP66/67 Ingress Protection – Completely dust-tight and resistant to high-pressure water jets and immersion
🔗 Download Datasheet
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
📦 1x Honeywell BW Clip Single-Gas Detector
📦 1x Integrated High-Capacity Lithium Battery
📦 1x Specified Sensor (H_2S, CO, O_2, or SO_2)
📦 1x Stainless Steel Alligator Clip
📦 1x Calibration/Test Cap and Hose
📦 1x Documentation Kit & Quick Reference Guide
📦 Lead Time: 2 - 3 weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
Does the Honeywell BW Clip require routine calibration?
The standard BW Clip is completely maintenance-free and requires zero calibration during its operational lifespan. However, if your facility mandates calibration, the BW Clip Real Time model supports manual calibration.
How does the hibernation feature work?
When using the 2-year $H_2S$ or CO model with the optional Hibernation Case or IntelliDoX system, you can pause operation when the device is not needed for a week or longer, extending its service life up to 3 years total.
Can I change the battery or sensor in the field?
No, the BW Clip is designed as a sealed, maintenance-free unit to eliminate downtime and sensor replacement costs over its 2 or 3-year service life.
How does the detector alert the user in loud environments?
The BW Clip includes a triple-alarm system: a loud 95 dB audible tone, a strong built-in vibration alarm, and wide-angle visual alarm bars.
