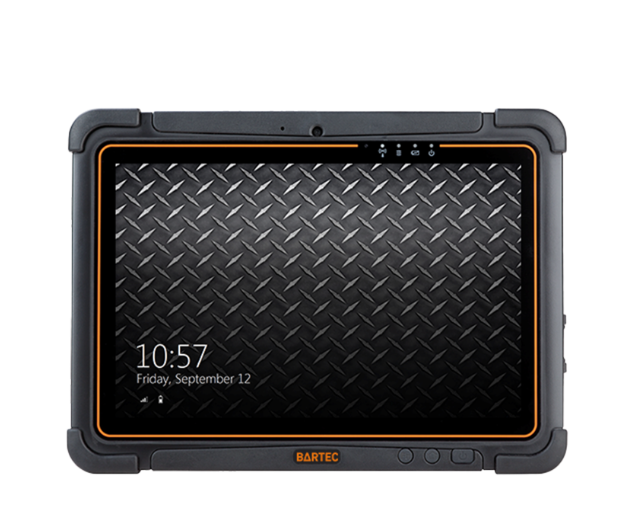

BARTEC Agile S NI Industrial Tablet

The BARTEC Agile S NI is a high-performance, ultra-rugged 10.1-inch industrial tablet PC engineered for reliable operations in harsh and hazardous industrial environments. Built to bridge the gap between field work and enterprise computing, it gives field engineers, technicians, and managers safe, real-time access to critical data in Zone 2/22 and Class I, Division 2 locations.

Driven by an Intel Core i5 processor and running Windows 10 IoT Enterprise, the Agile S NI delivers full PC desktop performance directly to the field. Its 800-nit optically bonded display offers exceptional sunlight readability and supports multi-touch functionality for seamlessly operating with a stylus, bare fingers, or heavy work gloves. With hot-swappable battery support, continuous shift operations are maintained without data loss or needing a reboot.

Key Features:

✅ ATEX/IECEx/UKEX Zone 2/22 & NEC Class I Div. 2 Certified
✅ Windows 10 IoT Enterprise LTSC (64-bit) with enterprise security
✅ IP65 dust and water resistance & MIL-STD-810G military-grade durability
✅ Dual-band Wi-Fi, Bluetooth 5.0, high-precision GNSS (GPS/GLONASS/Galileo)
✅ 8 MP rear camera with autofocus and LED flash + 2 MP front camera
✅ TPM 2.0 hardware encryption and password security for user and storage protection
✅ Up to 8 hours runtime with hot-swappable battery support for non-stop productivity
✅ Integrated 13.56 MHz RFID/NFC reader/writer
✅ Honeywell N6600 1D/2D barcode scanner, programmable keys, and MicroSD expansion up to 2 TB

BARTEC Agile S NI Technical Specifications:

Feature	Details
Product Name	BARTEC Agile S NI
Hazardous Area Approvals	ATEX/IECEx/UKEX Zone 2/22 NEC Class I Div. 2 (Groups A, B, C, D T4A)
Operating System	Windows 10 IoT Enterprise LTSC (64-bit)
Processor	Intel Core i5-7300U Kaby Lake 2.6 GHz (Turbo up to 3.5 GHz)
System Memory (RAM)	8 GB or 16 GB DDR4 SDRAM
Storage & Expansion	256 GB mSATA MLC SSD MicroSD slot expandable up to 2 TB
Display	10.1" WUXGA IPS (1920 x 1200) 800 cd/m² sunlight-readable
Display Glass	Gorilla Glass (8H Hardness) with Optical Bonding
Touch Mode	Projective Capacitive Touch (Stylus, Finger, Glove modes)
Camera	Rear: 8 MP with autofocus & LED flash; Front: 2 MP
Barcode Reader	Integrated Honeywell N6600 1D/2D Imager
RFID / NFC	Integrated 13.56 MHz HF RFID (ISO 14443A/B, ISO 15693, Mifare, FeliCa, NFC)
Wireless Connectivity	Dual Band Wi-Fi 802.11 a/b/g/n/ac Bluetooth 5.0, Optional 4G/LTE
GNSS / GPS	GPS/QZSS, GLONASS BeiDou, Galileo (up to 2.5 m precision)
Security	Trusted Platform Module (TPM) v2.0 User/HDD Password Security
Battery Life & Swap	Main Battery: 7.4 V / 5140 mAh (up to 8 hrs) Integrated Hot-Swap Battery
Ingress Protection & Ruggedness	IP65, MIL-STD-810G certified
Operating Temperature	-20 °C to +50 °C (-4 °F to 122 °F)
Dimensions & Weight	271.8 x 197.2 x 21 mm (10.7" x 7.76" x 0.83") Weight: 1.2 kg (2.65 lbs)

Certifications & Compliance:

🔗 ATEX Certificate – EPS 19 ATEX 1179 X (II 3G Ex ic IIC T4 Gc / II 3D Ex ic IIIB T130 °C Dc IP64)
🔗IECEx Certificate– IECEx EPS 19.0079X (Ex ic IIC T4 Gc / Ex ic IIIB T130 °C Dc IP64)
🔗 CSA Certificate – Class I Division 2 Groups A, B, C, D T4A CSA File 180267
🔗 EU Declaration of Conformity – ATEX-Directive 2014/34/EU
🔗 Ingress Protection – IP65 dust ingress prevention and protection against low-pressure water jets
🔗 Download Datasheet

Applications of BARTEC Agile S NI:

🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing

What’s in the Box?

📦 1x BARTEC Agile S NI Tablet
📦 1x Standard Lithium-Polymer Battery
📦 1x Power Supply & Cable (EU + US)
📦 1x Stylus and 1x Hand Strap
📦 1x Quick Start Guide / Documentation Kit

Ordering & Shipping Details

📦 Lead Time:  2 Weeks (Standard configuration)
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms

FAQs:

Can I swap the battery while working in the field without turning off the device?
Yes, the Agile S NI features an integrated backup battery (hot-swap functionality), allowing you to swap the main battery without shutting down the OS or losing work.

Can the touch screen be used with gloves or in wet weather?
Yes, the projective capacitive touch display features dedicated modes to operate seamlessly via stylus, bare fingers, or industrial gloves.

Is the barcode scanner built-in or an external add-on?
It features an integrated Honeywell N6600 1D/2D imager barcode scanner seamlessly built into the tablet housing.

What ambient temperature range can this tablet handle?
It operates from -20 °C to +50 °C (-4 °F to 122 °F) in ATEX/IECEx Zone 2/22 and -10 °C to +50 °C (14 °F to 122 °F) in Class I Div. 2 environments.
