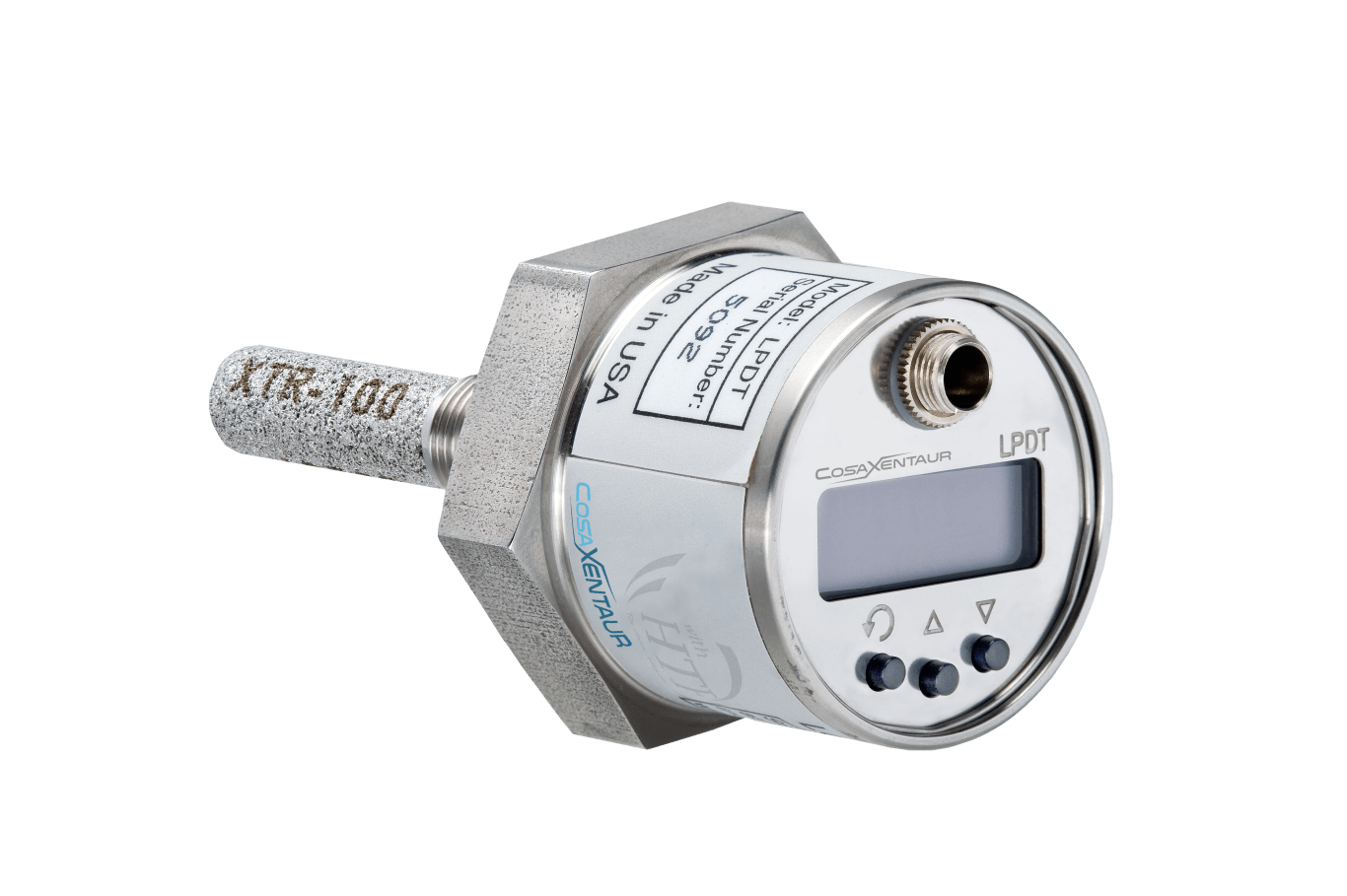

COSA Xentaur LPDT Dew Point Transmitter

The Intrinsically Safe On-line Dew Point Analyzer COSA Xentaur XDT-NEMA is a compact, simple, and dependable instrument that is certified for usage in Class I Division II hazardous areas. The XDT-NEMA continuously monitors the operation of air dryers, compressed air quality, and dry gas moisture, from ambient dew points as low as -100oC (-148oF) to +20oC (+68oF).

Among those outstanding characteristics are hermetically sealed relays for use in hazardous areas Division II, an analog output, a 6-foot signal line, a power cable (specify connection), and a user's manual. Additionally, it has analog and digital outputs for the RS 232 interfaces into the serial port of any PC or Mac, all of which are fully automated and prompt the user via a simple one-minute procedure and an error indicator.

Features:

• Class I Division II
• HTF Sensor Technology
• Span Check  in the Field
• Multiple Housing Configurations
• Very Low Drift
• Long Sensor Life
• LCD with backlight indicator
• IP65

Specifications:

Transmitter:
Sensor type:	Hyper-Thin-Film high capacitance Al2O3 dew point range XTR-100 -100°C to +20°C (-148°F to +68°F) XTR-65 -65°C to +20°C (-85°F to +68°F)
Input Resolution:	0.1°C dewpoint
Indicators:	3.5 digit LCD with custom legends
Engineering units:	°C, °F, ppmv, LBS H2O/mm scf, gm H2O/M3
Controls:	3 push buttons, all settings stored in EPROM
Output options:	Analog 4-20mA
Isolation:	Sensor and case are isolated from the current loop and shunted with 33V transorbs
Alarm relays option:	The 4-20mA of the digital output may be used by an external device to operate relays
Power requirements:	10 to 33 VDC, the instrument draws 4-20mA depending on measurement dew point

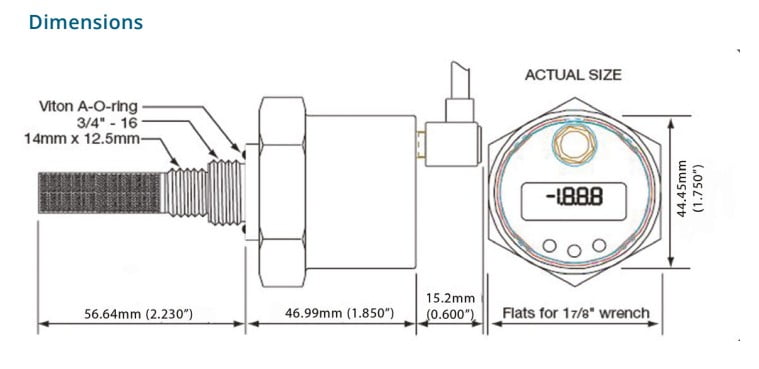

Connections:	2.1 mm power jack with retainer thread size 3/4”-16, 14 mm x 12.5 mm
Enclosure:	Stainless steel (weather proof cover optionally available)
Temperature range of electronics:	-10°C to +70°C (+14°F to +158°F)
Warranty:	1 year

Resources:

• COSA Xentaur LPDT Brochure
