Ecom RSM-Ex 01BT-Z0/D1- Remote Speaker

In StockSKU: —

Customization

$895.00

Qty

Safety Specifications

Safety specifications not available for this product

Product Description

The Pepperl+Fuchs RSM-Ex 01 is an intrinsically safe Bluetooth Remote Speaker Microphone certified for Division 1 hazardous areas, offering exceptional 103 dB volume and up to 78 hours of operating time. Engineered for oil and gas professionals, it features large, glove-friendly buttons and a dedicated SOS button for enhanced lone worker safety in the field.

Technical Datasheet

Certification & Specification

Country of Origin

Germany (DE)

Product Overview

Pepperl+Fuchs RSM-Ex 01 Remote Speaker Microphone

The Pepperl+Fuchs RSM-Ex 01 is a rugged, intrinsically safe Remote Speaker Microphone designed specifically for use in the most demanding Division 1 hazardous environments. This Bluetooth-enabled device acts as a vital communication hub, ensuring that workers in oil and gas, chemical, and mining sectors can maintain clear, reliable audio contact without compromising safety protocols.

Built for extreme field performance, the RSM-Ex 01 delivers an outstanding volume of up to 103 dB, ensuring instructions are heard even in high-noise industrial settings. The device is engineered for superior operability with thick gloves, featuring a prominent Push-to-Talk button, multi-function buttons, and linguistic feedback when switching modes. With a massive 2200 mAh Li-ion battery, it provides up to 78 hours of operating time, making it a dependable partner for long shifts.

Technical Data:

Bluetooth® 5.0
Sound volume up to 103 dB
Li-Ion 2200 mAh
Built-in NFC Chip

Features:

Lone Worker Safety: Dedicated red button for instant alerts in emergencies.
Versatile Buttons: Additional multi-functional buttons and a dedicated SOS button.
Long Battery Life: 2200 mAh Li-ion battery for extended usage.
User-Friendly: Linguistic feedback during mode changes.

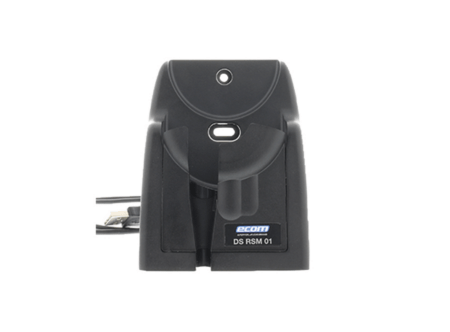

Convenient Charging: Magnetic charging cable with optional cradle.
IoT Integration: "Custom Service Load" for individual button settings, ideal for IoT tasks (Ex-Handy 10 Series only).

Ecom Intrinsically Safe Remote Speaker

Specification:

Feature	Details
Product Model	RSM-EX01B..-D1NAM-1BBL...ST +1
Hazardous Area Rating	Division 1 (CI I, II, III); ATEX/IECEx Zone 0/20 +2
Bluetooth/NFC	Yes, Bluetooth connectivity for mobile devices +1
Sound Level	Up to 103 dB +1
Battery	3.7 V / 2200 mAh Li-ion battery +2
Operating Time	Up to 78 hours (Standby approx. 74 hours) +2
Operating Temp	-20 °C to 60 °C (-4 °F to 140 °F) +1
Ingress Protection	IP64 (Ex standard) / IP67 (Industrial standard) +1
Dimensions	8 cm x 12 cm x 2.5 cm (3.2 cm depth with clip) +1
Weight	249 g +1
Special Buttons	PTT, SOS, Multi-function, Channel/Volume Up/Down +1
Charging	Magnetic charging cable or optional cradle +1
