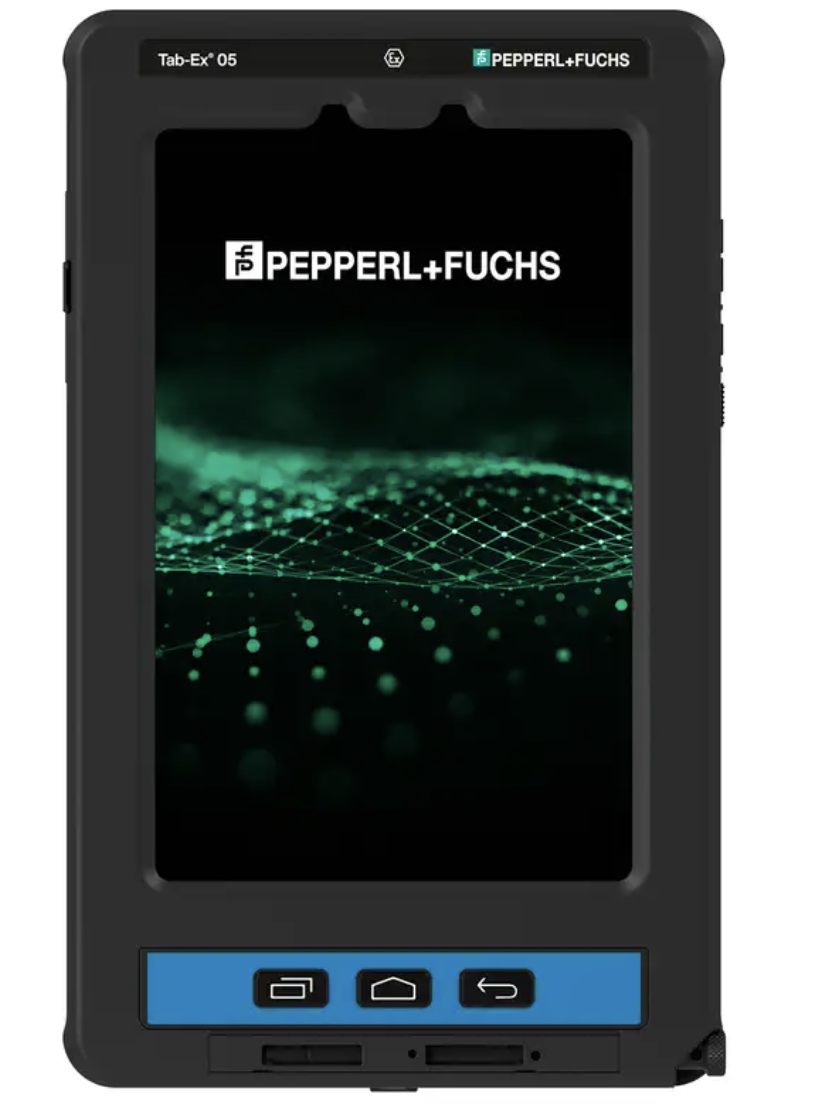

Ecom Tab-Ex 05 DZ1 – ATEX Zone 1
The Intrinsically Safe Ecom tablet DZ1 is purpose-built for professionals who need uncompromising performance in Zone 1/21 hazardous environments. Whether you’re operating on oil rigs, within chemical facilities, or in explosive atmospheres, this rugged tablet with an operating system Android 14 ensures secure connectivity, seamless digital workflows, and durability—even while wearing gloves.
With an 8″ high-brightness Gorilla Glass display, full 5G support, and certified Samsung KNOX 3.10 security, this device is the ultimate tool for mobile workers needing real-time data capture, AR capabilities, and field reliability in Zone 1 classified areas.
Key Features:
✅ ATEX Zone 1 Certified – Safe for areas with frequent explosive gas
✅ Android 14 OS – Future-proof with upgrades available up to Android 22
✅ IP68 & MIL-STD-810H – Built tough for industrial abuse
✅ High-Speed Connectivity – 5G Sub-6, Wi-Fi 6, Bluetooth® 5.3, GPS & NFC
✅ Dual Cameras – 13 MP rear and 5 MP front (also available without camera)
✅ Full Samsung KNOX Security – Trusted enterprise protection
✅ Replaceable Battery – Up to 14 hours of runtime in the field
✅ AR & Biometric Ready – Google ARCore + facial recognition
✅ Glove-Compatible Touchscreen – Rugged display for real-world use
✅ Expandable Storage – Up to 1TB microSD slot
📦 Package Options:
Ecom Tab-Ex 05 DZ1 – ATEX Zone 1 – Rugged Android tablet built for explosive atmospheres in Zone 1/21.
Each unit includes: Charger, battery, S Pen, USB charging cable, protective cover, and the latest Android OS & firmware.
Ecom Tab-Ex 05 DZ1 – ATEX Zone 1 Technical Specifications:
| Specification | Details |
|---|---|
| Operating System | Android™ 14 (Upgradeable to Android 22) |
| Processor | Exynos 1380 Octa-Core (4 x 2.4 GHz + 4 x 2.0 GHz) |
| RAM | 6 GB LPDDR4X |
| Internal Storage | 128 GB UFS |
| Expandable Storage | Up to 1 TB via microSD |
| Display Size | 8" WUXGA TFT (1920 x 1200), Gorilla® Glass 3 |
| Resolution | 1920 x 1200 (WUXGA) |
| Brightness | 600 nits |
| Touchscreen | Glove-compatible capacitive touchscreen |
| Rear Camera | 13 MP, autofocus, 4K video, 8x zoom (optional no camera version) |
| Front Camera | 5 MP front-facing |
| Battery | 5050 mAh Li-ion, 3.8V, 18.87 Wh (typical) |
| Battery Life | Up to 14 hours |
| Connectivity | 5G Sub-6, 4G LTE, Wi-Fi 6, USB-C |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax (2.4 & 5 GHz), Mobile Hotspot |
| GPS | GPS, Glonass, Beidou, Galileo |
| Bluetooth | Bluetooth® 5.3 |
| NFC | Yes |
| Security | Facial Recognition, Samsung KNOX 3.10 |
| Weight | Approx. 1122 g |
| Dimensions | 262.75 x 161.5 x 25.75 mm |
| Protection Rating | IP68 |
| Rugged Standard | MIL-STD-810H (pending) |
| Certifications | ATEX Zone 1/21, IECEx |
| Operating Temp | -20 °C to +55 °C (-4 °F to 131 °F) |
Certifications & Compliance:
The Ecom Tab-Ex 05 DZ1 meets strict international standards for use in hazardous environments:
🔗 ATEX Zone 1 / Zone 21 – For areas with explosive gas or dust
🔗 IECEx Certified – Global intrinsic safety compliance
🔗 MIL-STD-810H – Withstands shock, vibration, and temperature extremes
🔗 IP68 Rated – Waterproof, dustproof, and field-ready
🔗 Download Datasheet
Applications of Ecom Tab-Ex 05 DZ1 – ATEX Zone 1:
🔹 Oil & Gas
🔹 Petrochemical Facilities
🔹 Chemical Processing Plants
🔹 Mining
🔹 Industrial Manufacturing
🔹 Inspection and Maintenance
What’s in the Box?
📦 1x Tab-Ex® 05 DZ1 Tablet
📦 1x Replaceable Battery

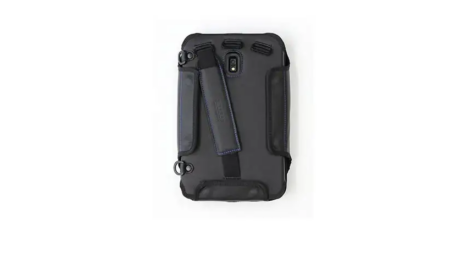

📦 1x Ex-Protective Cover
📦 1x S Pen
📦 1x USB-C Charging Cable
📦 1x Wall Charger
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2 – 3 weeks
📍 Shipping Terms: Global shipping / Expedited shipping available
💳 Payment Options: Credit Card, PayPal, Net 30 (with approved credit)
FAQs:
What is ATEX Zone 1 certification?
It certifies the tablet for safe use in areas where explosive gas or dust atmospheres are likely to occur during regular operations.
Does the Ecom Tab-Ex 05 DZ1 support 5G?
Yes, it includes full 5G Sub-6 support for ultra-fast wireless performance.
Can I use this device while wearing gloves?
Yes! The 8” capacitive screen is glove-compatible and rugged for the field.
What’s the operating temperature range?
It functions in extreme temperatures from -20 °C to +55 °C (-4 °F to 131 °F).
How long is the battery life?
The replaceable battery provides up to 14 hours of runtime.
