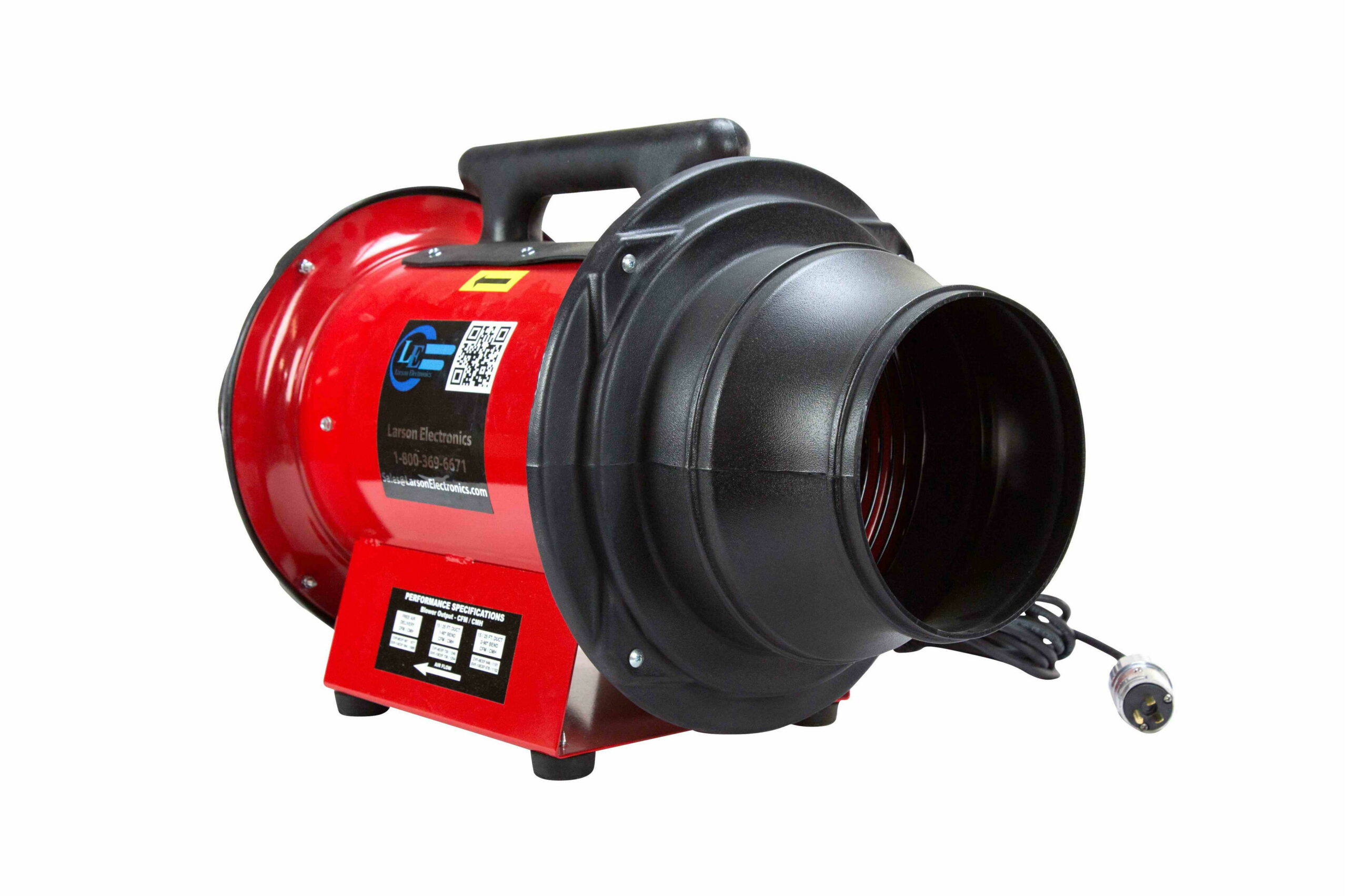

Explosion‑Proof Inline Axial Fan – Class I Division 1

This Explosion‑Proof Inline Axial Fan is engineered for safe, high-performance ventilation in Class I, Division 1 hazardous areas. Equipped with a 1/3 HP motor, it’s suitable for confined spaces and industrial setups where flammable vapors may accumulate.

Featuring a 100 ft explosion‑proof power cord and 15 ft conductive duct, the unit delivers reliable airflow with flexibility and mobility. Built with a robust, corrosion‑resistant housing and anti‑static blower wheel, it ensures rugged durability and compliance in demanding oil & gas and petrochemical operations.

Key Features:

✅ Class I, Division 1 certified
✅ Explosion‑proof 1/3 HP motor
✅ 100 ft factory‑installed explosion‑proof power cord
✅ 15 ft conductive duct included
✅ Inline axial blower for directional airflow
✅ Corrosion‑resistant steel housing
✅ Anti‑static blower wheel
✅ Pre‑wired explosion‑proof switch
✅ Dual grounding lugs, thermal overload protection

📦 Package Options:

🔹 Standard Kit: Fan + 100 ft Cord + 15 ft Duct
🔹 Add-on: 90° and 45° duct elbows available
🔹 Optional mounting bracket kit
🔹 Spare 1/3 HP explosion‑proof motor

Explosion‑Proof Inline Axial Fan Technical Specifications:

Feature	Details
Certification	Class I, Div 1 (Groups C,D); Class II, Div 1 (E,F,G)
Motor Power	1/3 HP (115 VAC standard; 220 VAC optional)
Airflow	~1,390 CFM free; ~973 CFM w/ duct and elbow
Cord	100 ft explosion‑proof power cord
Duct	15 ft conductive, static‑dissipative
Housing	Powder‑coated steel, dual-ground lugs
Blower Wheel	Non‑sparking, anti‑static
Thermal Protection	Automatic reset overload
Noise Level	~72 dB at 3 ft
Weight	~33 lbs
Dimensions	~16″W × 16.75″H × 12.5″D

Certifications & Compliance:

🔗 Class I, Division 1, Groups C & D – US & Canada certified
🔗 Class II, Division 1, Groups E, F, G
🔗 UL & C‑UL Listed
🔗 T‑rated blower wheel for static safety
🔗 Dual grounding lugs & automatic reset thermal overload
🔗 Dust/water‑resistant enclosure – Corrosion proof
🔗 Download Datasheet

Applications of Explosion‑Proof Inline Axial Fan:

🔹 Oil & Gas Facilities
🔹 Chemical & Petrochemical Plants
🔹 Confined Space Ventilation
🔹 Tank Cleaning & Hot Work Environments
🔹 Drilling Rigs & Offshore Platforms

What’s in the Box?

📦 1x Explosion‑Proof Inline Axial Fan (1/3 HP)
📦 1x 100 ft Explosion‑Proof Cord
📦 1x 15 ft Conductive Duct (Grounded)
📦 1x User Manual + Compliance Certificates
📦 1x Documentation Kit

Ordering & Shipping Details

📦 Lead Time: 1-2 Weeks
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payments: Credit Card, PayPal, Net 30

FAQs:

Is the duct bonded to ground?
Yes— the included conductive duct is grounded for static safety.

Can the fan be used for exhaust & intake?
Absolutely—inline design allows flexible use.

Does the cord support 220 V?
Standard kit is 115 VAC; contact us for 220 VAC configuration.

What is the CFM rating?
Approximately 1,390 CFM (free airflow), ~973 CFM with duct & 90° elbow.
