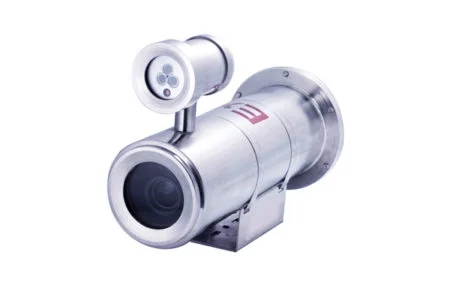

Kaixuan KX-EX707PW Explosion Proof CCTV Camera – Superior Security for Hazardous Areas
The Kaixuan KX-EX707PW Explosion Proof CCTV Camera is an advanced surveillance solution engineered to provide high-quality monitoring in hazardous environments. With its rugged explosion-proof design, this camera is built to withstand volatile atmospheres, making it ideal for use in the oil and gas, chemical, and heavy industrial sectors. Designed with cutting-edge technology, the KX-EX707PW offers reliable video surveillance while meeting stringent safety standards for explosive zones.
Key Features:
- Explosion-Proof Construction: Certified for use in hazardous areas with flammable gases and dust.
- Durable Stainless Steel Build: Constructed from corrosion-resistant materials to ensure long-lasting performance.
- High-Definition Video: Delivers clear and detailed imagery, even in challenging conditions.
- Day/Night Functionality: Equipped with an automatic IR cut filter for effective 24/7 surveillance.
- Wide Temperature Range: Functions reliably in extreme temperatures, making it ideal for various environments.
- Seamless Integration: Compatible with most industrial security systems, allowing for easy deployment.
- IP68 Rating: Fully dust-tight and waterproof, perfect for outdoor and industrial use.
Applications:
- Oil and Gas Refineries: Provides safe and effective surveillance in explosive gas areas.
- Chemical Processing Plants: Monitors hazardous zones without compromising safety.
- Mining Sites: Offers rugged durability in both above-ground and underground operations.
- Maritime Environments: Suitable for use on ships and offshore oil platforms.
- Industrial Manufacturing: Ensures continuous monitoring in areas with volatile dust and chemicals.
Specifications
| Product | Ex-Level | ATEX |
| II 2G Ex d IIC T6 Gb | ||
| II 2D Ex tb IIIC IP68 T80℃ Db | ||
| Camera | Ingress Protection level | IP66 |
| imaging sensor | SONY1/3″CMOS | |
| DSP | TI-DSP | |
| minimal illumination | Color 0.1Lux@F1.2, BW0.01 Lux@F1.2; | |
| Day/Night | IR-CUT auto-switch | |
| DNR | 3D | |
| focal distance | 2.8-12mm | |
| Aperture control | Auto | |
| Automatic aperture | DC-drive | |
| motion detecting | support | |
| Compression standard | Video compression standard | H.264/MJPEG |
| H.264 encoding type | BaseLine Profile / Main Profile | |
| Video compression standard | 32 Kbps~8Mbps | |
| Image | Maximum resolution | 1920×1080 |
| Frame rate | 2 megapixel and following 25 frame(full-time), support 1~25 fps is adjustable; | |
| Video output | Main Stream:1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720;Sub Stream: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192; | |
| Image setting | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
| Net | Interface protocols | ONVIF,PSIA,CGI,ISAPI,GB28181 |
| Support protocols | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc. | |
| audio interface | optional | |
| Alarm interface | optional | |
| Laser lamp | IR distance | 50MM 100M（optional） |
| IR switch | IR lamp Auto-open when <0 Lux | |
| wavelength, | 808nm | |
| Other specification | Temperature range | -40℃～60℃ |
| Relative humidity | ≤ 95%（+25°C） | |
| Atmospheric pressure | 80kpa～106 kpa | |
| Thermostat System | optional | |
| Supply voltage | DC12V /AC220V（optional ） | |
| Suitable Environment | Apply to explosive gas and combustible dust environment | |
| Material | 304 stainless steel (316, 316L for optional) | |
| Inlet hole specifications | G3/4″ X 2 | |
| External dimensions | 380mm*144mm*232mm | |
| Installation method | PTZ,Wall Hanging dyadic , fixed bracket , Pillar base |
Package Includes:
- Kaixuan KX-EX707PW Explosion Proof CCTV Camera
- Wall/Ceiling Mounting Bracket
- Power Supply Cables
- User Manual
- Warranty Card
Benefits:
The KX-EX707PW enhances operational safety and security in hazardous locations by providing continuous, high-quality video surveillance. Its rugged, explosion-proof design minimizes the risk of ignition in dangerous environments, allowing for safe monitoring and reducing downtime caused by safety concerns. The camera’s weatherproof and durable design ensures a long lifespan, even in extreme conditions, offering reliable performance with minimal maintenance.
Resources and Certifications:
Accessories:
- Mounting Accessories: Pole mount, corner mount, and wall mount options.
- Additional Power Supplies: Available for AC/DC power conversion.
- Lens Accessories: Protective lens covers, wipers for clear imaging in tough conditions.
- Cabling Options: Ethernet and power cables are available for specific installation needs.
More Options for You:
- Kaixuan KX-EX701PWC5: Explosion-proof camera designed for confined spaces with a compact form factor.
- Bartec Impact X: An explosion-proof camera with smartphone capabilities for enhanced mobility.
- DPI 610 PC/IS Pressure Calibrator: For industrial pressure calibration in hazardous zones.
Extra Information:
- Warranty: 2-year limited manufacturer’s warranty.
- Availability: Available for pre-order; ships in 6-8 weeks.
