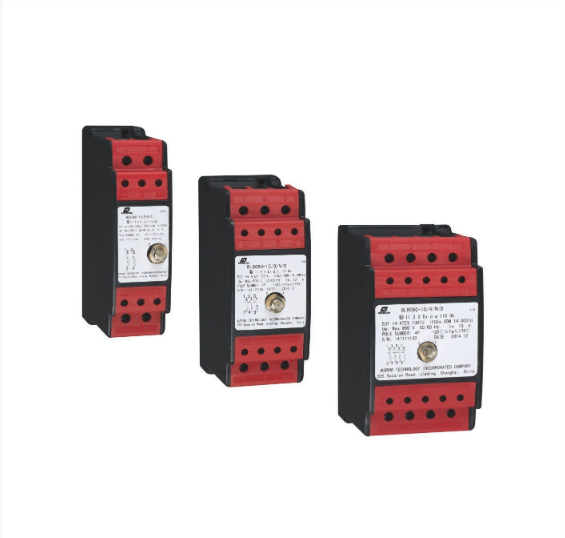

Explosion-proof Circuit Breaker Modules Warom BL8060 Series Main Imagae

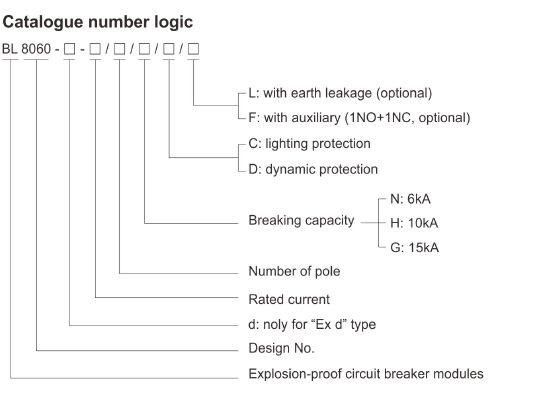

Explosion-proof Circuit Breaker Modules Warom BL8060 Series Catalogue number logic

Warom BL8060 Explosion Proof Circuit Breaker Modules

Q&AsWrite A Review

The cavity is of engineering plastic embedded with a high-strength metal frame structure; it has a strong corrosion-proof capacity and reliable performance.

Schneider iC65 series MCB built-in, special operation mechanism-intrinsically designed, reliable overall operation. Explosion Protection to EN, IEC. Can be used in Zone 1, 2 Class I Division 2 Groups A, B, C, D

Country of Origin 🇨🇳 China

$6.614 Import tariffs will be applied

Out of stock

Similar Categories: ,

Found It Cheaper?

We Match It!
Price Match Guarantee

Need Help?

Speak with a Hazardous Area expert now
832 699 6726 Chat with us

Description

SPECIFICATIONS:

Global (IECEx) IECEx CQM 14.0031U
Gas Ex d e IIC Gb
Europe (ATEX) EUT 14 ATEX 1301U
Gas II 2 G Ex d e IIC Gb
Certificates IECEx; ATEX
Conformity to standards EN; IEC



DATA:

Enclosure Material GRP(glass fiber-reinforced polyester resin)
Dimensions As per design
Rated voltage Max. 690V AC
Rated current 63A
Mechanical life 20000 times
Auxiliary contact 1NO+1NC(Indicating contact in OF state)
Number of pole 1P, 2P,3P,4P 1PL,2PL(≤ 63A)
Surface Mounting Standard
Pedestal Mounting Optional



Certification:

Resources:
