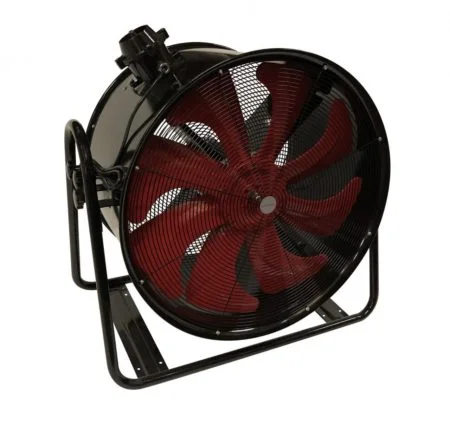

Atlantic Blowers’ ABAF-20-110SE Explosion Proof Fan is a certified Class 1,2 Division 1-2 Single Phase Axial Fan. Suitable for a variety of low-pressure and high-flow applications. Produces a maximum flow rate of 5827 cubic feet per minute (CFM) and a maximum pressure of 1.8 inH2O. This Tube Axial fan operates between 110V and 120V. At a distance of 3 feet, the fan will emit a noise level of 73 dB. The diameter of the impeller is 20″.
Blower Weight: 88lbs.
Note: This intrinsically safe blower will be enclosed in a wood pallet to protect it from damages during shipping. The wood pallet is approximately 70lbs.
Shipping Time: 8-10 weeks
| Hazardous Area Rating | Class 1 Division 1 and Class 1 Division 2 |
The Atlantic Blowers ABAF-20-110E Explosion Proof Fan is a certified Class 1, 2 Division 1-2 Single Phase Axial Fan. It is suitable for a variety of low-pressure and high-flow applications. This Tube Axial Fan has a maximum airflow of 5827 cubic feet per minute. 1.8 inH2O is the maximum pressure. It produces 1.5 horsepower (1.1 kW) at 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage ranges from 110V to 120V. At a distance of 3 feet, the fan will emit a noise level of 73 dB. The diameter of the impeller is 20".
When placed within the specified specifications, Axials Fans require practically no maintenance. A well-ventilated region with a temperature below 104*F will provide the longest possible life for your Tube Axial Fan. The motors are two-pole TEFC, which makes them extremely efficient and resistant to dust and other pollutants.
| Model Number | ABAF-20-110SE |
| Voltage | 110-120 |
| KW | 1.1 |
| HP | 1.5 |
| Speed (RPM) | 1720 |
| Weight (lbs) | 88 |
| Max Flow (CFM) | 5827 |
| Max Pressure ("H2O) | 1.8 |
| Sound Level (db) | 73 |
| Impeller Diameter | 20" |
