Your Global Authority In Hazardous Areas
Your Global Authority In Hazardous Areas

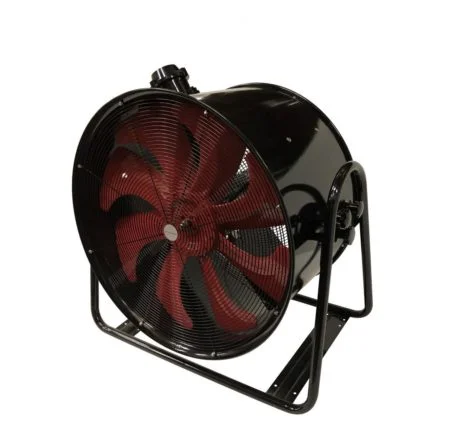

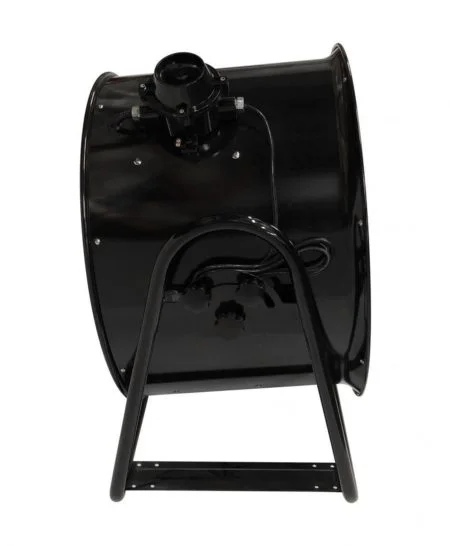

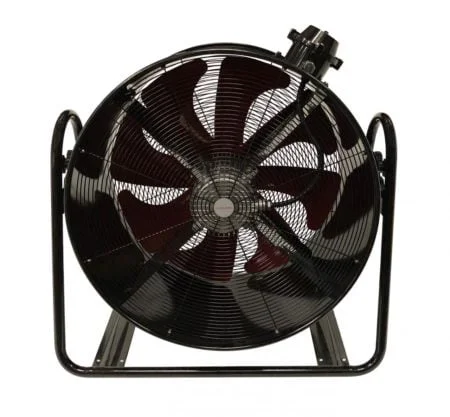

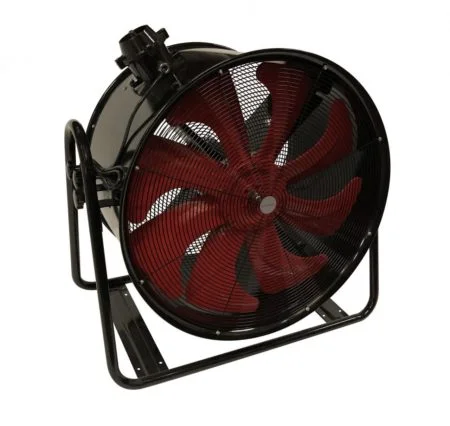

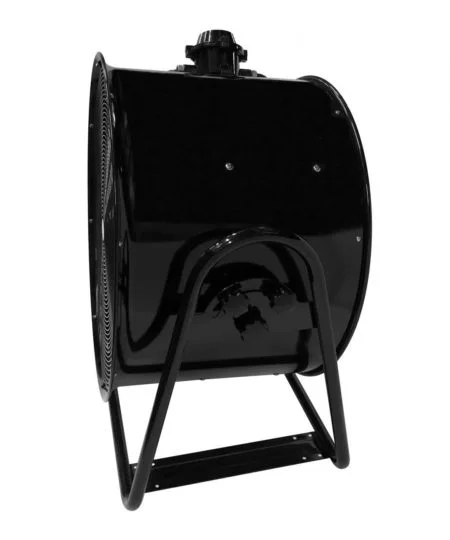

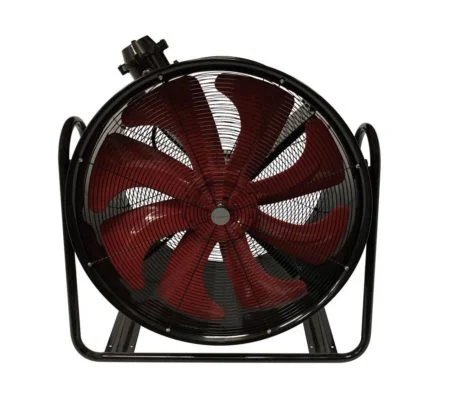

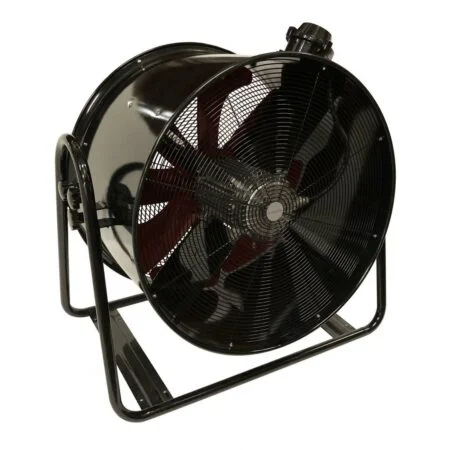

Explosion Proof Fan Atlantic Blowers ABAF-24-220SE is a certified Class 2, Division 1 Single Phase Axial Fan. Used for various low-pressure and high airflow applications. Produces a maximum flow of 3355 CFM with a maximum pressure of 1.4 inH2O. This Tube Axial fan has a voltage of 110V-120V. The fan will produce a noise level of 68 decibels measuring at a distance of 3 ft. The impeller diameter is 16″.
Blower Weight: 148lbs.
Note: This intrinsically safe blower will be enclosed in a wood pallet to protect it from damages during shipping. The wood pallet is approximately 70lbs.
| Hazardous Area Rating | Class 2 Division 1 |
is certified Class 2, Division 1 Single Phase Axial Fan. It can be used for various low-pressure and high airflow applications. This Tube Axial Fan produces a maximum flow of 3355 CFM. The maximum pressure is 1.4 inH2O. It has a power output of 0.75 HP (0.55 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is between 110V-120V. The fan will produce a noise level of 68 decibels measuring at a distance of 3 ft. The impeller diameter is 16".
Axial Fans require almost zero maintenance if installed within the defined parameters. A well-ventilated area below 104*F will ensure the maximum longevity of your Tube Axial Fan. The motors are 2 Pole TEFC making them efficient and highly resistant to dust and other potential contaminants. Shop Now!
| Model: | ABAF-24-220S |
| Max. Flow (CFM): | 9182 |
| Max. Pressure (inches H2O): | 2.2 |
| Max. Vacuum (inches H2O): | 2.2 |
| Voltage/Phase: | 220V Single Phase |
| Horsepower: | 2.7 |
| Decibels: | 79 |
