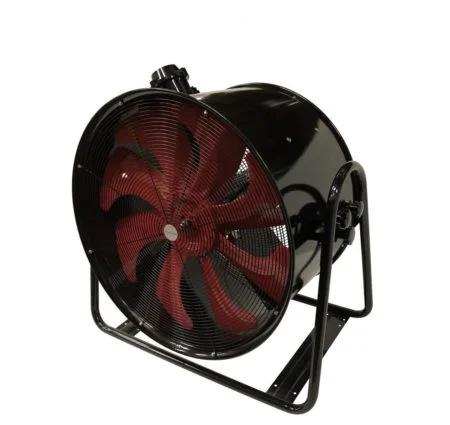

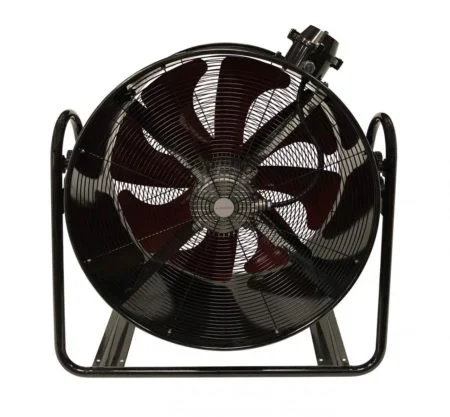

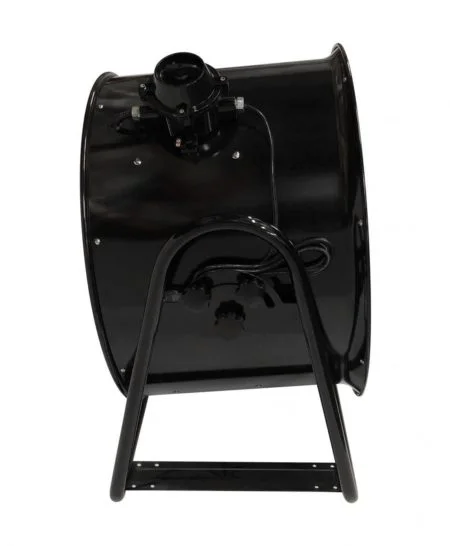

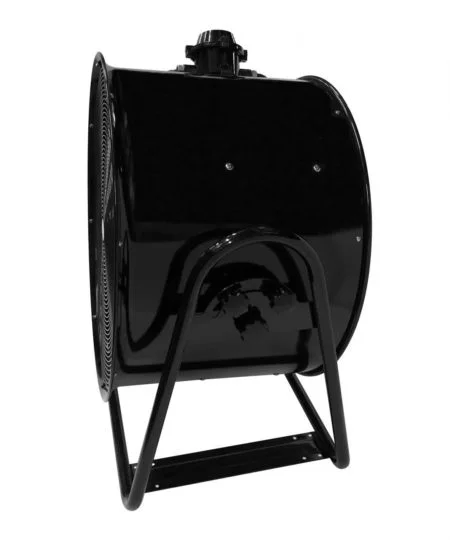

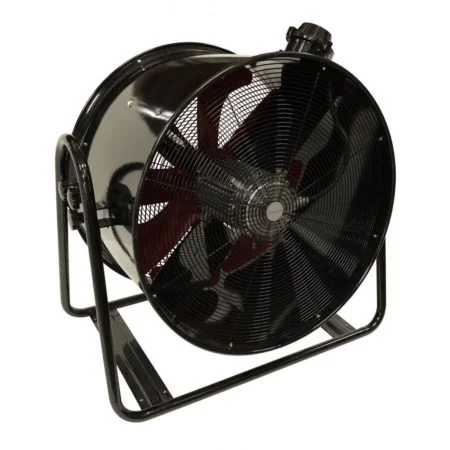

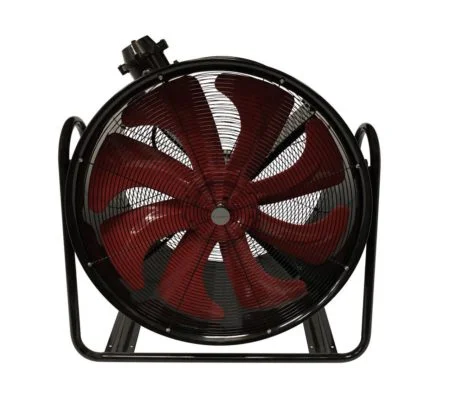

Explosion Proof Fan Atlantic Blowers ABAF-28-220E

SKU: ABAF-28-220E
(1 customer review)

Explosion Proof Fan Atlantic Blowers ABAF-28-220SE is a certified Class 2 Division 1 Single Phase Axial Fan. Used for various low-pressure and high airflow applications. Produces a maximum flow of 3355 CFM with a maximum pressure of 1.4 inH2O. This Tube Axial fan has a voltage of 110V-120V. The fan will produce a noise level of 68 decibels measuring at a distance of 3 ft. The impeller diameter is 16″.

Blower Weight: 165lbs.

Note: This intrinsically safe blower will be enclosed in a wood pallet to protect it from damages during shipping. The wood pallet is approximately 70lbs.

Weight235 lbs
Hazardous Area Rating

$3,13099

Trusted Clients

Similar Categories: ,

Explosion Proof Fan Atlantic Blowers ABAF-28-220E

Features:

  • Class 2 Division 1
  • Horsepower: .75
  • Diameter 16 inches
  • Decibels: 68
  • Max. Flow (CFM): 3355
  • Voltage/Phase: 110-120/220-240 Single Phase
  • Energy Efficient
  • Convenient to move with handle or wheels
  • Low noise
  • Lightweight Diecast Aluminum Alloy
  • Sturdy and powerful with Direct Drive motors
  • Lobed Axial Blade Shape
  • Adjustable blade pitch

Introducing Explosion Proof Fan Atlantic Blowers ABAF-28-220E

is certified Class 2 Division 1 Single Phase Axial Fan. It can be used for various low-pressure and high airflow applications. This Tube Axial Fan produces a maximum flow of 3355 CFM. The maximum pressure is 1.4 inH2O. It has a power output of 0.75 HP (0.55 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is between 110V-120V. The fan will produce a noise level of 68 decibels measuring at a distance of 3 ft. The impeller diameter is 16″.

Axials Fans require almost zero maintenance if installed within the defined parameters. A well-ventilated area below 104*F will ensure the maximum longevity of your Tube Axial Fan. The motors are 2 Pole TEFC making them efficient and highly resistant to dust and other potential contaminants. Shop Now!

Specifications:

Model:ABAF-28-220S
Max. Flow (CFM):11654
Max. Pressure (inches H2O):2.6
Max. Vacuum (inches H2O):2.6
Voltage/Phase:220V Single Phase
Horsepower:3.2
Decibels:80
