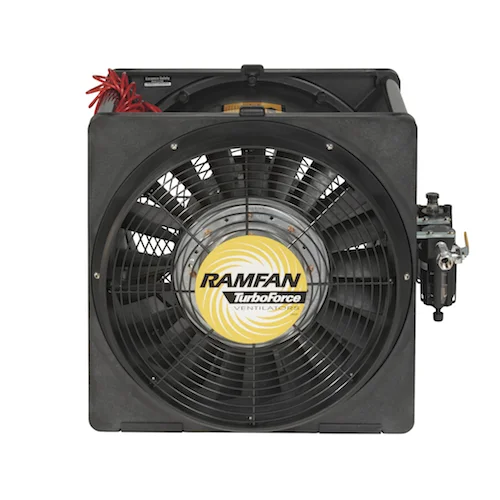

RamFan AFi50xx – 16″ Explosion Proof Fan

SKU: AA7000

A 16-inch explosion proof fan, RamFan AFi50xx EX II 2 GD c T4+1° C Ta +40° C certified for usage in hazardous environments. For both storage and operation, the AFi50xx ventilator can be stacked. Axial blowers, pneumatic axial Polycarbonate/ABS (PC/ABS) The anti-static casing is waterproof, flame retardant, and chemically resistant. Fittings with built-in duct adapters cord for grounding static electricity devices.

ATEX Rating

IECEx Certified

$3,55425

Shipping Time: 10-20 business days

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: ,

RamFan AFi50xx – 16″, an explosion proof fan, has been certified for use in EX II 2 GD c T4+1° C Ta +40° C hazardous areas. Storage and operation of an air-driven AFi50xx ventilator are both stackable. Not in the stream of air, but outside of the duct, it exhales. The AFi50xx hazardous site blower/exhauster also provides the user with protection and peace of mind. Filter oil-driven pneumatic air motors.

There is a filter, a regulator, and a grounding clamp included with each air unit. Oil must be used in order to keep the motor running smoothly. Before the motor, a moisture trap and filter must be inserted in the airline.

Features:

  • ATEX Zone 1
  • Made in California, USA
  • Pneumatic air motor driven with filter oil
  • Static grounding cord
  • Durable, PC/ABS Anti-static casing is weatherproof, flame retardant and chemical resistant
  • 2 Integrated duct adapters
  • Air exhausts outside of duct, not in the air stream
  • Complete with filter, motor lubricant, and air control valve

Specifications:

MODELAFi50xx
Part #AA7000
IMPA Code591512, 591426
MotorGAST 4AM-NRV-50C
Motor TypeTotally Encapsulated Air Flame Proof
Operating Temperature-22°F to +104°F / -30°C, to +40°C
Noise89 dB @ 3' (1 m)
Run TimeContinuous
Weight43 lbs / 20 kg
Dimensions (h/w/d)19 x 21 x 16 in / 48 x 53 x 41 cm
Duct Adapters2
AIR CONSUMPTION AND HORSEPOWER REQUIREMENTS FOR AIR COMPRESSOR
Air Pressure (PSIG) Inlet Air80
Air Consumption40scfm / 68m³/hr
Compressor Hp6.4 Hp
Induction Ratio80:1
ApprovalCE

Air Flow

Air Flow ( 80 psi )3,200 cfm (5,440 m³/hr)
Compressor6.4 Hp (4.77 kW

Dimensions

WEIGHT44.09lb
HEIGHT18.9in
WIDTH20.87in
DEPTH16.14in
