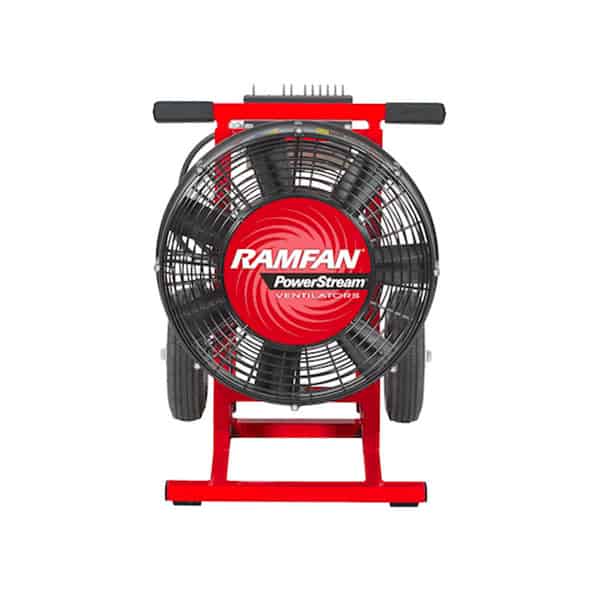

Explosion Proof Fan RamFan XP400 – 16″ Inch

SKU: EB80500X
(1 customer review)

Explosion Proof Fan RamFan XP400 – 16″ Inch built with an ATEX Zone 1, IECEx certified explosion-proof motors for use in areas where potentially explosive gases are likely to be present. Powered by 1.5HP Haz. Loc. PPV Blower 115/240v, 50/60Hz, 16 inch, Wired 115v-Plug 5-15P. It features full-width retractable handle, precision balanced TurboForce impeller for increased shatter resistance, 1″ (25mm) powder coated steel frame, 0-20° tilt adjustment for precise positioning and equipped with powerstream air straighteners.

ATEX Rating

IECEx Certified

$2,41400

Trusted Clients

Similar Category:
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat us

Explosion Proof Fan RamFan XP400 – 16″ Inch

  • ATEX Zone 1
  • IECEx
  • Electric Blower with Explosion-Proof Motor
  • PowerStream Air Straighteners
  • Full-width retractable handle for up right, push/pull operation and compact storage when down
  • Precision balanced TurboForce impeller for increased shatter resistance
  • 1″ (25mm) powder coated steel frame
  • 0-20° tilt adjustment for precise positioning
  • 7-Blade Impeller
  • Made in California, USA

NOTE:

  • Not available for sale in the EU
  • Whole unit not explosion proof

Introducing Explosion Proof Fan RamFan XP400 – 16″ Inch built with an ATEX Zone 1, IECEx certified explosion-proof motors for use in areas where potentially explosive gases are likely to be present; establishing and ensuring a safer work environment.

Equipped with PowerSteam air straighteners that produce a powerful, straight, focused beam of air; allowing the fan to be set back further from a structure’s entrance without sacrificing PPV performance.

RAMFAN PowerStream How it works and what it can do for you

The XP400 offers superior ventilation with less equipment clutter and reduced noise inside the structure. The PowerStream FlowPath penetrates deeper through the structure than the traditional cone of air.

Specifications

ModelXP400
PartEB80500X
Weight68 lbs / 31 kg
Impeller7-Blade
Dimensions / (h/w/d)22.6 x 17.4 x 18.5 in / 57 x 44 x 47 cm
Motor1.5 Hp / 1.1 kW
Amps (Start/Run)80A / 15A
Noise97 [email protected]' (1 m)
Electric115V, 1ø, 50/60Hz
ApprovalCE
Tested in Accordance with AMCA 240
Airflow through Single Door11,391 cfm
19,365 m3/hr
