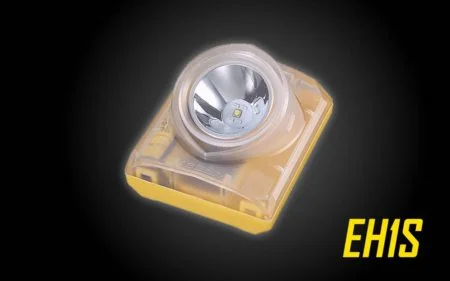

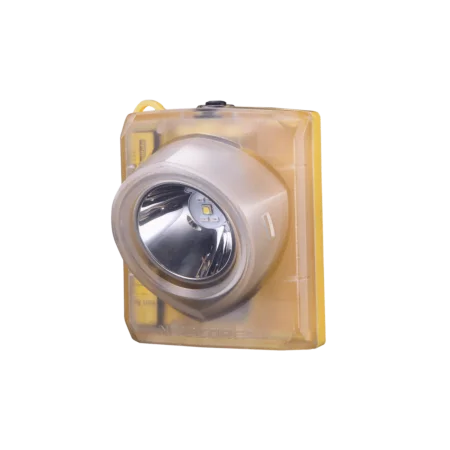

Nitecore EH1S Explosion Proof Headlamp

SKU: 6952506402083

The Nitecore EH1S is an explosion proof headlamp that may be used in ATEX I M1 and ATEX Zone 0/1 hazardous areas. Using one 18650 Li-Ion battery, you can get a maximum output of 260 lumens and a range of 205 meters, giving you a run duration of 60 hours or 2.5 days. Four more red LEDs are included. There are 3 brightness levels, 2 special modes, ATR (Advanced Temperature Regulation) technology, thermoelectric separation, a power indicator, a low battery alarm, several beam color options, high-strength polycarbonate materials, a magnetic charging cable, and an IP54 rating.

***Sold by large quantity***

ATEX Rating


Shipping Time: 2-7 business days

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Categories: ,

The Explosion Proof Headlamp Nitecore EH1S has an incredibly small and lightweight body and is certified for use in ATEX I M1 and ATEX Zone 0 / 1 hazardous sectors, including mining, underground, and off-shore petroleum extraction, petrochemical, and chemical industries. Due to the EH1S’s ability to float on the surface of the water, it is ideally suited for off-shore activities.

The Nitecore EH1S Explosion Proof Headlamp is equipped with a single integrated high-energy density 18650 battery, which provides an ultra-long operating duration of 60 hours. Multiple color temperatures enable the user to successfully pierce fog, smoke, or haze, making it ideal for public safety and firefighting applications.

The neutral white light at 5000K produces a diffused light that is ideal for protracted underground tasks such as mining and cave exploration.  The 6500K white light is comparable to natural daylight, allowing the user to accurately identify and distinguish the target, making it ideal for usage in gas stations, railway stations, warehouse, and ship operations.


  • ATEX I M1
  • ATEX Zone 0 / 1
  • Explosion Group IIB, Operating Temp Class T5 (100d C)
  • Intrinsically Safe LED Headlamps
  • Powered by one built-in 18650 battery for a maximum of 260 lumens
  • Weight: 151 g / 5.32 oz
  • Max Run Time: 60h 0 m / 2.5 d
  • Designed for high risk industries, including mining, underground and off-shore petroleum exploitation petrochemical and chemical industries
  • Featuring Advanced Temperature Regulation (ATR) technology for dynamically adjusting output performance according to body temperature
  • Utilizing a CREE XP – G2 S3 LED

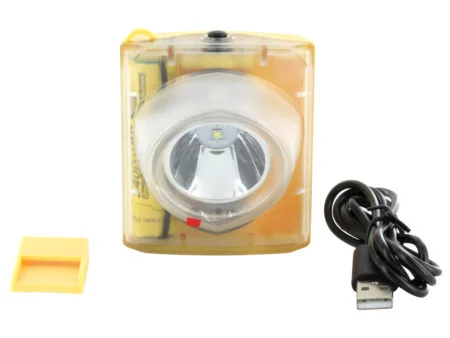

  • USB magnetic charging cable for outputting 1000mA
  • An intuitive user interface with a button switch ensures easy one-handed operation
  • Featuring 3 brightness levels and 2 special modes
  • Featuring constant illumination/ slow flashing red light
  • Features power indicator and a low battery alert

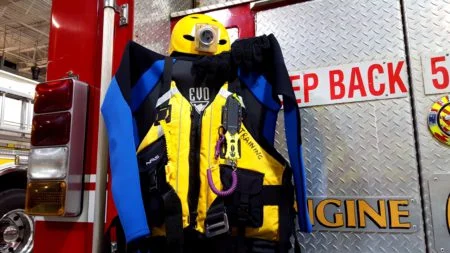

  • Helmet mount included
  • 1.8 impact resistant
  • IP54 rating for dust and water resistance
Carrying Options:
  • Using the lamp mount

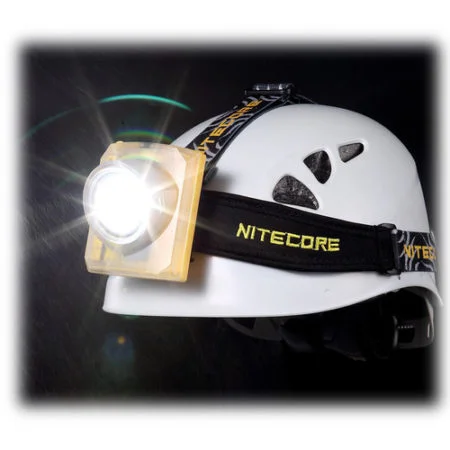

  • Using the headband


Light OutputHigh: 260 Lumens
Mid: 65 Lumens
Low: 22 Lumens
Run Time High: 5 h
Mid: 20 h
Low: 60 h
Beam Distance205 m
Peak Beam Intensity10,500 cd
Impact Resistant1.80 m
Ingress ProtectionIP54
Max Output260 lumens
Max Beam Distance205 m
Max Run Time60 h 0 m / 2.5 d
Reflector SMO
BatteryRechargeable Li-Ion
Special ModesLocation Beacon, SOS, Red Caution Light
Beam ColorWhite light, Neutral white, Auxiliary Red light
Length83 mm / 3.26 in
Weight 151 g / 5.32 oz
Feature Dual- Output, Rechargeable, Red Caution light
ActivityGear, Search
