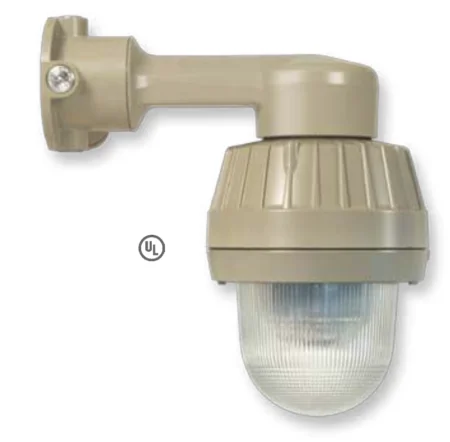

Explosion Proof Signal Lights Tomar 7024XLW-Wall Mount

SKU: N/A

Tomar Electronics presents the LED Super Explosion Proof Lights-7024XLW-WallMount-12-36VDC, UL Listed for top-tier safety and featuring a unique thermal management system for extended lamp life; with six LED colors, a five-year guarantee against defects, and versatile operation, these lights redefine reliability in hazardous environments with NEMA 4X construction and marine-rated durability.



Hazardous Area Rating

$2,31408

Price Depends on product option
Make a selection to update price

Shipping Time: 2-10 business days

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

Explosion Proof Signal Lights Tomar 7024XLW-Wall Mount

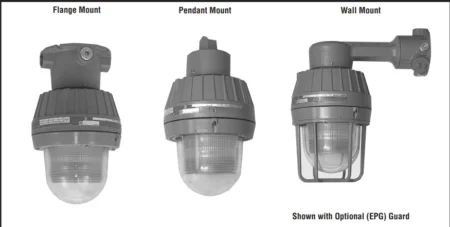

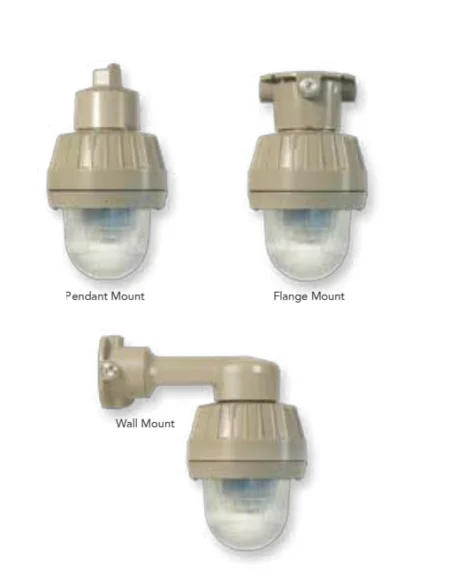

Introducing the Explosion Proof Signal Lights Tomar 7024XLW-Wall Mount – a groundbreaking addition to our product lineup. UL Listed for Class 1, Division 1, Groups C & D; Class 2, Division 1, Groups E, F & G; and Class 3, these warning lights offer unparalleled safety. With six vibrant LED colors (Amber, Blue, Green, Magenta, Red, and White), they provide versatile signaling options.

Tomar’s Super Explosion Proof LED lights stand out due to a unique thermal management system. Internal cooling fins efficiently draw heat away from the LEDs, ensuring an extended lamp life and consistent light output. Backed by a five-year guarantee, both electronics and LEDs are resilient against manufacturing defects.

Featuring an internal switch for easy mode selection (steady-burning, single or double flash), these lights operate seamlessly across a broad  DC input voltage range. The DC version operates from 12-36 VDC.

Built to NEMA 4X standards and marine-rated for saltwater environments, the full-sized 7000 Family series exhibits top-notch construction. The housing, crafted from die-cast high-strength copper-free aluminum alloy, boasts a baked powder epoxy finish.

Features:

  • UL Listed Safety: Designed for Class 1, Division 1, Groups C & D; Class 2, Division 1, Groups E, F & G; and Class 3 hazardous environments.
  • Versatile LED Colors: Available in six vibrant colors (Amber, Blue, Green, Magenta, Red, and White) for flexible signaling options
  • Advanced Thermal Management: Unique system with internal cooling fins draws heat away from LEDs, ensuring longer lamp life and consistent light output.
  • Guaranteed Reliability: All electronics and LEDs are backed by a five-year warranty against manufacturing defects.
  • Mode Selection: Internal switch allows easy selection among steady-burning, single, or double flash modes.
  • Wide Voltage Range: Operates seamlessly over a broad DC (12-36 VDC) input voltage range.
  • Robust Construction: NEMA 4X standards, marine-rated for saltwater environments, featuring die-cast high-strength copper-free aluminum alloy housing with a baked powder epoxy finish.
  • Durable Components: Stainless steel hardware, O-ring sealed prestressed glass dome, and double pitch acme threads for smooth assembly and ease of maintenance.

Explosion Proof Signal Lights Tomar 7024XLW-Wall Mount

Specifications:

Technical Data:
ModelDescriptionVoltage
7024XLWWall Mount 3/4" hub12-36 VDC
Lamp TypeLED
Flash Rate -80 Single Flash per minute
40 Double Flash per minute
Voltage and Amperage:170 mA @ 24 VDC Flashing; 500 mA Steady-burn
035 mA @ 120 VAC Flashing; 100 mA Steady-burn
020 mA @ 240 VAC Flashing; 050 mA Steady-burn
Operating Temperature:-55 C to 85 C
Temperature Code:T6 - All voltage and temperature ranges
In-rush Current1.5 Amps @ 24 VDC Flashing and Steady-burn
065 mA @ 120 VAC
125 mA @ 240 VAC

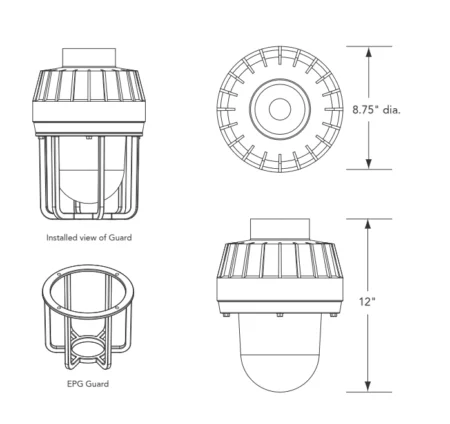

Size12” tall x 8.75” dia
Weight:14.4 lbs
Optional (EPG)Guard

Explosion Proof Signal Lights Tomar Certificate

Datasheet:
