Explosion Proof Strobe Tomar 4375S, 120-240 VAC
- Class I, Div. 2 Groups A, B, C, and D
- Class II, Div. 2 Groups F and G
- 10,000 hour strobe lamp
- .5″ tall x 5.4″ dia. x 3.2 lbs
- two year warranty on power supply
- one year warranty on lamp
- Available in 6 lens colors
- UL Listed
- CSA Approved
- NEMA 4X
- UL 1598 impact resistant lens
Introducing Explosion Proof Strobe Tomar 4375S, 120-240 VAC
Tomar Electronics model 4375S hazardous location strobe now features a shatter resistant LexanTM lens. The efficient lens optics, coupled with the high-power 8 joule xenon strobe tube produce 200 Effective Candela (ECP) and 800,000 Peak Candlepower.
The model 4375S is UL Listed and CSA Certified for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F, and G; and Class III.
Typical applications include manufacturing plants, chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, agricultural, food processing, industrial, mining and marine facilities.
The 4375S is available in 12-74 VDC or 120-240 VAC. It is NEMA 4X rated and constructed to IP 66. It is water-tight, dust-tight, and corrosive resistant. It can be operated in any orientation, and features a 3⁄4” ISP pendant mount.
Architect and Engineer Specifications:
Hazardous Location visual signaling beacon shall be Tomar model number series 4375 or approved equal. The beacon shall be UL Listed Class I, Division II, Groups A,B,C, and D; for use in specified hazardous locations as classified by the National Electric Code. The light source shall be a plug-in field replaceable single-flash xenon strobe lamp. The warning signal must have built-in RFI filters to protect against radio interference and spike voltages. Voltage ranges shall be 12-74VDC and 120-240VAC. The warning light
shall be rated NEMA 4X and have a polycarbonate lens.
*ECP (Effective Candlepower) is the intensity that would appear to an observer if the light were burning steadily.
**Peak Candlepower is the maximum light intensity generated by a flashing light during its light pulse.
|Lamp Type||2001 Xenon strobe lamp|
|Lens Type||4375–L–Color ( please specify lens color )|
|Flash Rate||80 flashes per minute ± 10%|
|Light Output||200 ECP|
|Voltage and Amperage||12-74 VDC draws 1.2 Amps at 12 VDC; 590mA at 24 VDC; 370mA 48 VDC; 190mA at 80 VDC|
|120-240 VAC draws 200mA at 120 VAC; 600mA at 240 VAC|
|Temperature Rating||-55° C to 66° C|
|Power Supply||Output 15 Watts ( single flash ) 8 joules per flash. 800,000 Peak Candlepower**|
|Size and Weight||8.5″ tall x 5.4″ dia. x 3.2 lbs ( 215mm x 137mm x 1.45kg )|
|Inrush Current||1.75 Amps at 24 VDC|
4375S 120-240 Explosion Proof Strobe Models:
|4375S–120-x||Hazardous location AC strobe||120 – 240VAC|
|4375–1274-x||Hazardous location DC strobe||12 – 74VDC|

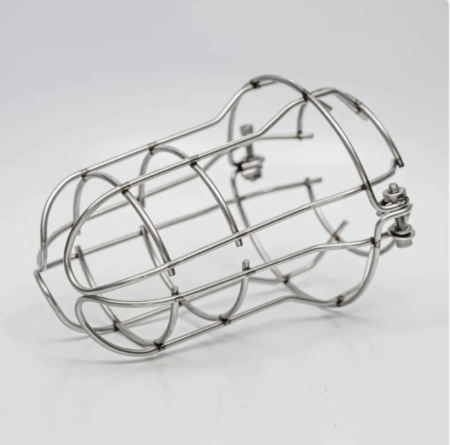

|4375-Guard||Stainless Steel guard for 4375 series lights|
Explosion Proof Strobe Tomar 4375S, 120-240 VAC Certifications:
- 4375S Explosion Proof Strobe CSA Certificate
- 4375S Explosion Proof Strobe UL Certificate
- 4375S Explosion Proof Strobe Certificate of Compliance
