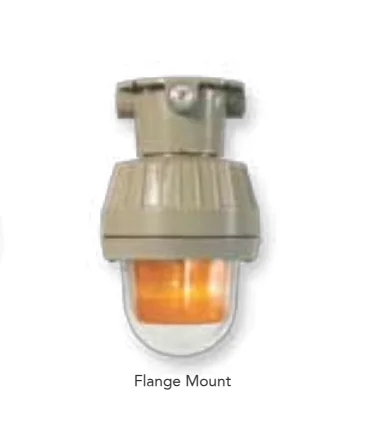

Explosion Proof Strobes Lights Tomar 7024BEP-Flange Mount
Explosion Proof AlarmsSKU | N/A

Explosion Proof Strobes Lights Tomar 7024BEP-Flange Mount

In Stock
$2,551.79
Qty
1

Safety Specifications

Hazardous AreaClass 1 Division 1
Product Description

Tomar Electronics presents the LED Super Explosion Proof Lights-7024BEP-Flange Mount-12/24 VDC, UL Listed for top-tier safety and featuring a unique thermal management system for extended lamp life; with six LED colors, a five-year guarantee against defects, and versatile operation, these lights redefine reliability in hazardous environments with NEMA 4X construction and marine-rated durability.



Technical Datasheet

Certification & Specification

Hazardous Area RatingClass 1 Division 1

Product Overview

Explosion Proof Strobes Lights Tomar 7024BEP-Flange Mount

Introducing the Explosion Proof Strobes Lights Tomar 7024BEP-Flange Mount - The Super Explosion Proof double flash strobe lights are purpose-built for hazardous areas classified by the NEC, including Class I, div 1 & 2 Group C & D, Class II, div. 1 & 2 Group E, F, & G, and Class III, div. 1 & 2. Complying with NEMA standards 3, 4, 4X, 7CD, and 9EFG, these versatile lights are marine-rated for saltwater environments. With lens color options like Amber, Blue, Clear, Green, Purple, and Red, they offer flexibility for specific visibility needs.

Crafted with a die-cast high-strength copper-free aluminum alloy housing and a baked powder epoxy finish, these strobe lights ensure durability in demanding conditions. Stainless steel hardware and an O-ring sealed prestressed glass globe with double pitch acme threads facilitate smooth assembly and maintenance.

Featuring a flash synchronizing circuit for coordinated illumination, these strobe lights also offer an optional guard, eliminating the need for removal during re-lamping and simplifying maintenance. Standard 3/4" conduit hubs enhance practicality and ease of installation for these reliable explosion-proof strobe lights.

Features:

  • UL Listed for Hazardous Areas: Designed for locations classified by the NEC, ensuring safe operation in Class I, div 1 & 2 Group C & D, Class II, div. 1 & 2 Group E, F, & G, and Class III, div. 1 & 2 environments.
  • Versatile Compliance: Meets NEMA standards 3, 4, 4X, 7CD, and 9EFG, making it adaptable to a range of industrial applications and conditions.
  • Marine-Rated Reliability: Suitable for use in saltwater environments, guaranteeing consistent and reliable performance.
  • Customized Visibility: Available in a variety of lens colors - Amber, Blue, Clear, Green, Purple, and Red - allowing for tailored visibility solutions.
  • Robust Construction: Crafted with a die-cast high-strength copper-free aluminum alloy housing for durability and resilience in challenging conditions.
  • Durable Finish: Baked powder epoxy finish enhances the overall robustness, ensuring longevity in demanding environments.
  • Stainless Steel Hardware: Incorporates stainless steel hardware for increased resistance to corrosion and wear, contributing to long-term reliability.
  • Smooth Assembly and Maintenance: O-ring sealed prestressed glass globe with double pitch acme threads facilitates smooth assembly and maintenance procedures.
  • Coordinated Illumination: Features a flash synchronizing circuit for synchronized and efficient flash patterns.
  • Optional Guard for Easy Maintenance: Optional guard design eliminates the need for removal during relamping, streamlining maintenance processes.
  • Practical Installation: Standard 3/4" conduit hubs ensure ease of installation, adding to the practicality of the strobe lights.

Explosion Proof Strobes Lights Tomar 7024BEP-Flange Mount

SYNCHRONIZING SPECIFICATIONS

SYNCHRONIZING CIRCUIT CONNECTION:

The connection involves a low-voltage, low-power customer setup, necessitating the installation of a single 22-gauge twisted pair run between each light. The system accommodates synchronization for up to 100 lights of different voltages, with a maximum span of 3000 feet between the furthest lights.

SYNCHRONIZING CIRCUIT FEATURES:

Within each light, there is an independent flash rate timing circuit that autonomously operates the lamp. Moreover, a bi-directional synchronizing circuit takes precedence over the internal timing circuit when connected to another light. In the event of synchronization among two or more lamps, the failure of any individual lamp does not impede the operation of other lamps.

Lights in this system offer operational flexibility, allowing them to be powered by different sources. For instance, a 120 VAC unit can seamlessly synchronize with a 12 VDC unit, showcasing the adaptability and versatility of the synchronizing circuit.

Specifications:

[table id=1296 /]

Explosion Proof Strobes Lights Tomar Certificate

Datasheet:
