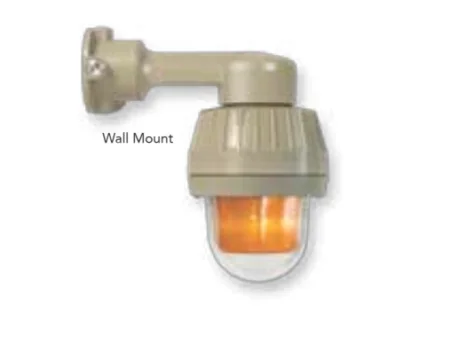

Explosion Proof Strobes Lights Tomar 7024BEP-Wall Mount
Features:
- UL Listed for Hazardous Areas: Designed for locations classified by the NEC, ensuring safe operation in Class I, div 1 & 2 Group C & D, Class II, div. 1 & 2 Group E, F, & G, and Class III, div. 1 & 2 environments.
- Versatile Compliance: Meets NEMA standards 3, 4, 4X, 7CD, and 9EFG, making it adaptable to a range of industrial applications and conditions.
- Marine-Rated Reliability: Suitable for use in saltwater environments, guaranteeing consistent and reliable performance.
- Customized Visibility: Available in a variety of lens colors – Amber, Blue, Clear, Green, Purple, and Red – allowing for tailored visibility solutions.
- Robust Construction: Crafted with a die-cast high-strength copper-free aluminum alloy housing for durability and resilience in challenging conditions.
- Durable Finish: Baked powder epoxy finish enhances the overall robustness, ensuring longevity in demanding environments.
- Stainless Steel Hardware: Incorporates stainless steel hardware for increased resistance to corrosion and wear, contributing to long-term reliability.
- Smooth Assembly and Maintenance: O-ring sealed prestressed glass globe with double pitch acme threads facilitates smooth assembly and maintenance procedures.
- Coordinated Illumination: Features a flash synchronizing circuit for synchronized and efficient flash patterns.
- Optional Guard for Easy Maintenance: Optional guard design eliminates the need for removal during relamping, streamlining maintenance processes.
- Practical Installation: Standard 3/4″ conduit hubs ensure ease of installation, adding to the practicality of the strobe lights.
Explosion Proof Strobes Lights Tomar 7024BEP-Wall Mount
SYNCHRONIZING SPECIFICATIONS
Specifications:
| Technical Data | ||
| Model No. | Description | Voltage |
| 7024BEP-WM | Wall Mount 3/4" hub | 12/24 VDC |
| Lamp Type | 6001 Xenon Strobe Lamp | |
| Light Output | 1080 effective candlepower (ECP)* | *ECP (Effective Candlepower) is the intensity that would appear to an observer if the light were burning steadily. |
| Flash Rate | 40 double flashes per minute | |
| Voltage and Amperage | ||
| 120 VAC 60 Hz | 1.0A ( 1.7A max ) | |
| 12/24 VDC | 2.5/1.2A average ( 8.0/4.0A max ) | |
| Power Supply Output 26 Watts | AC and DC Units -- | |
| 20 joules per flash. 2,000,000 Peak Candlepower** | **Peak Candlepower is the maximum light intensity generated by a flashing light during its light pulse. |
|
| Operating Temperature | –40º C to +65º C | |
| Temperature Code | T6 - All voltage and temperature ranges | |

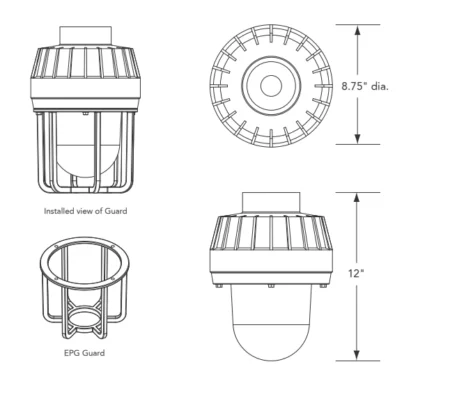

| Size and Weight | 12” tall x 8.75” dia. x 13 lbs | |
| Compliances | UL 1203 & 1638 | |
| Options | ||
| EPG | Guard |
