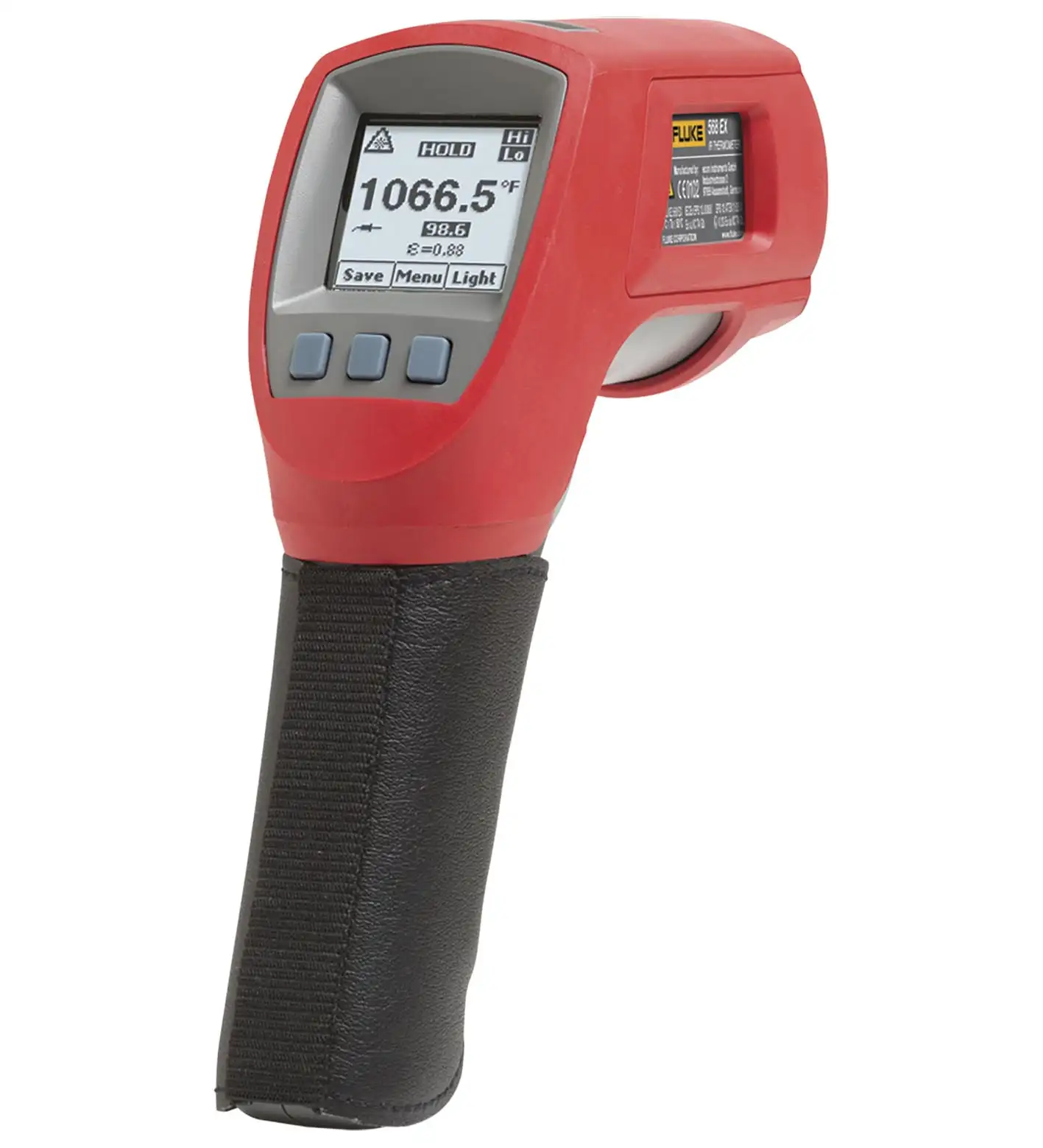

Fluke 568 EX ATEX / IECEx Intrinsically Safe Infrared Thermometer
The Fluke 568 EX is an intrinsically safe infrared thermometer designed for accurate, non-contact temperature measurement in hazardous areas (ATEX, IECEx, UKCA certified). Built for oil & gas, chemical, and industrial environments, it allows safe readings even into Zone 0 from Zone 1, making it essential for maintenance and safety teams.
Engineered with precision and reliability, the 568 EX measures temperatures from -40 °C to 800 °C (-104 °F to 1,472 °F) with ±1 °C accuracy, supports easy emissivity adjustment, and logs up to 99 data points with time and date. A rugged handheld design with single-point laser targeting ensures safe operation, even when measuring hard-to-reach or moving materials.
Key Features:
✅ ATEX / IECEx / UKCA certified for Zone 1/21
✅ Wide temperature range: -40 … 800 °C (-104 … 1,472 °F)
✅ IP-rated rugged housing for industrial use
✅ 50:1 distance-to-spot ratio with single-point laser
✅ Internal data logging of 99 points with timestamp
✅ Adjustable emissivity (0.10–1.00) for material accuracy
✅ Powered by approved AAA batteries, 4h continuous runtime
✅ Response time < 500 ms for fast readings
✅ Comes with Type K thermocouple probe for contact measurements
📦 Package Options:
🔹 Standard Kit: Fluke 568 EX, batteries, carrying case, leather grip, K-type thermocouple probe, documentation
Fluke 568 EX Technical Specifications:
| Feature | Details |
|---|---|
| Model | Fluke 568 Ex |
| Product Type | Intrinsically Safe Infrared Thermometer |
| Certifications | ATEX II 2G Ex ia op is IIC T4 Gb; IECEx Ex ia op is IIC T4 Gb |
| Hazardous Area Rating | Zone 1 (Gas), suitable for hazardous environments |
| Temperature Range (Infrared) | -40°C to +800°C (-40°F to +1472°F) |
| Accuracy | ±1% or ±1.0°C (whichever is greater) |
| Distance to Spot Ratio | 50:1 |
| Emissivity | Adjustable (0.10 to 1.00) |
| Laser Targeting | Dual laser for precise aiming |
| Display | Backlit LCD display |
| Response Time | < 500 ms |
| Intrinsically Safe Rating | Yes (for explosive atmospheres) |
| Battery Type | 2 x AA batteries |
| Battery Life | Up to 20 hours (typical use) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Weight | Approx. 0.55 lbs (250 g) |
| Protection Rating | IP54 |
| Applications | Oil & Gas, Chemical, Industrial Maintenance, Inspection |
Certifications & Compliance:
🔗 ATEX EPS 13 ATEX 1525X– Zone 1/21 certified
🔗 IECEx EPS 13.0006X – Intrinsically safe approval
🔗 UKCA CML 21UKEX21002X – Zone 1 compliance
🔗 Ex ia op is IIC T4 Gb – Intrinsic safety protection
🔗 Download Datasheet
Applications of Fluke 568 EX:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Labs
🔹 Manufacturing
What’s in the Box?
📦 1x Fluke 568 EX Infrared Thermometer
📦 1x K-Type Thermocouple Probe
📦 1x Leather Grip
📦 1x Carrying Case
📦 1x Set of Approved Batteries
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: 2–3 weeks (typical)
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What is the maximum temperature range?
It measures from -40 °C to 800 °C (-104 °F to 1,472 °F).
Is it certified for Zone 0 use?
Measurements can be safely taken into Zone 0 from Zone 1.
How many data points can it log?
Up to 99 readings with time and date.
What batteries does it use?
Two approved AAA batteries, lasting up to 4 hours of continuous use.
