Cenegex Hazpro DCx13-3 ATEX Camera

The Ultimate ATEX-Certified Camera for Hazardous Area Inspections

The Cenegex Hazpro DCx13-3 is a rugged ATEX-certified 13MP digital camera designed for safe use in hazardous Zone 2/22 explosive environments. It is built with a custom Android™ operating system. Therefore, it enables reliable image and video capture while maintaining site safety and data security. This camera, also known as the iCordex DCX13, is engineered not just to capture data, but to provide a compliant, reliable, and high-performance imaging solution for engineers and technicians working in the world's most demanding locations. It's the definitive choice for ensuring both operational excellence and uncompromising safety.

Featuring both glove-friendly pushbutton controls and a large 4.6” touchscreen, the DCx13-3 combines superior usability with performance. With 64GB of onboard storage, motorised focus, LED flash, and intrinsically secure USB data transfer, this camera delivers high-quality stills and HD 1080P movies safely in the field.

Key Features: From 13MP Clarity to Rugged Compliance

• ✅ High-Resolution Imaging: Capture crystal-clear 13-megapixel still images and full HD 1080p video, providing the detail needed for critical inspection and documentation tasks.
• ✅ Intrinsically Secure Data Handling: Utilizes a custom Android™ operating system and an intrinsically secure USB datalink for transferring files, eliminating the risks associated with Wi-Fi or Bluetooth in secure areas.

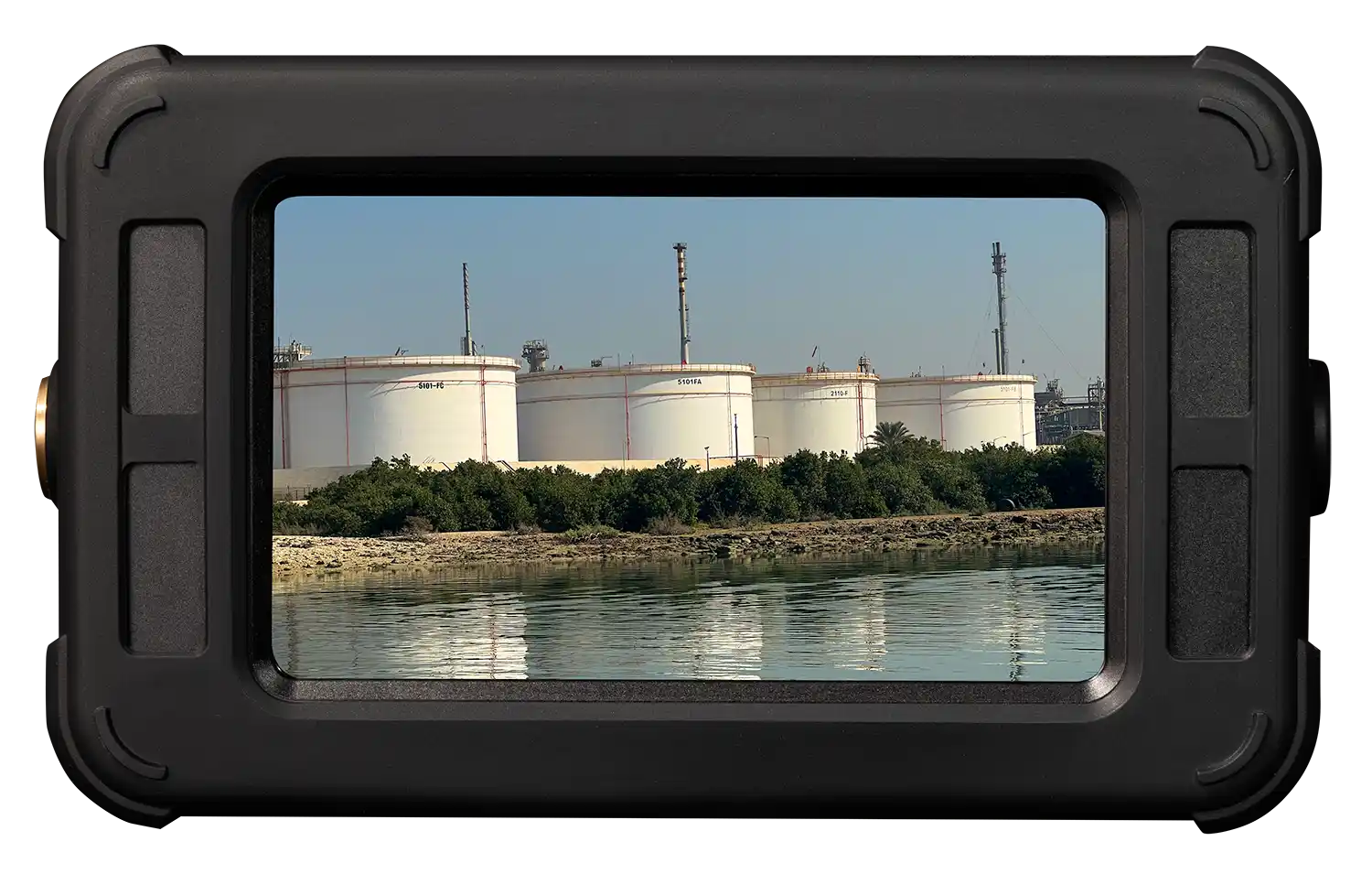

• ✅ Designed for the Field: Features a large 4.6” toughened glass touchscreen that is readable in sunlight, plus glove-friendly pushbuttons for seamless operation in any condition.
• ✅ Ample Onboard Storage: Equipped with 64GB of high-speed internal memory, providing plenty of space for images and videos without needing to swap cards in the hazardous area.
• ✅ ATEX certified for Zone 2/22
• ✅ Lightweight at 650g with twin lanyard points

Package Options:

• 📦 DCx13-3 ATEX Certified Digital Camera

Full Technical Specifications

Feature	Details
Camera Resolution	13MP (stills), HD1080P/HD720 (video)
Zoom	x8 digital zoom
Focus	Motorised automatic & manual focus
Display	4.6” touchscreen (glove-friendly)
Memory	64GB onboard storage
Flash	LED flash for low light and closeup capture
Battery	3.7V Lithium-Ion, 2000mAh
Casing	Aluminium with drop-resistant boot
Weight	650g / 1.4lb
Dimensions	160mm x 97mm x 30mm
Ingress Protection	IP54
Operating Temp	-20°C to +50°C
Certifications	ATEX II 3 G Ex nR IIC T6 Gc, II 3 D Ex tc IIIC T85°C Dc
Data Transfer	Intrinsically Secure USB Datalink
Included Accessories	Transport pouch, USB datalink cable, wrist strap, manuals

What's in the Box?

• 📦 1x Cenegex Hazpro DCx13-3 ATEX Certified Digital Camera
• 📦 1x Transport Pouch
• 📦 1x Intrinsically Secure Datalink Cable
• 📦 1x Wrist Strap
• 📦 1x Manuals

Certified for Global Hazardous Environments: ATEX vs. IECEx vs. Class I Div 1

Understanding hazardous area certifications is crucial for ensuring compliance and safety across different regions. The Cenegex Hazpro DCx13-3 is certified under the ATEX directive, which is mandatory for equipment used in explosive atmospheres within the European Union. While this specific model is rated for ATEX Zone 2/22, this certification guarantees the device has undergone rigorous testing to prevent it from becoming an ignition source in specified gas (Zone 2) or dust (Zone 22) environments. For operations in other parts of the world, similar standards like IECEx (International) and Class/Division (North America) apply, and selecting equipment with the correct certification is paramount for site safety.

Certifications & Compliance:

• 🔗 ATEX CERTIFICATE: ATEX II 3 G Ex nR IIC T6 Gc Tamb -20°C to +50°C / II 3 D Ex tc IIIC T85°C Dc Tamb -20°C to +50°C – safe for Zone 2/22 explosive atmospheres
• 🔗 Ingress Protection IP54 – resistant to dust and water splashes
• 🔗 Rugged aluminium casing with drop-resistant boot

Ideal Use Cases: Oil & Gas, Petrochemical, and More

The DCx13-3 excels in any Zone 2 or 22 environment where high-quality visual documentation is critical for maintenance, safety, and compliance reporting.

• 🔹 Oil & Gas: Perfect for routine inspections on offshore platforms, refineries, and pipelines where flammable gases may be present intermittently.
• 🔹 Offshore Platforms: Safely document asset integrity and corrosion monitoring in challenging marine environments.
• 🔹 Chemical Plants: Securely capture images for process safety management, vessel inspections, and equipment status without requiring a hot work permit.
• 🔹 Mining: Suitable for use in surface mining operations and other areas classified as Zone 22 due to the presence of combustible dust.
• 🔹 Industrial Inspection: An essential tool for maintenance and quality assurance in manufacturing facilities with hazardous zones, such as paint shops, distilleries, or food processing plants using powdered ingredients.

Ordering & Shipping Details

• 📦 Lead Time: 4 weeks
• 📍 Shipping Terms: Worldwide / Expedited Options
• 💳 Payment Options: Credit Card, PayPal, Net 30 Terms

FAQs:

Is the Cenegex Hazpro DCx13-3 suitable for Zone 1?
No, this model is certified for Zone 2/22 environments. For Zone 1, which has a higher risk of explosive atmospheres, you require a device with a higher level of protection.

What is the difference between ATEX Zone 2 and Zone 22?
ATEX Zone 2 is an area where an explosive atmosphere consisting of flammable gas, vapor, or mist is not likely to occur in normal operation, but if it does, it will persist for only a short period. Zone 22 is the equivalent classification for areas with combustible dusts.

What resolution does it support?
Still images up to 13MP; movies in HD 1080P and HD 720P.

Does it have storage expansion?
It includes 64GB onboard high-speed slot memory for extended use.

How do I transfer data?
Data transfer and charging are done via an Intrinsically Secure USB datalink, ensuring maximum security and preventing wireless data breaches.
