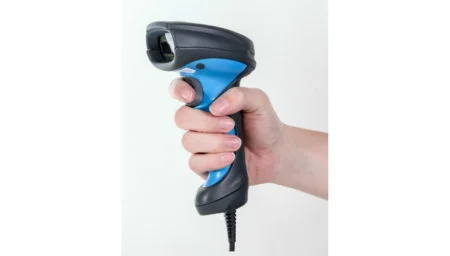

Extronics iScan 102 Intrinsically Safe Barcode Scanner is a certified ATEX Zone 2 cabled barcode scanner that is specifically built for usage in hazardous locations. This contributes to your company’s efficiency, productivity, and accuracy, as well as to the management of assets, inventory, and regulatory compliance. It is so quick that it can perform 500 scans per second.
Extronics iScan 102 is an easy-to-use and safe barcode scanner that may be used in tough hazardous area environments. You can use it in a variety of situations, including difficult-to-reach areas, because the scan line is larger than that of typical laser scanners, making it simpler to view. Additionally, it works in bright sunshine and can be recharged in either the hazardous or safe region.
Features:
- ATEX Zone 2
- IECEx
- Cabled barcode scanner
- IP65 fully ruggedized
- RS232/422 or USB interface
- High speed scanning
- Reads 1D, stacked PDF, and 2D barcodes
- Highly rugged and durable
- Flexible charging
Specifications:
| Certification | iSCAN102 and iSCAN102PDF: II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc iSCAN1022D: II 3G Ex ic IIB T4 Gc II 3D Ex ic IIIC T135°C Dc |
| Dimensions | H185 x L104 x W76 mm |
| Weight | 200g (handset without cable) |
| Ingress protection | IP65 |
| Storage temperature | -30°C to +70°C |
| Ambient operating temperature | -20°C to +50°C |
| Humidity | ± 95 %, non condensing |
| Ambient light resistance | 100,000 lux |
| Scanning frequency | iSCAN102 and iSCAN102PDF: 500 Hz iSCAN1022D: 60 Hz |
| Light source | Visible red light 630 nm |
| Reading distance | iSCAN102 and iSCAN102PDF: 20 to 850 mm iSCAN1022D: 30 to 400 mm |
| User feedback signals | 2 LEDs (operation status and read feedback) Audio beeper Vibration |
| Base station interface | RS232/RS422 or USB |
| Operating voltage | 5V, supplied via iSCANPSCABR or iSCANPSCABU |
Ordering Information:
Required Accessories:
Compatible cable to connect handset to power supply (iSCAN1XXCABX)
Compatible power supply cable / module (iSCANPSCABR or iSCANPSCABU)
Cable to connect handset to power supply:
ISCAN1XXCAB1 Scanner cable, RS232, 1.8 m
ISCAN1XXCAB2 Scanner cable, RS232, spiral, 3.8 m
ISCAN1XXCAB3 Scanner cable, USB 1.8 m
ISCAN1XXCAB4 Scanner cable, USB, spiral, 3.8 m
Power supply cable/module:
ISCANPSCABR Power supply cable/module, 3 m, DC 24V (8-30V), RS232, Zone 2/22
ISCANPSCABU Power supply cable/module, 3 m, DC 5V, USB, Zone 2/22 (supply from PC)
Certifications:
Resources:
