Extronics iSCAN2012D Bluetooth Handheld Barcode Scanner

Extronics iSCAN2012D is an ATEX Zone 1/2 and 21/22 certified Bluetooth handheld barcode scanner designed for usage in hazardous locations. Approved by IECEx. Among the outstanding features is the ability to read standard 1D, stacked PDF, and 2D codes, to swiftly and precisely record barcodes, to have an ergonomic grip, to be lightweight, to have audio and vibration feedback, and to be IP65 rated.

Features:

• ATEX Zone 1/2
• ATEX Zone 21/22
• IECEx
• Reads all standard 1D, 2D, and stacked PDF barcodes
• RS232/422 or USB interface
• Battery included
• Visible red light source
• Audio, and Vibration feedback
• Ergonomic grip
• Lightweight
• IP65 fully ruggedized

Benefits

Maximum mobility

• Read barcodes wherever you need with the wireless operation and Bluetooth link. Hazardous area recharging is also available, helping the iSCAN2012D fit seamlessly with your work patterns.

Increased productivity and throughput with high-speed scanning

• The iSCAN2012D records barcodes quickly and accurately, reaching speeds of up to 60 scans per second.

Easy to use

• Ergonomic grip and lightweight, well-balanced body make the iSCAN2012D easy to carry with you.

Read feedback

• Visual, audio, and vibration feedback lets the user know when a scan is successful, even in noisy industrial environments.

Highly reliable

• No need to worry about dropping the scanner; rigorously tested, the iSCAN2012D can withstand 50 drops onto concrete from a height of 2m.

Great for hard to reach locations

• The scan line is wider than that of typical laser scanners, which makes it more visible. Combined with the long reading distance, this makes it simple to read barcodes, even in awkward areas. The iSCAN2012D also works effectively in bright sunlight, up to 100,000 lux.

Specifications

Certification	Ex II 2G Ex ib IIB T4 Ex II 2G Ex ib IIB T4 Gb Ex II 2D Ex ib IIIC T135°C Ex II 2D Ex ib IIIC T135°C Db
Dimensions	H185 x L104 x W76 mm
Weight	260g (including battery)
Ingress protection	IP65
Bluetooth	V4.0, 2.402 ... 2.4830 GHz
	Wireless operating range up to 100 m (free view), batch function for expansion
	of the wireless radius, up to seven scanners communicate with one base station
Ambient operating temperature	-20°C to +50°C
Humidity	± 95 %, non condensing
Ambient light resistance	100,000 lx
Scanning frequency	60 Hz
Light source	Visible red light 630 nm
Reading distance	30 mm to 380mm
User feedback signals	2 LEDs (operation status and read feedback)
	Audio beeper
	Vibration

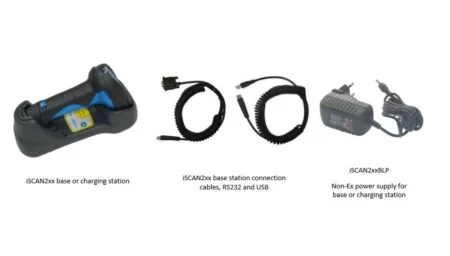

Base station interface	RS232/RS422 or USB
Battery	Lithium-ion battery, 3.6V, 2250mAh
Operating voltage	4.9V, supplied via iSCANPS

Certifications:

• ATEX Certificate
• IECEx Certificate

Resources:

• Datasheet
• Manual
• Range Operating Instructions
