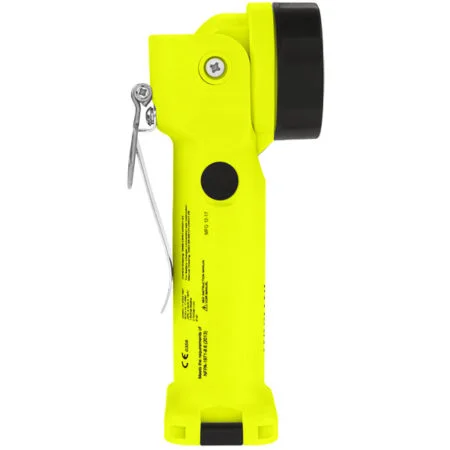

Intrinsically Safe Dual-Light Angle Light Nightstick XPP-5566GX

SKU: XPP-5566GX

INTRANT Intrinsically Safe Permissible Dual-Light Angle Light – Green is a certified Zone 0 and Class I Division 1 flashlight, floodlight and dual-light. It is also cULUS, ATEX, IECEx, and INMETRO listed Intrinsically Safe.It also offers market applications suitable to use in hazardous work environments, fire, rescue, industrial and automotive.With protection class IP 67 dust proof / water proof.Other excellent features included: glass-filled nylon polymer housing, dual body switches, heavy-duty stainless-steel pocket clip, battery charge status indicator.



Note: Minimum of 4 units to order

Hazardous Area Rating

ATEX Rating

IECEx Certified

$13378

Shipping Time: 3-7 days

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

Intrinsically Safe Dual-Light Angle Light Nightstick XPP-5566GX

Features:

  • ATEX Zone 0
  • CLASS I DIV 1: GRPS A-D T4
  • CLASS II & III DIV 1: GRPS E-G T135°C
  • CLASS I ZONE 0: AEx ia IIC T4 Ga
  • ATEX Certification: I M 1 Ex ia op is I Ma
  • ATEX Certification: II 1 G Ex ia op is IIC T4 Ga
  • IECEx Certification: Ex ia op is I Ma
  • IECEx Certification: Ex ia op is IIC T4 Ga
  • Glass-filled nylon polymer housing
  • (TIR) Total Internal Reflection lens designed to optimize lumen output and beam pattern
  • cULus, ATEX and IECEx listed Intrinsically Safe
  • LED technology – 50,000+ hours
  • 8 User-selectable brightness settings for the Flashlight and Floodlight including a 20 Lumen Survival Mode
  • High-efficiency deep parabolic reflector creating a sharply focused flashlight beam
  • Dual-light (both the flashlight & floodlight on at the same time) provides for maximum lighting versatility and user safety
  • Glass-filled Nylon Polymer housing

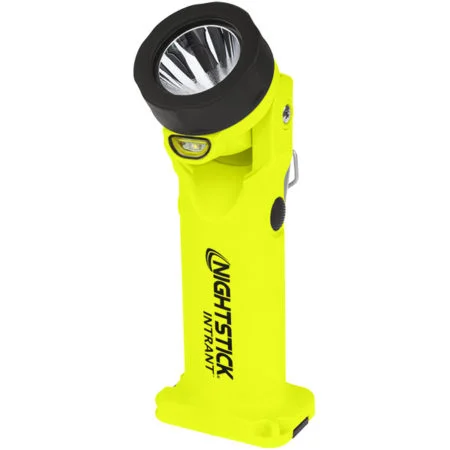

  • Dual body switches

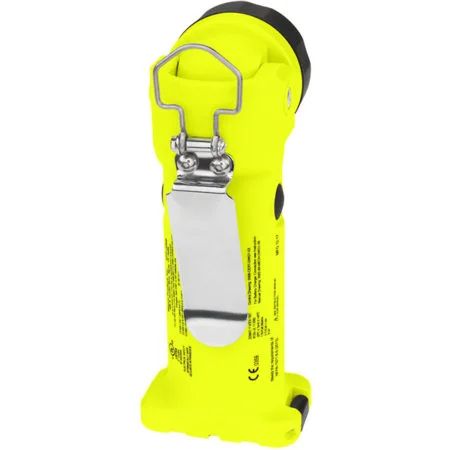

  • Heavy-duty stainless-steel pocket clip
  • Battery charge status indicator (for use only with rechargeable battery)
  • IP-67 Dustproof / Waterproof
  • Impact & chemical resistant
  • Meets requirements of NFPA-1971-8.6 (2013)

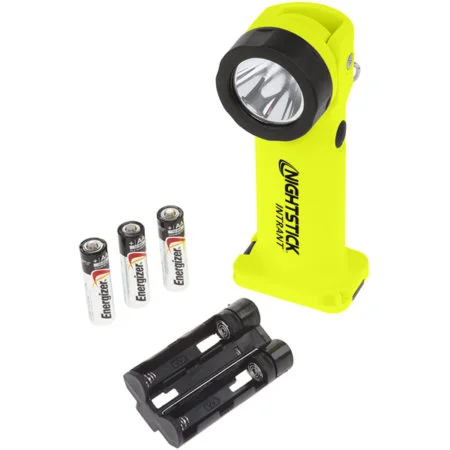

  • 3 AA batteries (included)
  • Upgradeable to rechargeable by adding Lithium-ion Battery Pack, Charger and AC and/or DC Power Supply
  • Limited Lifetime Warranty

Introducing Intrinsically Safe Dual-Light Angle Light Nightstick XPP-5566GX

Certified Zone 0 and Class I Division 1 flashlight, floodlight, and dual-light. It is also cULUS, ATEX, IECEx, and INMETRO listed Intrinsically Safe. It also offers market applications suitable to use in hazardous work environments, fire, rescue, industrial and automotive.

The INTRANTs flashlight pivots 90 degrees up and down with a 45 degree downward angled floodlight. The flashlight setting offers user-selectable brightness settings of 200, 110, and 60 Lumens with a 401-meter beam distance. The ultra-tight beam is perfect for cutting through smoke and lighting up objects at great distances. The floodlight setting has user-selectable brightness settings of 100, 40, and a “Survival Mode” of 20 lumens that provides just enough light in an emergency situation with a run-time of 33 hours.

The Dual-Light mode allows the user to simultaneously see objects at a distance or through the smoke, as well as see the ground in front of them as they walk or work. The INTRANT is powered by 3 included AA batteries and can be upgraded to a rechargeable model by adding the optional rechargeable Lithium-ion battery pack and the charger. The INTRANT is IP-67 dustproof/waterproof and meets the requirements of NFPA-1971-8.6 (2013). Shop Now!

Specifications

UPC:017398806282
Dual-Light:Yes
Multi-FunctionYes

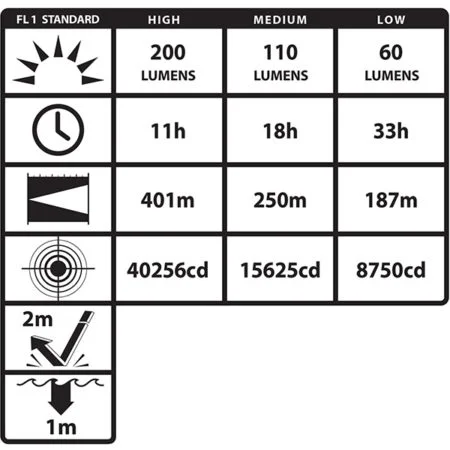

Flashlight Lumens:200 / 110 / 60
Floodlight Lumens:100 / 40 / 20
Dual-Light Lumens:205
Beam Distance:401 m / 250 m / 187 m
Candela:40,256 / 15,625 / 8,750
Drop Rating:2 m
Dust/Water Rating:ANSI IP-67 Dustproof / Waterproof
Flashlight Runtime:11 / 18 / 33 h
Floodlight Runtime:11 / 18 / 33 h
Dual-Light Runtime:11
Floodlight Color:White
Type of Floodlight:Solid
Switch Function:Dual Body Switches - High/Medium/Low/Strobe Flashlight, High/Medium/Survival Floodlight, Dual-Light
Length:6.6 in (168 mm)
Width:2.6 in (66 mm)
Depth:2.6 in (66 mm)
Weight:11.1 oz (315 g)
Head Diameter:2.1 in (53 mm)
Light Source:LED
Case Material:Glass-filled nylon polymer
Body Color:Green
Quantity of Batteries:3
Power Source:AA Batteries (included)
Package Contents:Light, AA Battery Carrier & 3 AA Batteries
US Patent: 9,713,217
US Patent:10,119,663
Warranty:Limited Lifetime

Intrinsically Safe Dual-Light Angle Light Nightstick XPP-5566GX Certifications:
