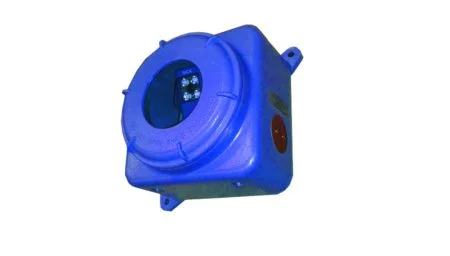

Extronics iSCAN301S combines the latest 1D and 2D image code reader technology with a rugged, ATEX Zone 1/2 and 21/22 certified fixed barcode scanner ideal for usage in hazardous locations. Approved by IECEx. The iSCAN301S is wall-mountable, and configuration is a breeze with the accompanying software. Integrated lighting enables reliable and accurate code reading in low-light environments, and a choice of interfaces enables rapid implementation with broad compatibility.

Features:

• ATEX Zone 1/2
• ATEX Zone 21/22
• IECEx
• 1D and 2D Image Code Reader 40 to 1,500 mm read distance (ICR620S)
• Range of interfaces for wide compatibility
• Accurate and reliable
• -20ºC to +55ºC
• Fully rugged IP66

Benefits

Highly reliable

• The iSCAN301 uses a physical trigger input function, rather than a code trigger function. This increases the reliability of first time transfer on both stationary and moving objects.

Reads curved objects

• Powerful integrated, controllable LED illumination means that curved objects can be homogenously lit and codes read clearly, without the need for an external light source.

Simple configuration

• Easy to configure via the Ethernet interface. The live image output makes it easy to align and set up in the field.

Serial Interface

• The scanned barcode is output over the RS232 interface.

Advanced accuracy

• The iSCAN301 has a high read rate even with difficult low contrast or poorly printed codes. This makes it ideal for DPM (Direct Print Marking) applications.

Specifications

Certification	Ex II 2 G Ex d IIC T5 or T6 Gb
	Ex II 2 D Ex tb IIIC T85°C or T100°C Db, IP66
Dimensions	H224 x W224 x D152 mm (including mounting flanges)
	Mounting centres 198 x 198 mm (11mm diameter)
Weight	Approx. 5.5kg
Ingress protection	IP66
Enclosure material	Grade LM6 Cast Alloy Epoxy Coated
Ambient operating temperature	-20°C to +55°C
Humidity	90 %, non condensing
Ambient light resistance	2,000 lx
Image recording rate	60 Hz at 752px x 480px (WVGA resolution)
Light source	Illumination LEDs:
	Visible red light (λ= 617 ± 15nm)
	Visible blue light (λ= 470 ± 15nm)
Electrical connection	21x AKZ 2.5 terminals for component cores for power and data
Mechanical connection	2 off M20 cable entries in bottom face
	Cable glands quoted upon request (Cable spec required)
Host data interface	Serial: RS232 or RS422 300baud to 115.2 Kbaud
	CAN: 20kbit/s to 1Mbit/s
Configuration port	Ethernet: 10/100 Mbit/s
Operating voltage	10 – 30V
Power consumption	Max. 3W
Code qualification	ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 18004, ISO TR 29158/AIM DPM
Scanning operation	Laser can operate as always on or via control signal.
	Control signal can be hardware or a software trigger.
	Client to configure - refer to user manual.
