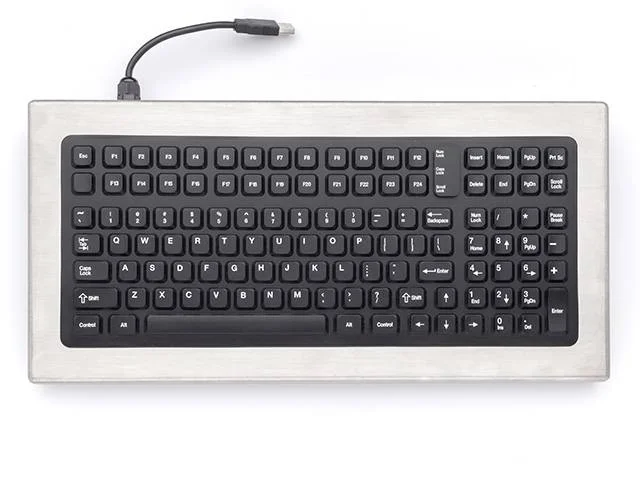

iKey DT-1000-IS Industrial Keyboard

SKU: DT-1000-IS
(1 customer review)

DT-1000-IS is an intrinsically safe full-size desktop keyboard. Other excellent features include stainless steel case, industrial silicone rubber keypad, 10-key numeric pad, 14-key functionality, 24 function keys, PS/2 configurations, optical isolated barriers, and bulkhead cables.

Hazardous Area Rating

$1,81053

Shipping Time: 1-2 weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

An industrial keyboard that is certified for use in hazardous regions classified as Class I, II, III, Division I, Groups C, D, E, F, and G. The DT-1000-IS keyboard features 102 keys, a 10-key numeric keypad, and 24 function keys. FM Approvals protect the DT-1000-IS keyboard with a durable stainless steel chassis and a silicone rubber keypad.

DT-1000-IS from iKey. The bulkhead cables and optically isolated barriers of the Intrinsically Safe Industrial Keyboard provide complete safety in hazardous environments. The DT-1000-IS is NEMA 4X-rated, which means it is resistant to dust, dirt, water, and corrosive liquids. The DT-1000-IS is a hazardous location-rated device. The Daisy Data P070-000294-01 EX210 Isolation Barrier or the iKey PS2-IS-BARRIER must be used in conjunction with this keyboard. Additionally, this assembly contains no serviceable components.

Features:

  • Class I, II, and III, Division I, Groups C, D, E, F, and G
  • 10-Key Numeric Pad
  • 114-Key Functionality
  • 24 Function Keys
  • PS/2 configurations available
  • Material: industrial silicone rubber
  • Life: 10 million cycles
  • 100% Humidity Resistant
  • optical isolated barriers
  • bulkhead cables

Specifications:

CERTIFICATIONSNEMA 4X UL60950, FCC Part 15 Class B Factory Mutual Class I, II, & III, Division I, Groups C, D, E, F, & G
SHOCK3x11 ms pulses of 50g on each of 3 axes
CABLELENGTH: 5 feet from keyboard to Bulkhead Connector
KEY SWITCHMATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4 mm) ACTUATION FORCE: 7.03 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with mechanical snap
VIBRATIONPOWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
COMPATABILITYPS/2: All Windows Operating Systems
TEMPERATURE RANGESTORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
WEIGHT5.25 lbs +/- 0.10 lbs (2.38 kg +/- 0.05 kg)
WARRANTY 1 year limited warranty
HUMIDITY100% Humidity Resistant
DIMENSIONS16.25" x 7.88" x 1.8" (w-h-d) 412.8 mm x 200.2 mm x 45.7 mm
MODEL NUMBERSDT-1000-IS: With PS/2 cable

Certifications:

Resources:

More Options For You:

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories


iKey PS2-IS-BARRIER

SKU: PS2-IS-BARRIER

Intrinsically Safe Barrier iKey PS2-IS-BARRIER is approved for use in Class I, II, III, Division 1 hazardous areas. PS2-IS-Barrier isolation is provided between the host PC and the keyboard or pointing device, as well as between the signal and power supply connections on the hazardous location side. Interface connections are made by industry-standard connectors. In particular, the connection from the PC uses a mini-DIN 6 pin socket, while the connection to the keyboard or PS/2 device in the hazardous location uses a mini-DIN 7 pin socket. Shop Now!

Brand: iKey

In Stock 1- 2 weeks

$38816

Reviews & Questions

Share your thoughts!

5 out of 5 stars

1 review

Let us know what you think...

What others are saying

  1. GailNate_OilGas78

    Rugged fully sealed industrial keyboard

    GailNate_OilGas78

    Nothing beats iKey DT-1000-IS when it comes to functionality and performance. This keyboard is built with high grade industrial silicone and stainless steel case. Keys are extremely responsive and soft to touch. Can’t complain, this is what we need in Class 1 Division 1 hazardous areas.
