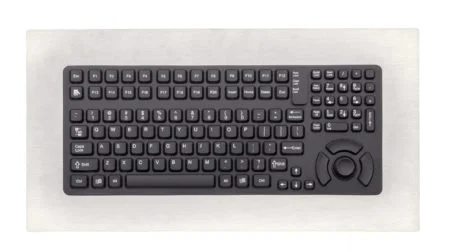

iKey PM-5K-FSR-IS Industrial Keyboard

SKU: PM-5K-FSR-IS
(1 customer review)

Panel Mount Industrial Keyboard w/ integrated FSR Pointing Device Intrinsically Safe A device like STAINLESS HOUSING is approved for use in hazardous areas as a Class 1, 2, and 3 device under Division 1, Groups C, D, E, F, and G. This device complies with NEMA 4X requirements. Additional features include an integrated force-sensing resistor (FSR) pointing device, 10-key numeric keypad, PS/2 configurations, optical isolated barriers, and bulkhead cable.

Hazardous Area Rating

$2,36316

Shipping Time: 1-2 weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

Force sensing resistors (FSR) are built inside a stainless steel enclosure with optically separated barriers and bulkhead cables that provide total protection for the PM-5K-FSR.IS keyboard. A Factory Mutual Approval has been granted to it for use in Class 1, Class 2, and Class 3, Division 1, Groups C, D, E, F, and G, respectively.

The PM-5K-FSR-IS is designed for use in hazardous locations. The keyboard must be used in
combination with either the Daisy Data P070-000294-01 EX210 Isolation Barrier or the iKey PS2-IS-BARRIER.

Features:

  • Class I, II and III, Division I, Groups C, D, E, F, and G
  • PM-5K-FSR-IS is an Intrinsically Safe Peripheral (IS)
  • 10-Key Numeric Pad
  • Integrated Force Sensing Resistor Pointing Device, with improved design and increased sensitivity
  • PS/2
  • Material: industrial silicone rubber
  • Life: greater than 10 million cycles
  • non-corrosive stainless steel
  • optical isolated barriers
  • bulkhead cables

Specifications:

CERTIFICATIONSNEMA 4X; UL60950, FCC Part 15 Class B Factory Mutual Class I, II, & III, Division I, Groups C, D, E, F & G
SHOCK3x11 ms pulses of 50g on each of 3 axes
CABLELENGTH: 5 feet from keyboard to Bulkhead Connector DESIGN: 2 cables (providing separate keyboard and mouse connections)
KEY SWITCHMATERIAL: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
VIBRATIOPOWER SPECTRAL DENSITY: 0.04g^2/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
POWER Reference Drawing Number IS-97107 for Power Requirements; Installation should be in accordance w/ NEC, Article 504, ANSI, NFPA 70
COMPATABILITY PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems
TEMPERATURE RANGE STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)
WEIGHT 6.75 lbs +/- 0.10 lbs (3.06 kg +/- 0.05 kg)
WARRANTY 1 year limited warranty
HUMIDITY 100% (when properly installed)
DIMENSIONS 17.70" x 9.20" x 1.58" (w-h-d) 449.6mm x 233.7mm x 40.1mm
MODEL NUMBERS PM-5K-FSR-IS
