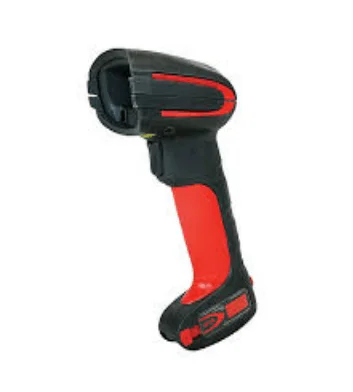

The Intrinsically Safe Industrial Scanner Honeywell Granit 1910i1D is an upgradeable industrial-grade area-imaging scanner that is intended to endure the rigors of tough working conditions. Additionally, the IP65-rated Granit 1910i1D scanner is constructed to withstand 5,000 1 m (3.3 ft) tumbles and 50 drops to concrete from a height of 2 m (6.5 ft), even at a temperature of -30°C (-22°F). As a consequence, organizations may anticipate decreased device downtime and an overall cheaper cost of ownership.
Among the outstanding advantages of the Granit 1910i1D scanner include omnidirectional scanning of 1D codes for increased efficiency, as well as the potential to upgrade the device to 2D scanning at a reasonable cost as data gathering requirements change.
The Granit 1910i1D scanner, powered by Honeywell’s sixth-generation Adaptus imaging technology and its unique decoding architecture, delivers the same remarkable barcode reading performance as the best-in-class Xenon series area-imaging scanners. From badly printed and damaged codes to low-density linear codes, the Granit 1910i1D scanner is designed to read practically all 1D and PDF417 barcodes effortlessly – maximizing operator efficiency with better lighting, precise laser targeting, and an enlarged depth of field.
Additionally, operators who rely on scanner input to confirm “excellent reads” sometimes have difficulties due to noisy machinery and dim lighting. The Granit 1910i1D scanner overcomes this obstacle with bright LEDs, increased beeper loudness, and vibrating feedback, assuring speedy decode feedback and avoiding duplicate scanning.
Features:
- FCC Class B certified
- UL and C-UL listed
- CSA
- NRTL safety certified
- CB Scheme certified
- LED Safety certified
- LASER Safety certified
- Honeywell Adaptus 6.0 imaging technology
- Red Scanner (1910IER-3)
- 1D and PDF 417 barcode scanning
- USB Kit
- ER Focus
- USB Type-A 3M Straight Cable (CBL-500-300-S00)
- With Vibrator
- Assembled in Mexico
- IP65
Granit 191Xi — Water Resistance
The Granit 1910i1D scanner was designed exclusively for applications that require high-performance scanning and place a premium on durability. It is the ideal choice for organizations that operate in unexpected environments.
FEATURES and BENEFITS
- The custom-built IP65-rated housing is able to withstand 5,000 1 m (3.3 ft) tumbles and 50 drops from 2 m (6.5 ft) at -30°C (-22°F), reducing service costs and increasing device uptime.
- Adaptus 6.0 imaging technology provides aggressive barcode reading and unrivaled accuracy, while the scanner feedback is enhanced for use in extreme industrial environments.
- The TotalFreedom area-imaging development platform enables the loading and linking of multiple applications to enhance image decoding, data formatting, and image processing – eliminating the need for host system modifications.
- With outstanding performance on poor-quality and damaged barcodes, the scanner helps users maintain productivity by providing a worry-free scanning solution that minimizes manual entry.
- Scans out-of-reach items with ease and allows users to scan 20 mil linear codes out to 75 cm (29.5 in).
Specifications
MECHANICAL | |
Dimensions (L x W x H): | 133 mm x 75 mm x |
195 mm (5.2 in x 2.9 in x 7.6 in) | |
Weight: | 300 g (10.6 oz) |
ELECTRICAL | |
Input Voltage: | 4.0V DC to 5.5V DC |
Operating Power: | 2.35 W (470 mA @ 5V DC) |
Standby Power: | 0.5 W (100 mA @ 5V DC) |
Host System Interfaces: | USB, Keyboard Wedge, RS-232 TTL |
ENVIRONMENTAL | |
Operating Temperature*: | -30°C to 50°C |
(-22°F to 122°F) | |
Storage Temperature: | -40°C to 70°C |
(-40°F to 158°F) | |
Humidity: | Up to 95% relative humidity, non-condensing |
Drop: | Designed to withstand 50 2 m (6.5 ft) drops to concrete at -30°C (-22°F) |
Tumble: | 5,000 1 m (3.3 ft) tumbles |
Environmental Sealing: | IP65 |
Light Levels: | 0 to 100,000 lux (9,290 foot-candles) |
ESD: | ±20 kV air discharge, ±8 kV contact discharge |
SCAN PERFORMANCE | |
Scan Pattern: | Area Imager (838 x 640 pixel array) |
Motion Tolerance: | Up to 610 cm/s (240 in/s) at 16.5 cm (6.5 in) and 381 cm/s (150 in/s) at 25 cm |
(10 in) for 13 mil UPC | |
Scan Angle: | ER Focus |
Horizontal: | 31.6° |
Vertical: | 24.4° |
Symbol Contrast: | 20% minimum reflectance difference |
Pitch, Skew: | 45°, 65° |
Warranty: | Three-year factory warranty |
* With industrial-grade cable ordered separately. |
TYPICAL PERFORMANCE* | EXTENDED RANGE (ER) |
NARROW WIDTH | |
7.5 mil Code 39 | 48 mm – 310 mm (1.9 in – 12.2 in) |
13 mil UPC | 15 mm – 543 mm (0.6 in – 21.4 in) |
20 mil Code 39 | 15 mm – 749 mm (0.6 in – 29.5 in) |
6.7 mil PDF417 | 69 mm – 226 mm (2.7 in – 8.9 in) |
Resolution 1D Code 39 | 5 mil (0.127 mm) |
* Performance may be impacted by barcode quality and environmental conditions. |
Certifications:
- FCC Certificate
- NRTL Safety Certificate
- EU Declaration of Conformity
- Safety Certificate IEC CB
- IEC LASER Certificate
- IEC LED Certificate
archeal –
Good scanner with great result. This rugged scanner gives you outstanding performance even on poor-quality and damaged barcodes. It scans easily and also scans out-of-reach items.
