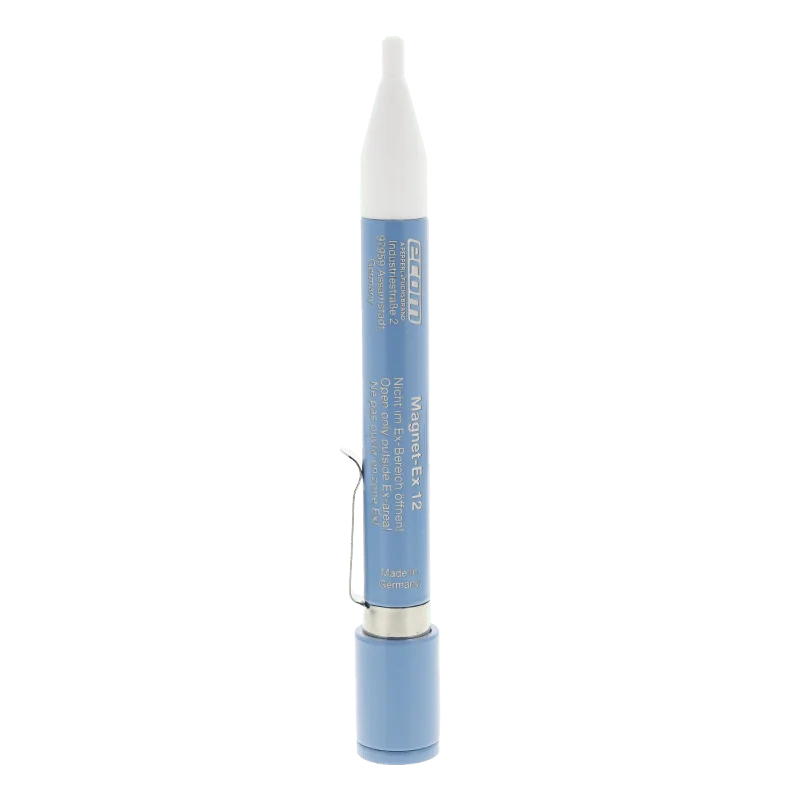

Intrinsically Safe Pencil Ecom Magnet-Ex 12

SKU: 70125482
(1 customer review)

Intrinsically Safe Pencil Ecom Magnet-Ex 12 certified Class I, Division 1 is an intrinsically safe pencil-sized magnet probe. This device is designed to detect magnetic fields in Ex-hazardous areas. It is used for testing solenoid valves, relays, transformers, and flow meters in Ex-hazardous areas. Shop Now!

ATEX Rating

$27950

Shipping Time: 6-8 weeks

Need faster options? Contact our Hazardous Areas Experts now for quick alternatives!

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

Intrinsically Safe Pencil Ecom Magnet-Ex 12

Features:

  • Class I, Division 1
  • ATEX Zone 1
  • No contact with test object required
  • Optical indication
  • Highly sensitive
  • Resistant to dirt
  • IP Protection rating IP54
  • Weighs about 60 g (~ 2.1 oz) with batteries

Features

  • No contact with test object required
  • Resistant to dirt
  • Optical indication
  • Highly sensitive

Technical Data

  • IP Protection rating IP54
  • There is no contact with the test object required
  • Weighs about 60 g (~ 2.1 oz) with batteries

Scope of Supply

  • Magnet-Ex 12
  • Batteries
  • Documentation

Introducing the Intrinsically Safe Pencil Ecom Magnet-Ex 12

The Intrinsically Safe Pencil Ecom Magnet-Ex 12 is certified for Class I, Division 1, as an intrinsically safe pencil-sized magnet probe. This device’s design detects magnetic fields in Ex-hazardous areas. Also, experts utilize the device for testing solenoid valves, relays, transformers, and flow meters in Ex-hazardous areas.

With this unique deviceyou can detect whether a solenoid valve is electrically activated–within seconds. Connection to electronic circuitry or opening of terminal boxes is rendered unnecessary.

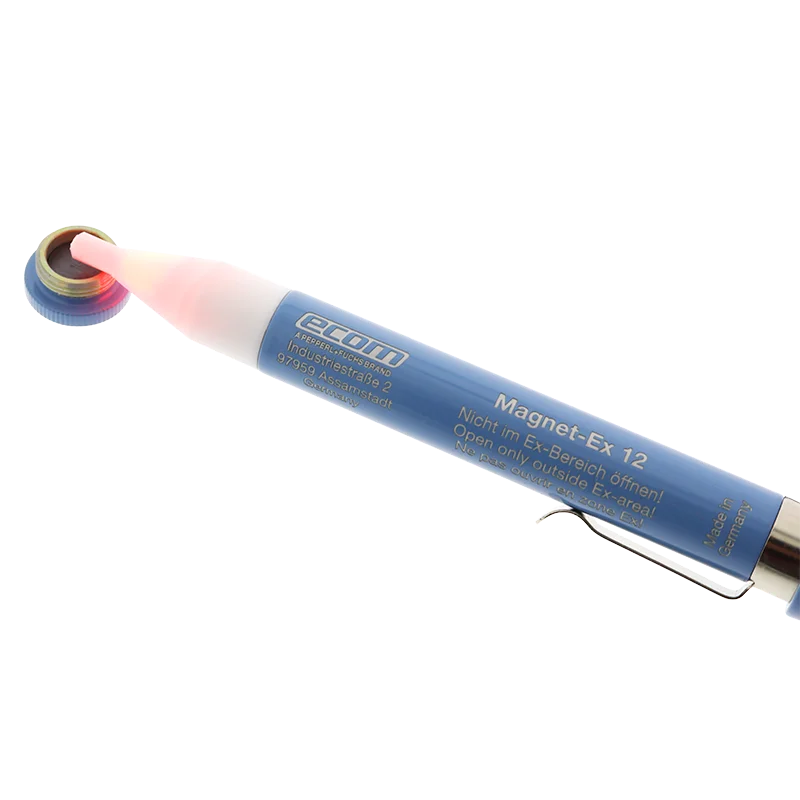

The pencil has sensitive probe points that only need to be brought near the coil of a solenoid valve. If the probe shows a red light, this indicates that the magnet is activated. Also, the pencil comes with an integral, securely fitted test magnet, so it’s not easily lost. Users utilizing the magnet can carry out tests to establish the working state of both unit and the batteries.

Technical Specifications:

MAGNETIC FIELD TYPESalternating, direct and permanent fields
DETECTIONno contact with test object required
AMBIENT TEMPERATURE-20 °C … +50 °C (-4 °F … +122 °F)
STORAGE TEMPERATURE-40 °C … +60 °C (-40 °F … +140 °F)
POWER SUPPLY2x LR03 according to IEC (type approved)

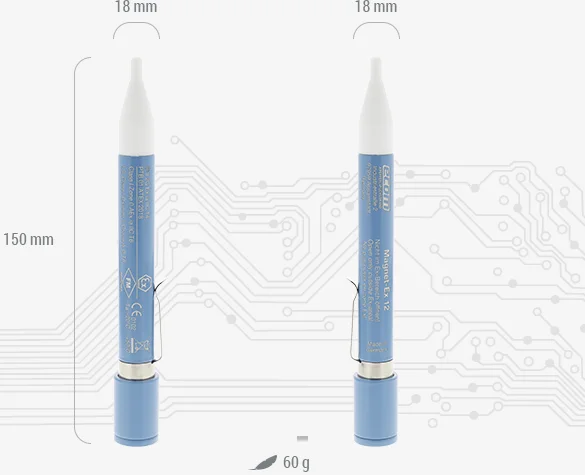

DIMENSIONS150 mm x 18 mm (L x ø)(~ 5.9" x 0.7")
WEIGHTapprox. 60 g (~ 2.1 oz) with batteries
PROTECTION RATINGIP54

Intrinsically Safe Pencil Ecom Magnet-Ex 12 Certificates:

Intrinsically Safe Pencil Ecom Magnet-Ex 12 Other Resources:

Reviews & Questions

Share your thoughts!

5 out of 5 stars

1 review

Let us know what you think...

What others are saying

  1. Mikel

    Mikel

    Very portable and convenient to use, the Intrinsically Safe Pencil Ecom Magnet-Ex 12 Class I, Division 1 has a highly sensitive tip for testing which is really useful when testing and detecting magnetic fields in Ex-hazardous areas.
