Intrinsically Safe Pointing Devices
iKey HP-DT-FSR-NI FSR Pointing Device
Class 1 Division 2PS2 connection
$562.73In Stock
Your Global Authority In Hazardous Areas
Your Global Authority In Hazardous Areas
Your cart is empty.

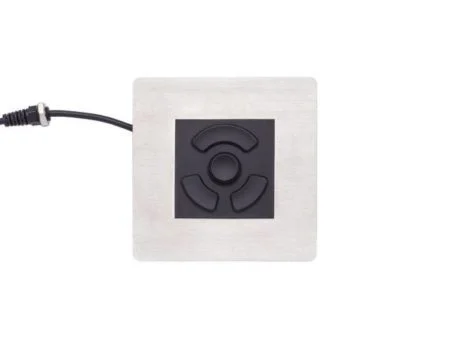

Intrinsically Safe Pointing Device iKey HP-PM-FSR-IS PS/2 is a certified Class I, II, and III, Division I, Groups C, D, E, F, and G device that offers improved sensitivity and increased durability. With excellent features, no protruding parts, and no moving elements, FSR can withstand spills, washdowns, and contaminants. It also completely sealed NEMA 4X design.
It is fully TAA- Compliant and strictly adheres to the Trade Agreements Act (19 U.S.C. §§ 2501–2581)
| Country of Origin | United States (US) |
| Hazardous Area Rating | Class 1 Division 1 |
Now shipping the newly redesigned force-sensing resistor(FSR) pointing device Intrinsically Safe Pointing Device iKey HP-PM-FSR-IS PS/2 is certified Class I, II and III, Division I, Groups C, D, E, F, and G device that offers improved sensitivity and increased durability.
The Intrinsically Safe Pointing Device iKey HP-PM-FSR-IS PS/2 low-profile design contains no protruding parts that might break, and there are no moving components to collect dust. Due to its completely sealed NEMA 4X design, the FSR can withstand spills, washdowns, contaminants, and the impacts of an industrial environment.
It is fully TAA - Compliant and strictly adheres to the Trade Agreements Act (19 U.S.C. §§ 2501–2581)
| CERTIFICATIONS | NEMA 4X, CE UL60950, FCC Part 15 Class B Factory Mutual Class I, II and III, Division I, Groups C, D, E, F, and G |
| SHOCK | 3x11 ms pulses of 50g on each of 3 axes |
| CABLE | LENGTH: 5 feet from keyboard to Bulkhead Connector DESIGN: PS/2 |
| KEY SWITCH | MATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 in. ACTUATION FORCE: 200g (+/- 20g) FEEDBACK: Tactile with mechanical snap |
| VIBRATION | POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
| COMPATIBILITY | PS/2: All Windows Operating Systems |
| TEMPERATURE RANGE | STORAGE: -40C to +70C (-40F to 158F) OPERATING: -20C to +60C (-4F to 140F) |
| WEIGHT | 1.25 lbs (0.57 kg) |
| WARRANTY | 1 year limited warranty |
| HUMIDITY | 100% (when properly installed) |
| DIMENSIONS | 6.0" x 6.0" x 1.12" (w-h-d) 152.4mm x 152.4mm x 28.4mm |
| MODEL NUMBERS | HP-PM-IS: With PS/2 cable |
