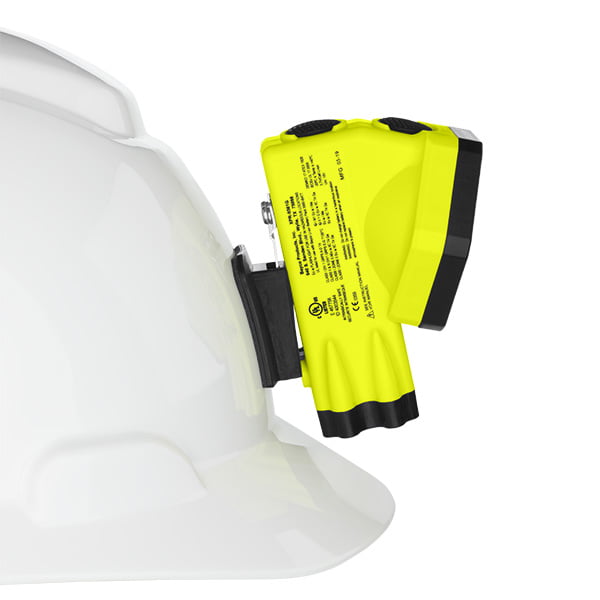

Intrinsically Safe Rechargeable Cap Lamp XPR-5561GC

SKU: XPR-5561GC

The intrinsically safe XPR-5561GC rechargeable cap lamp features a spotlight, floodlight, and dual-light functionality. Light up your worksite with high beams at 90 lumens and low beams at 65 lumens.

*THIS PRODUCT IS AVAILABLE INTERNATIONALLY ONLY (ATEX CERTIFICATION)

Weight 0.37 lbs
Dimensions 3.46 × 1.35 × 2.43 in
ATEX Rating
IECEx Certified
Hazardous Area Rating

$18700

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

Intrinsically Safe Rechargeable Cap Lamp With Mount Nightstick XPR-5561GC

  • LED technology
  • Spotlight / Floodlight / Dual-Light™
  • 2 User-selectable brightness settings on the spotlight
  • Dual-light (both the spotlight & floodlight on at the same time) provides for maximum lighting versatility and user safety
  • Glass-filled nylon polymer housing with a 304 stainless steel bezel
  • Dual body switches
  • Heavy-duty stainless-steel pocket clip
  • Impact & chemical resistant
  • Integrated rechargeable Lithium-ion battery
  • Limited Lifetime Warranty

Introducing The Intrinsically Safe Rechargeable Cap Lamp w/ Mount Nightstick XPR-5561GC

The floodlight emits a 70-lumen beam on high and up to 247 hours of runtime in “Survival Mode.” Dual-light mode emits a 140-lumen beam with a 9-hour runtime. It’s cULus, ATEX, IECEX, and MSHA certified intrinsically safe, as well as waterproof and dustproof. An integrated rechargeable lithium-ion battery, mountable charger, zero-band helmet mount, and AC/DC cords are included.

Specifications:

UPC: 17398806916
Dual-Light:Yes
Multi-Function: Yes
Spotlight Lumens:90 / 65
Floodlight Lumens:70 / 5
Dual-Light Lumens:140
Beam Distance:108 m / 58 m
Candela:5,500 / 1,571
Drop Rating: 2 m
Dust/Water Rating: ANSI IP-67 Dustproof / Waterproof
Spotlight Runtime: 13 / 20
Floodlight Runtime: 12 / 247
Dual-Light Runtime: 9
Floodlight Color:White
Type of Floodlight: Solid
Switch Function: Dual-body switches - Spotlight (High/Low), Floodlight (High/Low), Dual-light
Length: 3.46 in (88 mm)
Width: 1.35 in (34 mm)
Depth: 2.43 in (62 mm)
Weight: 6.0 oz (170 g)
Head Diameter: 2.53 in (60 mm)
Light Source: LED
Case Material: Glass-filled nylon polymer
Body Color:Green / Black
Quantity of Batteries:1
Power Source: Integrated Rechargeable Lithium-ion Battery
Max Input: 12VDC 0.5A
Package Contents: Cap Lamp, Charger, AC & DC Power Supplies & NS-HMC4 Mount
Warranty: Limited Lifetime

Intrinsically Safe Rechargeable Cap Lamp w/ Mount Nightstick XPR-5561GC Certifications:

Approval Lab Product Rating

  • CLASS I DIV 1: GRPS A-D T4
  • CLASS II & III DIV 1: GRPS E-G T135°C
  • CLASS I ZONE 0: AEx ia IIC T4 Ga
  • CLASS I ZONE 0: Ex ia IIC T4 Ga
  • ATEX Certification: I M 1 Ex ia I Ma
  • ATEX Certification: II 1 G Ex ia IIC T4 Ga
  • IECEx Certification: Ex ia I Ma
  • IECEx Certification: Ex ia IIC T4 Ga
