CorDEX IW SMART Infrared Inspection Window

CorDEX IW Series Intrinsically Safe SMART Infrared Windows are the newest generation for low, medium, and high voltage applications. The IW Series infrared window is compatible with any thermal imager, allowing for a new level of safety, efficiency, and accuracy in electrical inspection and predictive maintenance.

CorDEX SMART Infrared Windows are used to quickly and safely inspect electrical equipment across various industry sectors.

• The IW2000 IR Window is designed for when space is at a premium, this small, 50mm (2”) SMART IR Window can be installed into locations where many cannot. With its spring-loaded cover, the IW2000 can be installed in any orientation to make way for many of the obstructions typically found in low voltage panel boards and motor control centers.
• The IW3000 IR Window is the one that everyone wants. The 75mm (3”) SMART IR Window is our most popular IR Window product providing optimum viewing area vs cost. With its HydroGARD optic coating – exclusive to CorDEX – and extreme arc blast certification, the CorDEX IW3000 SMART IR Window is designed and proven to last the test of time.
• The IW4000 IR Window is the best of the best. When your priority is maximum flexibility and usability coupled with longevity and safety, the IW4000 100mm (4”) SMART IR Window is the obvious solution. Incorporating all of the features of the smaller versions with the benefit of an even greater viewing area, the IW4000 is the ultimate IR Window solution.

Features:

• UL / cUL
• CSA
• The IW Series are fully certified and tested to the following standards: UL50, UL50V, and UL1558
• Manufactured from industrial-grade materials proven to withstand electric arcs
• Efficient 1/4 turn locking system
• Intelligent multiple identification system for each individual window
• Arc flash tested against a 50kA short circuit for 1 second at 11kV
• Embedded RFID chip enables open-architecture databasing with any compatible RFID enable device
• CorDEX CONNECT™ is compatible for automatic transmission correct and reporting
• HYDROGARD™ coated broadband optic, impervious to moisture, mild acids, and alkalis – guaranteed
• Spring-loaded impact cover automatically raises and holds during your IR scan in any orientation
• Compatible with other SMART tools, saving you time and money
• Sira IP65

Versions

• 2"/50mm Infrared inspection window; UL/cUL, CSA
• 3"/75mm infrared inspection window; UL/cUL, CSA
• 4"/100mm infrared inspection window; UL/cUL, CSA

WHY CHOOSE OUR SMART INFRARED INSPECTION WINDOWS

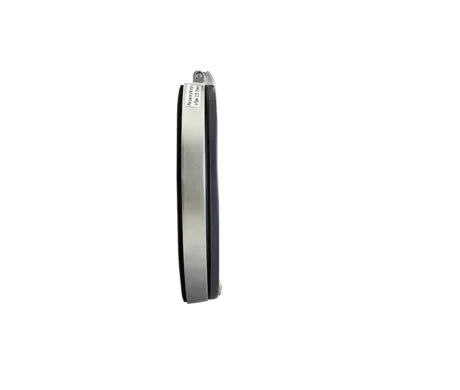

• Low profile design

Smooth, rounded edges, slim profile, and typical switchgear coloring match your host equipment perfectly, for a seamless installation.

• Anodized aluminum housing

Your switchgear body is made of metal, so your IR Window body should be also. Ensure you are not at risk of electric shock with this fully grounded, corrosion-protected design.

• Impact-resistant clear cover

Protect your investment and maximize your return. The impact-resistant clear cover helps prevent accidental damage whilst at the same time allowing visual inspection and confirmation of equipment status.

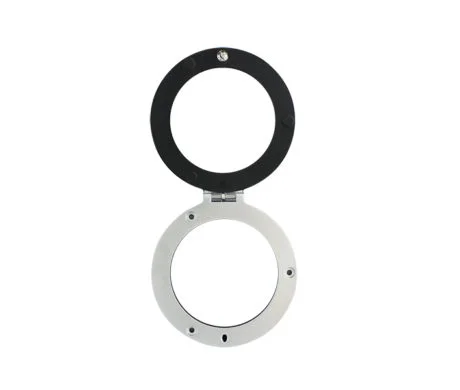

• Spring-loaded hinge

Avoid crowded panels restricting your view. Install IW Series in any orientation and its spring-loaded hinge will open and hold the cover automatically while you perform your survey.

• 13.5Mhz RFID tag

Wirelessly identify each IR Window with its unique, embedded RFID tag. Build databases of your IR Window inspections with any 13.5Mhz RFID-enabled tool, or take advantage of CorDEX CONNECT software and enabled tools to do it for you!

• Delivered fully assembled

No need to waste time and lose parts by removing screws and reassembling. Simply open the package, install and go.

• Broadband, HYDROGARD coated crystal

Operates with any camera; digital, infrared, or ultraviolet, the HydroGARD coated optic is designed to be flexible and last the test of time.

• ¼ turn quick release mechanism

Captive ¼ turn locking mechanism saves you money every time you use it. Simply twist the key 90 degrees and the IR Window automatically opens.

Specifications:

Optic/Crystal Data	IW2000	IW3000	IW4000
Crystal Insert Diameter	50mm (2in)	80mm (3.2in)	100mm (3.9in)
Viewing aperture diameter	45mm (1.8in)	73mm (2.9in)	93mm (3.7in)
Viewing aperture area	1591mm² (2.5in²)	4186mm² (5.6in²)	6794mm² (9.79in²)
Thickness	2mm (0.08in)	2mm (0.08in)	4mm (0.16in)
HYDROGARD Coating	Yes
Shortwave IR capable	Yes
Midwave IR capable	Yes
Longwave IR capable	Yes
Ultraviolet (UV) capable	Yes
Visual capable	Yes
Fusion capable	Yes
Certification
Underwriters laboratories (UL) recognized	Yes
UL50	Type 4/12
UL746C, UL94, UL50V, UL1558	Yes
Sira IP65	Yes
General Specification
Maximum Temperature	Gaskets: 250˚C (482˚F)
	Body: 659˚C (1218˚F)
	Optic: 1400˚C (2552˚F)
Gaskets	Low smoke and fume (LSF) compliant silicone
NEMA rating	Type 4/12 (UL Third Party Certified)
Vibration rating	IEC60068-2-6
Humidity rating	IEC60068-2-3
Warranty	Lifetime replacement against manufacturing defects
