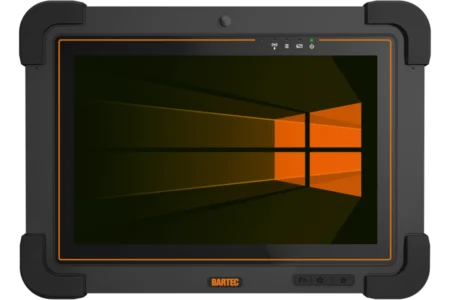

Intrinsically Safe Tablet Bartec Agile X IS

SKU: N/A
(1 customer review)

Intrinsically Safe Tablet Bartec Agile X IS is certified for ATEX and IECEx  and UL Class I Division 1. 2MP front camera and 5MP read with autofocus. 10.1″ inch with 1920 x 1200 pixel resolution. Intel processor with 8GB memory. Wifi, WWAN and Bluetooth ready.

ATEX Rating

Hazardous Area Rating

$7,19400

Price Depends on product option
Make a selection to update price

Clear

Trusted Clients

Similar Category:
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat us

Description

Intrinsically Safe Tablet Bartec Agile X IS

  • ATEX  Zone 1
  • IECEx
  • UL Class 1 Division 1

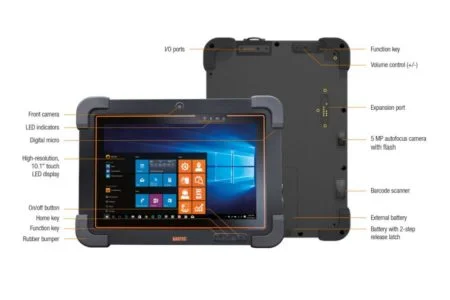

  • Highly flexible industrial tablet PC with powerful Quad-Core processor for rough and hazardous environments
  • Ergonomic positioned high quality 1D/2D imager SE4500 from Zebra and RFID reader HF/NFC
  • Brilliant, high-resolution, bonded 10.1″ touch LED display, sunlight readable, rain useable
  • High quality 5 MP camera
  • Integrated Bluetooth 4.1 LE, WLAN and optional LTE module
  • Unique expansion port for customer specific applications
  • Great amount of accessories supporting Productivity and operator safety

Intrinsically Safe Tablet Bartec Agile X IS is certified for ATEX and IECEx  and UL Class I Division 1.  This rugged industrial tablet PC is designed with flexiblity in mind. Weighing at 2.3 kilogram with 2MP front and 5MP read camera resolution plus the 1920 x 1200 pixel HD display, this device is set to make a big differencce in your images and recordings in the most extreme environments.

Intrinsically Safe Tablet Agile X IS Technical Specifications

Run on Windows operating system with Intel processor, Agile X IS is designed to resist the damages from certain rugged conditions. It also comes with external battery that can be hot swapped in hazardous areas. It is also made to function using Wifi, WWAN and Bluetooth. The 10.1″ panel size allows wider and bigger viewing and 10 point multi-touch function guarantees user responsiveness even with the use of gloves.

Bartec’s Agile X IS Story

Although Agile X IS is built to withstand extreme pressure, proper handling is still recommended. It is advised not to expose the tablet to liquids when the side connector is open and to keep away the device from heat sources and dropping it into hard surfaces.

Intrinsically Safe Tablet Bartec Agile X IS Specifications:

Ex Protection Type
ATEXZone 0
Certification
II 1 G Ex ia IIC T4
-20 °C ≤ Ta ≤ +50 °C
IECExZone 0
Certification
Ex ia IIC T4
-20 °C ≤ Ta ≤ +50 °C
ULListing
Certification
Class I, Division 1, Groups A, B, C, and D;
Class II, Division 1, Groups E, F, and G
Class III, Division 1 and Class I, Zone 0,
AEx ia IIC T4
System Specification
ProcessorIntel N3710 1.6 GHz (turbo 2.56 GHz)
System memory8 GB DDR3L-1600 on board
Storage128 GB SSD
Operating systemWindows® 10 IoT Enterprise
Windows® Embedded 8.1 Industry Pro
Bonded display and touch function
Panel size10.1" (16:10)
Resolution1920 x 1200 pixel
Brightness700 cd/m² (nits)
Contrast ratio750:1
Viewing angle89° from all sides
BacklightLED
GlassOptical bonding Gorilla Glass LCD
Multi touch10-point
I/O system keys and sensors
Hotkey buttonsFront:
Power, Home/Menu, Fn 1 (programmable)
Upper right:
Volume +, Volume-, Fn 2 (programmable)
LED indicatorsPower, charging, HDD status, RF status
USB (Type A)USB 2.0
IP 20, when cover is open
(possible to exchange in Zone 1/ Div 1
with BARTEC USB drive
Order no.: 17-A1Z0-0007 for 8 GB)
Power supply2.5 fi (DC 12 V - 19 V)
Micro SD card slot (1 pcs)Only listed cards to be used
(Order no.: 17-28BE-F006/000B for 8 GB)
Micro SIM slot (1 pcs)Located on I/O side
Internal battery charging time: approx. 3 h
Technical data
Dimensions290 mm x 209 mm x 33 mm (Length x Height x Width)
Weight2.3 kg
Camera2 MP (front),
5 MP (rear), autofocus camera with flash
Display10.1" (16:10), 2 x bonded Gorilla glass,
Resolution: 1920 x 1200 pixel,
LCD display
KeyboardHotkey buttons
Front: Power, Home/Menu, Fn 1 (programmable)
Upper right: Volume +, Volume-, Fn 2 (programmable)
Operating systemWindows ® 10 IoT Enterprise CBB
Windows ® Embedded 8.1 Industry Pro - on request
CPUIntel N3710 1.6 GHz (turbo 2.56 GHz)
MemorySystem memory: 8 GB SODIM DDR3L-1600
Mass storage: 128 GB SATA uSSD
BatteryInternal battery capacity: 7.4 V typ. 4200 mAh
External battery capacity: 7.4 V typ. 4200 mAh
Internal battery charging time: approx. 3 h
Internal and external battery charging time: approx. 5 h
External battery can be hot swapped in hazardous area
Network specificationsWiFi On board: IEEE 802.11 a/b/g/n/ac; 2 antennas
WWAN: 4G/LTE (optional)
Bluetooth: BT 4.1 Class I

Data Sheet:

Declaration of Conformity:

Quick Start Guide:

Brochure – Agile Tablet PC System Solution:

Brochure – Agile X IS:

Accessories:

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

2-Slot-Battery-Charging-Station-for-Agile-X-IS-main-image

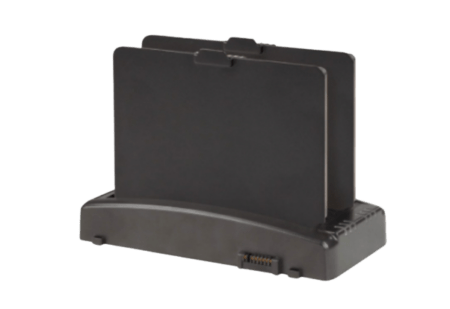

2-Slot Battery Charging Station for Agile X IS

SKU: 03-9914-0021

Bartec 2-Slot Battery Charging Station,Suitable with Agile X IS,For Charging 2 Batteries, nput Voltage: DC 10V to 20V (50W), Charge Indicator by LED and Buzzer,Two plugged charging stations can be supplied with one power supply. Scope of Delivery: 2-Slot Battery Charging Station, Power Supply, AC Power cable (EU + US)

Brand: Bartec

In Stock 3-5 business days

$90100

Bartec-Agile-X-IS-Leather-Carry-Case-main-image

Bartec Agile X IS - Leather Carry Case

SKU: 03-9829-0089

Bartec Agile X IS - Leather Carry Case is suitable with Agile X IS.With practical stand function and holder for stylus.Possible access to battery and integration of Add-on modules. Upgradable with shoulder strap and 4-point belt and built of robust industry quality leather.

Brand: Bartec

In Stock 3-5 business days

$29900

Bartec-Agile-X-Series-4-Point-Belt-image

Bartec Agile X Series - 4 Point Belt

SKU: 03-9829-0092

Bartec Agile X Series - 4 Point Belt is suitable for leather case for the Agile Tablet PC Series.With ergonomic back trace with shoulder pad for safe carrying in front of the body.It also easy and secure fitting on leather carry case using coloured pop fasteners.Plus adjustable strap length.

Brand: Bartec

In Stock 3-5 business days

$19900

Bartec-Agile-X-IS-Dual-Stylusmain-image

Bartec Agile X Series - Dual Stylus

SKU: 03-9849-0151

Bartec Agile X Series - Dual Stylus is suitable for capacitive touchscreen.It also dual tip stylus for Agile X IS and NI. ( 1 piece )

Brand: Bartec

In Stock 3-5 business days

$4800

Bartec-Agile-X-Series-Shoulder-Strap-image

Bartec Agile X Series - Shoulder Strap

SKU: 03-9829-0091

Bartec Agile X Series - Shoulder Strap is suitable for leather carry case of tablet PC Agile series.With ergonomic and soft shoulder pad. Also adjustable strap length plus mounting screw.

Brand: Bartec

In Stock 3-5 business days

$9000

Agile-X-IS-Cover-Module-main-image

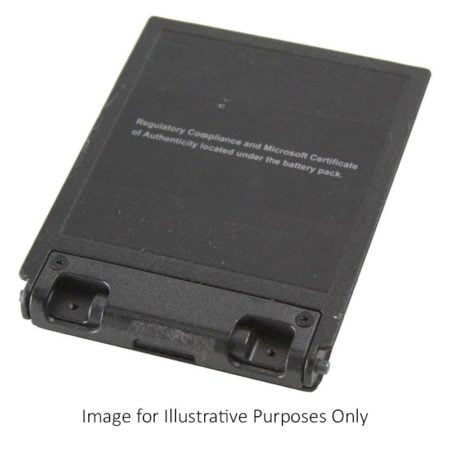

Battery Cover Module for Agile X IS

SKU: 03-9849-0150

Agile X IS Battery Cover Module for battery compartment, hot swappable and can be changed in potentially explosive atmosphere.

Brand: Bartec

In Stock 3-5 business days

$25600

Agile-X-IS-Carry-System-image

Carry System for Agile X IS

SKU: 03-9829-0101

This Bartec carrying system is suitable with Agile X IS, simplified handling, ergonomic back trace with shoulder pad for safe carrying in front of the body, with possible access to battery and integration of Add-On Modules, with holder for stylus and adjustable strap length. Scope of delivery includes: leather carry case, 4 point belt, and shoulder strap.

Brand: Bartec

In Stock 3-5 business days

$53000

Docking-Station-for-Agile-Series-main-image

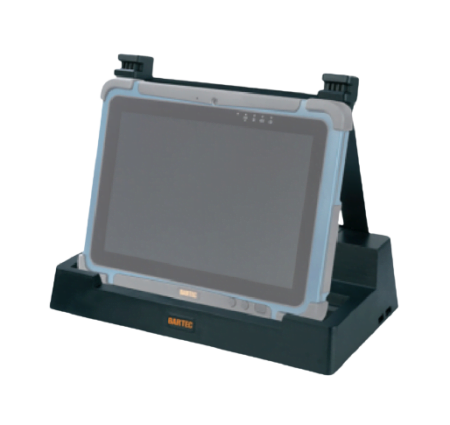

Docking Station for Agile Series

SKU: 03-9914-0022

Bartec Docking Station, Suitable for Agile Tablet PC Series, Input Voltage: DC 19V, Charging with Inserted Battery.

Brand: Bartec

In Stock 3-5 business days

$90300

External-Battery-for-Agile-X-IS-main-image-1

External Battery for Agile X IS

SKU: 17-A1Z0-0006

This External Battery is certified in combination with Agile X IS. It also powered by Lithium Ion Battery 7.4 V/4200 mAh (31.08 Wh). Hot swappable and can be change in explosive atmosphere.

Brand: Bartec

In Stock 3-5 business days

$90500

Agile-X-IS-Hart-Add-On-Module

Hart Add-On Module for Agile X IS

SKU: 17-A1Z0-0005

The intrinsically safe combination of the Agile X tablet PC system and the newly developed HART Add-On Module makes it possible to perform diagnostics, set parameters and manage field devices much more quickly and efficiently. Previously considerable time and effort was needed to diagnose problems and set the parameters on field devices. It was necessary to equip a laptop with a separate HART modem, but this was not allowed to be used simultaneously in an Ex area and non-Ex area. Use in the Ex area required a fire certificate with complicated approval procedure. The HART modem is used as an add-on module for the Agile X tablet PC system in its extension interface. Since the user is now able to switch safely between the Ex and non-Ex area, only one device is then needed for the wireless uploading or adjusting of the field devices distributed there, completely independently of the control system.and efficiently.

Brand: Bartec

In Stock 3-5 business days

$1,60400

Agile-X-IS-MicroSD-Card-16GB-main-image

Micro SD Card-16GB for Agile X IS

SKU: 17-A1Z0-0009

Bartec 16GB Micro SD Card, Certified in combination with Agile X IS, can be changed in potentially explosive atmosphere.

Brand: Bartec

In Stock 3-5 business days

$38900

Agile-X-IS-MicroSD-Card-32GB-main-image

Micro SD Card-32GB for Agile X IS

SKU: 17-A1Z0-0010

Bartec 32GB Micro SD Card, Certified in combination with Agile X IS, can be changed in potentially explosive atmosphere.

Brand: Bartec

In Stock 3-5 business days

$43800

Agile-X-IS-MicroSD-Card-8GB-main-image

Micro SD Card-8GB for Agile X IS

SKU: 17-A1Z0-0008

Bartec 8GB Micro SD Card, Certified in combination with Agile X IS, can be changed in potentially explosive atmosphere.

Brand: Bartec

In Stock 3-5 business days

$34100

Agile-X-IS-Screen-Protector-5-Pieces-image

Screen Protector for Agile X IS

SKU: 17-A1Z0-0011

Screen Protector for Agile X IS is certified in combination with Agile X IS.With 10" Inch protective display foil.Only be changed outside the potentially explosive atmosphere.( 5 Pieces)

Brand: Bartec

In Stock 3-5 business days

$13500

Agile-X-IS-USB-Stick-8GB-main-image

USB Stick-8GB for Agile X IS

SKU: 17-A1Z0-0007

Bartec 8GB USB Stick, Certified in combination with Agile X IS, Intrinsically safe and can be changed in potentially explosive atmosphere.

Brand: Bartec

In Stock 3-5 business days

$43800
