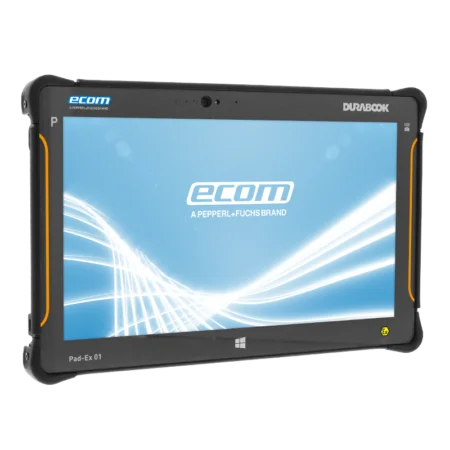

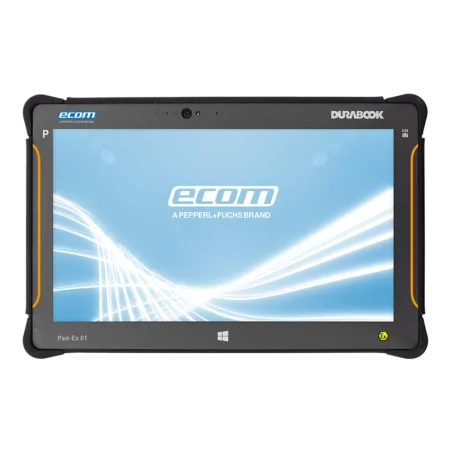

Check out the rugged mobility at its finest Intrinsically Safe Tablet Ecom Pad-Ex 01 P8 DZ2 is certified for Class I Division II hazardous area use. Its ultra-thin and lightweight exterior measures only 20 mm in height and 1.2 kg in weight. The Pad-Ex 01 P8 DZ2 meets all the environmental requirements and supports the 8th generation Intel Core i5 processor. It also provides a battery life of up to 7 hours and Windows 10 Pro support. Combining robust features and large screen size, superior performance is ideal for field operatives of all sectors to complement or even substitute Desktop PC, laptop, or wall-mounted display.
This intrinsically safe tablet is designed with protection class IP65, 4 feet drop, and MIL-STD 810G for vibration. It provides total protection from the harsh environment field workers confront and lessens the load on their bodies throughout long hours of work because of the additional display protection it provides.
Equipped with a brilliant 11.6″ widescreen display capacitive multi-touch screen with sunlight-readable display, 4G / LTE wireless connectivity to ensure access is fast and seamless – enabling users to quickly access the information needed to perform the task at hand. For sites without WiFi or 4G access in the field, Pad-Ex 01 P8 D2 provides up to 256GB of SSD memory to meet your onboard data storage needs, backed by an i5 to ensure your applications run as smoothly and efficiently as possible.
Features:
- Division 2
- Radio Modules: no GPS/LTE Modules
- Camera: Front and Rear Camera
- Scanner Module: no Scanner Module
- CPU: i5 Processor
- Memory: 8 GB RAM
- Storage: 256 GB SSD
- Operating System: Windows 10
- Battery Pack: 3950 mAh
- Connectivity: WiFi/Bluetooth Intel 9260
- Customization: ecom Standard, incl. AC Adapter, EU Power
- Cord and Dock Connector with Pass-Through
- Version: 11.6″” FHD (1920×1080)
Ecom Pad-Ex 01 P8 D2 also supports the latest Bluetooth standards, including Bluetooth Smart Ready Low Energy 5.0. (BLE). Data collection and monitoring devices, headsets, AutoID, and Bluetooth Beacons for localization are all available to mobile workers thanks to Pad-Ex 01 P8 D2 capabilities.

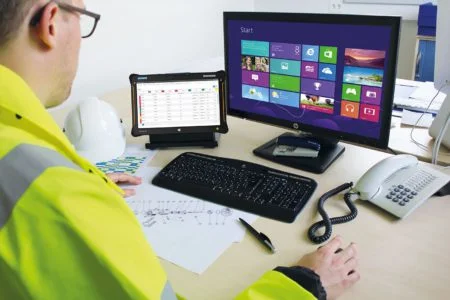

Once your work in the field is done, Pad-Ex 01 P8 D2 transforms into your PC via the optional desktop docking interface, allowing seamless integration into your office and corporate networks.
Specification
| RUGGED FEATURES | IP65 |
| DROP | MIL-STD 810G 516.6 Procedure IV |
| 6 drops from 4 feet height to plywood over concrete | |
| VIBRATION | MIL-STD 810G 514.6 Procedure I Cat. 24, |
| Fig. 514.6E-1 | |
| ENVIRONMENT TEMPERATURE | Operating: -10°C - 55°C (14°F - 131°F) |
| Storage: -10°C - 55°C (14°F - 131°F) | |
| HUMIDITY | Operating: 5% - 95% |
| ALTITUDE | Operating: 15,000 feet (approx. 4,572 m) |
| TECHNICAL FEATURES | |
| OPERATING SYSTEM | Full Windows 10 64 Bit / Windows 10 Pro |
| CPU | Intel Broadwell i5 series |
| MEMORY | One DDR4 socket for 8GB |
| STORAGE | M2-SATA SSD 256GB |
| DISPLAY | 11.6" HD (1920 x 1080) LCD Panel |
| Capacitive Multi-Touch | |
| Optical Bonding Sunlight Readable LCD | |
| Ambient Light Sensor | |
| SENSOR | Built-in G sensor, Gyroscope, and E-Compass |
| AUDIO | Integrated speaker x 1 |
| Integrated microphone - Intel® High Definition Audio Compliant | |
| CAMERA | 2MP Front Facing Camera |
| 5MP Rear Camera with auto focus and LED flashlight | |
| support Geo Tagging (Optional) | |
| COMMUNICATION | 4G LTE (Optional) |
| GPS (Optional) | |
| Intel Wireless AC9260 802.11 a/b/g/n/ac | |
| Bluetooth 5.0 | |
| DATA COLLECTION | 1D / 2D Barcode Scanner (Optional) |
| VO PORTS | Two USB 3.0 |
| One Headphone out / Mic-in jack | |
| One Docking Connector | |
| One Expansion Connector for Expansion Modules | |
| Two RF pass-through connectors for WWAN & GPS | |
| EXPANSION SLOTS | One Micro SD Card slot support SDHC & SDXC |
| One SIM Card | |
| BUTTON | Power |
| Volume | |
| Windows Touch button | |
| Barcode / Camera Touch Button | |
| Programmable Touch Button | |
| BATTERY | One 3,950 mAh Li-Polymer battery pack: 7hrs |
| 7,800 mAh (Optional) Li-Polymer battery pack: 14hrs | |
| AC ADAPTOR | 19 V; 3,42 A; 65 W |
| DIMENSION | 298 mm x 192 mm x 20 mm (11.75" x 7.55" x 0.78") |
| WEIGHT | 1.2 Kg (~42.32 oz) |
