Intrinsically Safe Tablet Ecom Tab-Ex 02 Zone 2
- ATEX Zone 2
- CSA Class I and II, Division 2
- CSA Class III, Divisions 1 and 2 hazardous locations
- Based on the latest Samsung Galaxy Tab Active2
- Includes WWAN (Mobile Data / 4G/LTE via your telcom SIM Card)
- WiFi and Bluetooth
- Android 7 Operating System
- 5 MP Rear-facing + 8 MP Front-facing Camera
- no SD card

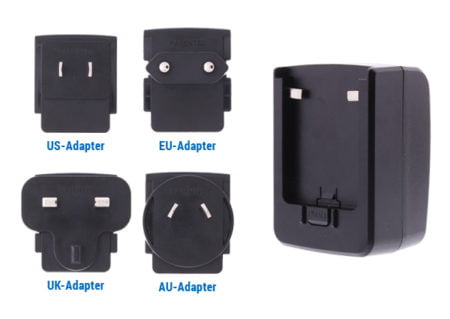

- includes 4450mAh Battery Charger with US plug
- USB charging cable and S Pen
- To be sold in US only
- Note: This is a USA WIFI Version ONLY and USA WIFI + LTE Version ONLY
Intrinsically Safe Tablet Ecom Tab-Ex 02 Zone 2 Review
Intrinsically Safe Tablet Ecom Tab-Ex 02 is suitable for worldwide use. It is ATEX Zone 2 Division 2 certified. It also comes with Ex-certification DZ1 according to ATEX, IECEx and CSA. A robust industrial device with IP68 and MIL standard, Tab-Ex 02 is one of the lightest and thinnest tablet of its class. It features 8″ tft display with enhanced touch capabilities on a high resolution screen. It is powered by Android 7 and is capable of running industry-focus applications.
It is also designed with more powerful security system via the Samsung Knox. This security application is highly customizable and convenient. Known to be ultra-rugged, Tab-Ex 02 is dust, water and shock resistant. It provides wet touch and glove mode support. It also built with faster, ultra powerful processor and RAM for heavy applications like Augemented Reality. Enjoy a 16GB internal storage and expandable storage via micro SD card up to 256GB.
Ecom Launches the Tab-Ex 02 Tablet Series for Div 1 and Div 2
Free yourself from the common issues of battery as Tab-Ex 02 is backed up with 4450 mAh battery which is replaceable with up to 25 hours talk time. The high quality camera (8MP automatic focus in front and 5MP back) provides an improved scanning performance for a better control and allows AR applications.
This tablet is also supported with Pogo Pins which prevent human error and won’t wear off due to magnetic connections. This powerful Ecom tablet also features face recognition, GPS, NFC, USB, Bluetooth and accelerometer.
|PROCESSOR||Exynos 7 Octa, 1.6GHz Octa-Core (Cortex®-A53)|
|OS||Android 7.1 (N)|
|DIMENSIONS||127.6 x 214.7 x 9.9mm, 575 g (Wi-Fi) / 579 g (LTE)|
|DISPLAY||1280x800 pixels (WXGA), 8", TFT, 480 nit brightness, wet touch and glove mode support|
|MEMORY||RAM: 3 GB, Storage: 16 GB, expandable via microSD card up to 256 GB|
|CAMERA||8MP AF + 5MP|
|BATTERY||4.450 mAh / user-replaceable|
|PORT||USB 2.0 Type-C / microSD slot (up to 256GB) / Pogo Pin (charging and USB signal for keyboard)|
|CONNECTIVITY||LTE Cat.6 (300Mbps) – in LTE model, Wi-Fi 802.11 a/b/g/n/ac (2.4GHz+5GHz), Wi-Fi Direct, Bluetooth 4.2|
|SENSORS||Face recognition, NFC, accelerometer, proximity, light, gyroscope, geomagnetic, Hall, GPS|
|STYLUS||S Pen / water and dust resistant (IP68) / in-box|
|RUGGEDNESS||Water and dust resistant (IP68), anti-shock (drop from 1.2m height with cover)|
|OPERATING TEMPERATURE||-20 °C … +55 °C|
Intrinsically Safe Ecom Tab-Ex 02 Zone 2
Hello everyone. This is the intrinsicallysafestore.com with our review of the Ecom hazardous area tablet, the Tab Ex-02 DZ2. This comes both in non and hazardous area rated as well as Zone 1 but this is the Zone 2 version. The Zone 1 version is a bit beefier and we also have that online at intrinsicallysafestore.com.
So this is the box that it comes in. It comes with a charging cable, the S-Pen here which is also rated for IP67 and you can take that into hazardous areas quite nicely. Just throw that back in the holes there but here it is. So we have the power here, two volume controls for the charging cradle, camera, rear camera, all the certification information there if you need to show it on site.
Let’s see here. Normal Android buttons as well as the headphone jack and charging port there. This is a really nice device for the hazardous area, rated areas some of the other vendors out there are bit beefier and thicker. This basically is a Samsung Galaxy Tab Active 2 which ECOM has worked to collaborate with them to make it hazardous area safe. So it is Zone 2 ATEX 2/22 rated Class 1 Division 2, IECEx rated for CSA.
8 inch screen here, runs on Android Oreo 8 and then comes with the standard you know what would come with a normal Samsung device like runs on Knoxx for security. It is IP68 certified for dust, water and shock so it is you know, quite really beefy or rated to that standard.
3 gigabytes around 25 hour talk time which is very impressive. So multiple shifts there. 8 mega pixel camera so you know high def, can create high-def videos. One interesting thing, obviously the LTE/Wi-Fi both model, both are available. An interesting thing here are the pins so there, I guess I forget the exact name but there it is. So they’re quite durable. Some of they have an additional charging port like an accessory for a quick charging.
And yeah, the S-pen I mentioned but this is really a great device. Obviously the operational excellence software like Fatfinger.IO to do digital procedures works with this. Any other standard Android application but this is one of the sexier hazardous area tablets on the market today. Replace the Tab Ex 01 so this is an 02 which is I guess updated model the newest thing from Ecom and comes with Zone 1 model as well as ATEX rated Zone 2.
Thank you from the intrinsicallysafestore.com. Check us out! We have all of the mobility products, hazardous area rated mobility products on the market. Give us a chat or call anytime. And look forward to hearing from you soon. Take care. Bye bye.
Intrinsically Safe Tablet Ecom Tab-Ex 02 Certifications:
- Intrinsically Safe Tablet Ecom Tab-Ex 02 ATEX Certificate English
- Intrinsically Safe Tablet Ecom Tab-Ex 02 ATEX Certificate German
- Intrinsically Safe Tablet Ecom Tab-Ex 02 IECEx Certificate
- Intrinsically Safe Tablet Ecom Tab-Ex 02 CSA Certificate
