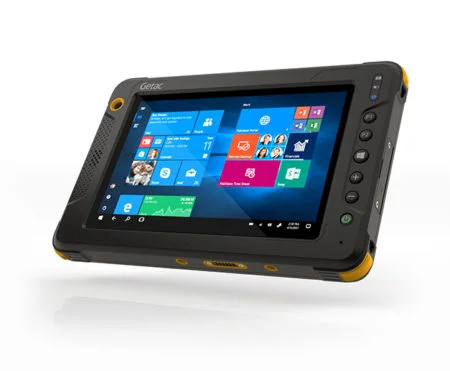

Getac EX80 Fully Rugged Tablet

Features

• ATEX Zone 0
• IECEx
• Class I, Zone 0, AEx ia op is IIC T4 Ga
• MIL-STD 810G and IP67 certified
• Vibration, drop, temperature and humidity resistant
• Windows 10 Pro
• 4GB LPDDR3 memory
• Intel HD Graphics
• 8” IPS TFT LCD WXGA 1280x800 600 NITs
• TPM 2.0 NIST BIOS compliant
• Intel Atom Processor x5-Z8350 Processor
• FHD (1920x1080) webcam x 1 and 8MP auto focus camera
• 240 x 155 x 29mm
• 3.26lbs
• 1 docking port

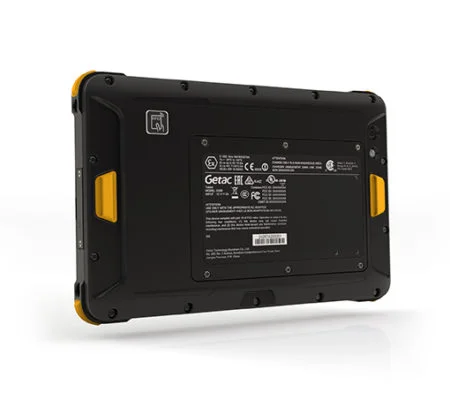

The Getac EX80 Fully Rugged Tablet is Intrinsically Safe and its anti-static. The sealed design limits the possibility of ignition in Zone 0/Class 1 Division 1 hazardous and explosive environments.

Versions

EX80 LTE

ED78Y2DH51XX - ,Intel Atom x5-Z8350,W/ Webcam,Microsoft Windows 10 Pro x64 with 4GB RAM,128GB eMMc,Sunlight Readable LCD+Touchscreen,US/EU/UK/CN/ANZ Power Cord,8M Rear Camera,BT/Wi-Fi/GPS/4G LTE (US/EU),HF RFID, Hand strap w/ kick stand, Capacitive stylus and stylus holder, Office dock with AC adapter, ATEX Zone 0/20 UL913 Class I/II Division 1, Low Temp -21°C, IP 67, 3 Year B2B Warranty

EX80 Basic

ED78Y2DH5AXX - EX80,Intel Atom x5-Z8350,W/ Webcam,Microsoft Windows 10 Pro x64 with 4GB RAM,128GB eMMc,Sunlight Readable LCD+Touchscreen,US/EU/UK/CN/ANZ Power Cord,8M Rear Camera,BT/Wi-Fi/GPS,HF RFID, Hand strap w/ kick stand, Capacitive stylus and stylus holder, Office dock with AC adapter, ATEX Zone 0/20 UL913 Class I/II Division 1, Low Temp -21°C, IP 67, 3 Year B2B Warranty

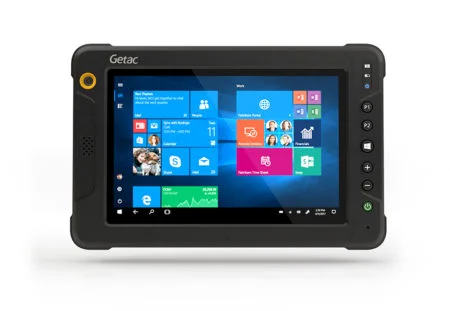

Large 8” IPS Display

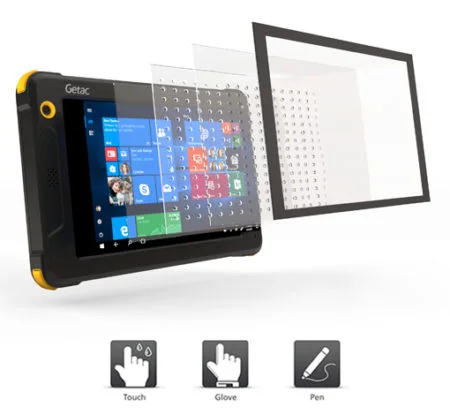

The Intrinsically Safe Tablet Getac EX80 features a large 8” IPS display that utilizes the revolutionary LumiBond 2.0 technology. This helps to achieve a display that is more readable, and offers better contrast and more crisp colors than any other rugged tablet display out in the market. By bonding the display glass with the touch panel and LCD, it created a single pane that is both more durable and readable.

Extremely Rugged

The EX80 is specifically engineered to be protected against drops, shocks, spills, vibration, salt-fog and more. It passed the rigid military standard tests, having been rated with both MIL-STD 810G and IP67.

Powerful and Efficient

The intrinsically safe Getac EX80 is packed with an incredible amount of power and technology. Built with the latest Quad-core Intel Atom x5-8350 1.44GHz processor, the EX80 provides all of the performance you need to get things done in hazardous areas, with no compromise to battery life.

Battery Power

The EX80 fully rugged tablet delivers over 8 hours of battery life on a single charge. This means more talk time and longer use in a day.

Warranty

Getac understands that accidents happen. It is why the manufacturer offers bumper-to-bumper coverage standards on every EX80 rugged tablet.

Specifications:

ATEX / IECEx / UL913 Certifications	ATEX and IECEx
	EX II 1 GD
	Ex ia op is IIC T4 Ga
	Ex ia op is IIIC T135ºC Da
	UL913
	Class I, Zone 0, AEx ia op is IIC T4 Ga
	Class II, Zone 20, AEx ia IIIC T135ºC Da
	Class I, Division 1, Groups A, B, C, D
	Class II, Division 1, Groups E, F, G
	Class III, Division 1
Ruggedness	MIL-STD 810G and IP67 certified
	Vibration, drop, temperature and
	humidity resistant
	Salt-fog resistant
Operating System	Windows 10 Pro
CPU	Intel Atom Processor x5-Z8350 Processor
	1.44GHz, burst up to 1.92 GHz; 2MB Cache
Memory	4GB LPDDR3 1
Storage	eMMC 128GB †
VGA Controller	Intel HD Graphics
Display	8” IPS TFT LCD WXGA (1280x800) 600 NITs
	LumiBond 2.0 sunlight readable display
	with multi-touch technology
Security	TPM 2.0; NIST BIOS compliant
	Contactless HF RFID reader
	13.56 MHz HF RFID (ISO 14443 – (A,B), MIFARE, ISO 15693)
	Optional Absolute software

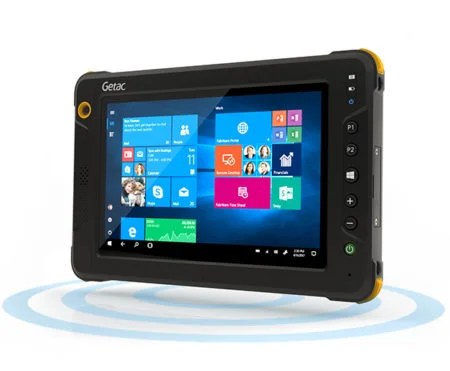

Communications	Dual Band 802.11a/b/g/n, Bluetooth (v4.0)
	Dedicated GPS
	Optional 4G LTE multi-carrier mobile
	broadband with CA 2
Keyboard	Six tablet buttons: Power, Windows
	Programmable x 2, Volume Up and Volume Down
Camera	FHD (1920x1080) webcam x 1
	8MP auto focus camera
Power	Charging Cradle
	AC adapter (24W, 100-240VAC, 50 / 60Hz)
	Li-Ion battery (7.4V, 4200mAH)
Dimensions and Weight	9.4” x 6.1” x 1.14” (240 x 155 x 29mm)
	3.26lbs (1.48kg) ††
Temperature	Operating Temp: -5.8° F to 122° F / -21°C to 50°C;
	Storage Temp: -40°F to 160°F / -40°C to 71°C
	Humidity: 95% RH, non-condensing
I/O Interfaces	Docking port x 1
Warranty	3 Year bumper-to-bumper warranty standard

Resources:

• Getac EX80 Specification Sheet
