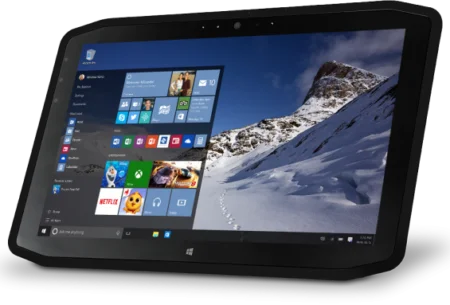

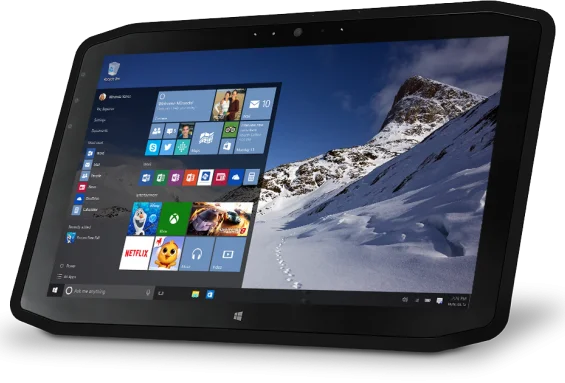

Xplore XSLATE R12 Rugged Tablet

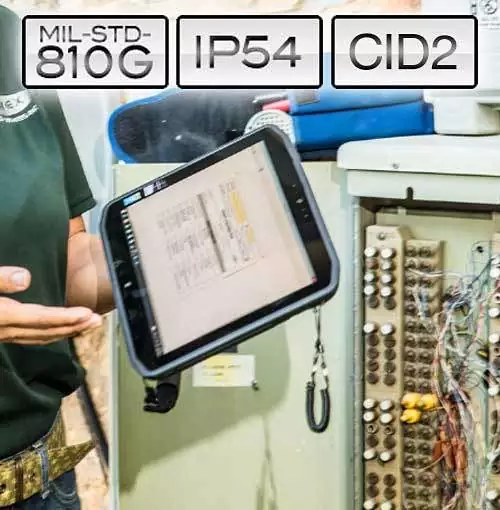

The intrinsically safe tablet Xplore XSlate R12 is classified as Class 1 Division 2. MIL-STD-810G and IP54 rated for water and dust resistance. 7th generation Intel Core i7 vPro and Intel Core i7 processors with Windows 10. Pass-Through antenna for WWAN, WLAN, and GPS. Broadband 4G LTE and Wi-Fi 802.11ac. 10-point capacitive touch. There is an 8 MP rear camera and a 2 MP front camera. Up to 1 TB SSD and 8GB memory. Hot-swappable batteries. Certified by Microsoft Azure for IoT 6 ports, including HDMI, micro-sim, and USB.

Hazardous Area Rating

Trusted Clients

  • Logo PH66
  • Logo  Exxon
  • Logo Bp
  • Logo Conoco Phillipis
  • Logo Irwing
  • Logo Bayer
  • Logo Tesoro
  • Logo Northen TIer
  • Logo Udelhoven
  • Logo Aloha petroleum
  • Logo Rand
  • Logo Arrow Energy
  • Logo Schlumber
  • Logo Afton
  • Logo Holly frontier
Similar Category:

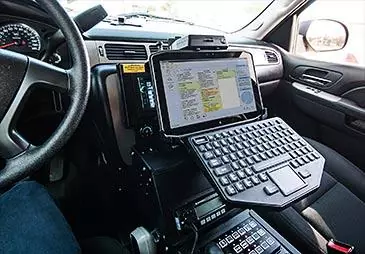

With the Intrinsically Safe Tablet Xplore XSlate R12, you can do computing, research, and other data-intensive tasks in the office, on the road, and in the field with ease and accuracy. The XSlate R12 is a highly mobile, extremely flexible Class 1 Division 2 certified tablet and computer. It is a 2-in-1 device that is both MIL-STD-810G and IP54 rated. It features pass-through antennas for WWAN, WLAN, and GPS in both the tablet and Secure Mobile Dock. Powered by Windows 10 Pro 64 bit operating system, this rugged tablet is backed up with Intel Core i7 vPro -7600U and Intel Core i7-7500U.

Xplore XSlate R12 comes with Corning Gorilla Glass and a 1000 Nit View Anywhere display, making it the best outdoor-viewing device in its class. There is also 4GB and 8GB of memory, as well as 512 GB and 1TB of storage, so more files, can be stored. Every time you use it for work or in hazardous areas, you’ll enjoy the full HD resolution 1920 x 1080 and capacitive 10-point touch. It comes with Intel HD Graphics 620 i7-7500U and i7-7600U. For bright and crisp results in pictures and videos, Xplore XSlate R12 is designed with an 8MP rear camera and a 2MP front camera.


  • Class 1 Division 2 Compliant and Intrinsically Safe for use in Hazardous Locations
  • MIL-STD-810G
  • IP54 rated for water and dust resistance
  • 7th generation Intel Core i7 vPro and Intel Core i7 processors with Windows 10
  • Lower energy use enables longer battery life
  • Pass-Through antenna for WWAN, WLAN, and GPS
  • 4G LTE Broadband and 802.11ac Wi-Fi
  • 8 MP rear camera and 2 MP front camera

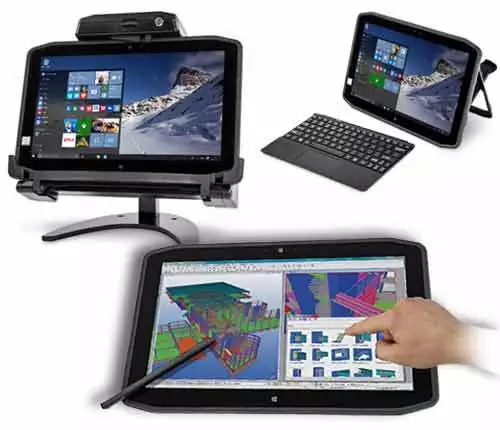

  • Capacitive 10-Point Touch, Wacom Digital Pen, and Companion Keyboard
  • Up to 1 TB SSD and 8GB memory
  • Hot-Swappable Battery
  • Microsoft Azure Certified for IoT
  • 6 ports including HDMI, micro-sim, and USB


- 4’ drop tested over plywood
Class 1 Division 2 for Hazardous Locations
Magnesium-alloy internal frame
Rubberized enclosure
OPERATING SYSTEMSWindows 10 Pro 64-bit
Windows 8.1 Pro 64-bit*
Windows 7 Professional 64-bit*
*available thru Windows 10 downgrade
*available on i5-6200U only
PROCESSORIntel Core i7 vPro - 7600U
- 2.8 GHz with turbo frequency to 3.9 GHz,
4 MB SmartCache, 2 cores (4 threads)
Intel Core i7-7500U
- 2.7 GHz with turbo frequency to 3.5 GHz,
4 MB SmartCache, 2 cores (4 threads)
Intel Core i5-6200U
- 2.3 GHz with turbo frequency to 2.8 GHz,
3 MB SmartCache, 2 cores (4 threads)
Intel Celeron 3865U
- 1.8 GHz, 2 MB SmartCache, 2 cores (4 threads)
MEMORY4GB (Celeron 3865U only)
DISPLAY12.5” Wide Viewing Angle Display
Full-HD Resolution (1920 x 1080)
- 1000 Nit Display Brightness
- Anti-Smudge & Anti-Reflective ViewAnywhere Display
Corning Gorilla Glass 3
Capacitive 10-Point Touch

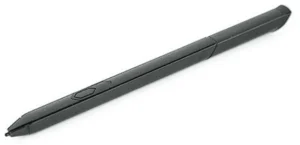

Wacom Digital Pen Input
Standard user replaceable anti-glare screen protector
- 3H hardness
GRAPHICSIntel HD Graphics 620 for i7-7500U, i7-7600U
Intel HD Graphics 610 for Celeron 3865U
Intel HD Graphics 520 for i5-6200U
CAMERA8 MP rear camera
2 MP front camera
PORTSDocking connector
USB 3.0 port
HDMI port
3.5 mm audio output (stereo out, mono in)
Micro-SIM Card Slot (3FF)
Micro-SDHC por
BATTERY LIFE and POWERBattery operation
– Standard battery: up to 9 hours
Battery charge time
– Standard battery: 2.75 hours with system off
Standard bridge battery (1 minute swap time)
– Hot swap battery feature comes standard
Input Voltage: 19V with AC Adapte
DIMENSIONS/WEIGHT12.93” x 8.17” x .75” / 2.95 lbs
SECURITYIntegrated Fingerprint Reader
Trusted Platform Module (TPM) 2.0
Optional CAC / SmartCard reader
WARRANTY3 year standard coverage included
Extended Warranty and xDefend Programs Available.
