This product is currently unavailable. Our team can help you find a suitable alternative or advise on lead times.
| Country of Origin | United States (US) |
| ATEX Safety / Zone | Zone 1 |

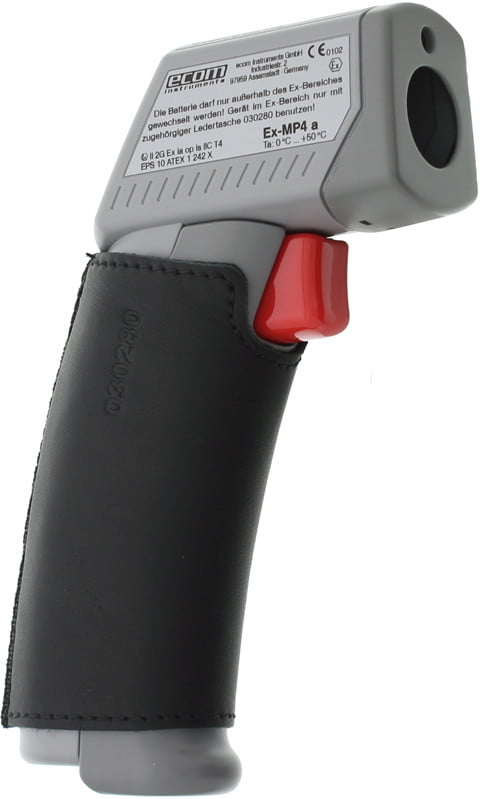

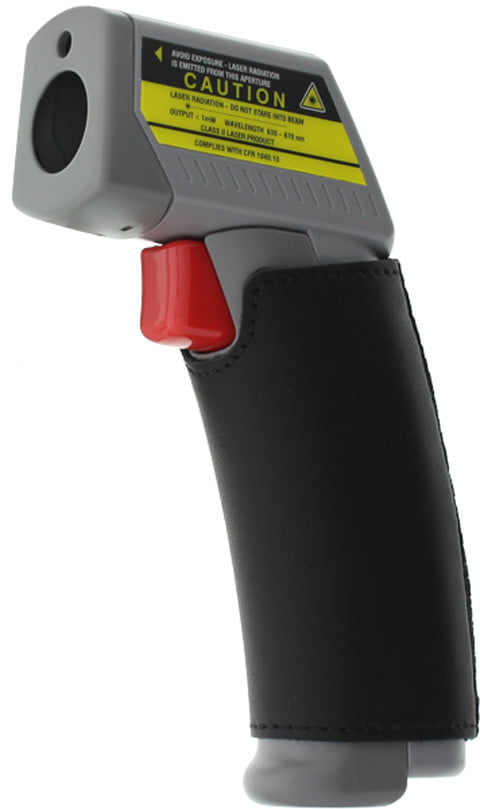

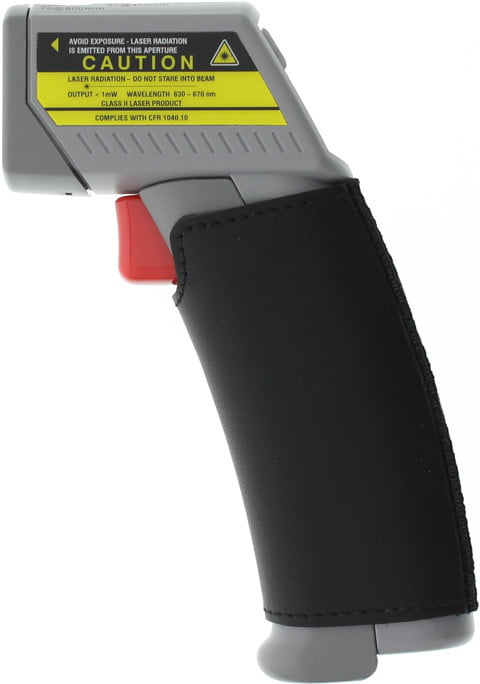

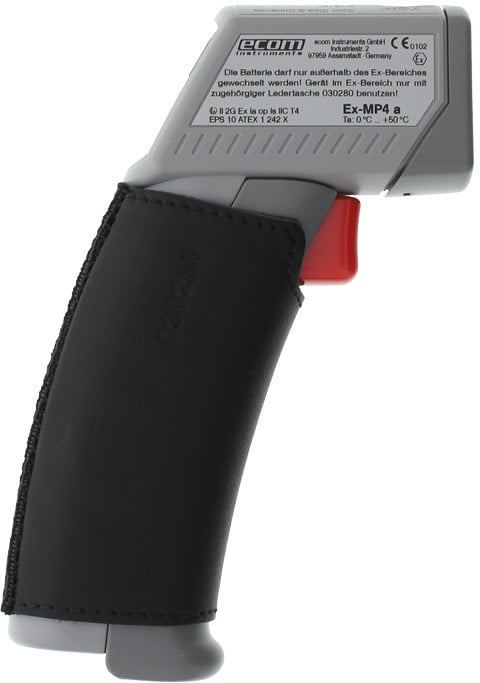

This is the Intrinsically Safe Temperature Meter Ecom Ex-MP4 a ATEX Zone 1 rated. Temperature meter equipment is intrinsically safe and non-contact and is also extremely handy and easy to operate in non-hazardous areas. Due to its non-contact nature, it can now be used over a long distance.
The temperature meter responds quickly and accurately. Traditional direct contact thermometers are around twenty to one thousand times slower. Pyrometers are much faster because they respond to emitted energy. It is also low maintenance and non-invasive because the non-contact of the detector means no wear and tear and no fixing or fastening points required on either the object or equipment. Furthermore, the procedure does not affect the temperature of the object being tested.
| TEMPERATURE RANGE | -18 °C … +400 °C |
| DISPLAY RESOLUTION | 0.2 °C |
| ACCURACY | -18 °C … -1 °C ±3 °C, |
| (23 °C) | -1 °C … +400 °C ±2 % or ±2 °C of reading - whichever is greater |
| REPEATABILITY | ±2 % of reading or ±2 °C - whichever is greater |
| RESPONSE TIME (95%) | 500 msec |
| EMISSIVITY | preset 0.95 |
| OPTICS D/L | 0.125 |
| SPECTRAL RESPONSE | 7 µm - 18 µm |
| LASER CLASS | Class 2 |
| HUMIDITY | 10 to 95% r.H. (non condensing at up to 30 °C (86 °F)) |
| AMBIENT TEMPERATURE | ±0 °C … +50 °C (+32 °F … +122 °F) |
| STORAGE TEMPERATURE | -20 °C … +65 °C (-4 °F … +149 °F) without battery |
| POWER SUPPLY | 1x IEC 6LR61 (type approved) |

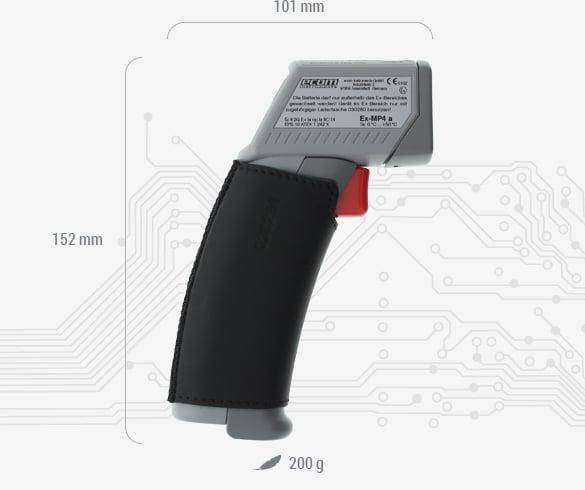

| DIMENSIONS | 152 mm x 101 mm x 38 mm (~ 6" x 4" x 1.5") |
| WEIGHT | approx. 200 g (~ 7.1 oz) |
