Intrinsically Safe Thickness Gauge CorDEX UT5000

(1 customer review)

IECEx and ATEX certified Intrinsically Safe Thickness Gauge  CorDEX UT5000 for Zone 1 IIC T4 hazardous areas. Features CorDEX CONNECT. Full colour and backlit screen. EchoEcho technology to measure thickness.

ATEX Rating

$2,40488

Trusted Clients

Similar Category:
Need Help?

Speak with a Hazardous Area expert now

832 699 6726 | Chat us

Description

Intrinsically Safe Thickness Gauge CorDEX UT5000

  • ATEX Zone 1
  • IECEx
  • Features CorDEX CONNECT
  • EchoEcho Technology to measure thickness through painted surfaces
  • Drop-down menus to select the correct material velocity
  • Multiple calibration and zeroing modes for repeatable accuracy
  • On-board data recorder and RFID scanner
  • Tough tested



CorDEX designed Intrinsically Safe Thickness Gauge UT5000 to measure metal thickness on pipelines and fixed equipment within hazardous environments. A device with ATEX andd IECEx certifications, it is reinforced with CorDEX Connect that uses RFID + software to tag measurements, giving the engineer a view of the equipment at a specific location.

UT500 CorDEX Key Features:

Apart from that,  CorDEX UT5000 Intrinsically Safe Thickness Gauge  is ergonomically designed with large user friendly controls and on board material velocity table. It also comes with a durable 1.5 metre UT5000 cable that is reinforced with protective copper rim to reduce transducer wear. It passed the CorDEX ToughTEST on drop, dust and water.

UT5000 CorDEX Tough Test:

See data and figures even under the bright sunlight with the full colour, backlit screen. With its durable frame and very easy to use functions,  Intrinsically Safe CorDEX Thickness Gauge  allows you to get on site, and get the job completed safer, faster and better.

Product Specifications
ATEX Certificate No.Baseefa11ATEX0114
IECEx Certificate No.IECEx BAS 11.0094
MemoryStores up to 1000 measurements
Screen8cm (3.1inch) RGB TFT colour screen with backlight Right/left handed set up
Material Velocity SelectionPreloaded via Drop-Down menu, or user defined.
TransducerDual Element
Pulse RateStandard transmit pulse rate of 4Hz Adjustable from single shot up to 8Hz
Receiver Bandwidth1MHz to 15MHz (-3dB points)
Frequency4MHz, 3mm up to 100mm (0.11in to 3.9in)
Accuracy+/- 0.05mm (0.002in)
RFID Tag Reader• Operates with 13.54MHz passive tags
• Detection range up to 5cm (1.9in)
• Supports ISO/IEC 15693-2, ISO/IEC 18000-3 tag formats
Battery Details• Lithium thionyl chloride primary 3.6V cell
• 100 hours continuous operation with back light restrictions
• Low battery warning
Operating Temperature-10 to +50C (14 ̊F to 122 ̊F)
Weight1.1Kg (2.4lb)

Intrinsically Safe Thickness Gauge CorDEX UT5000 Certifications:

Intrinsically Safe Thickness Gauge CorDEX UT5000 Other Resources:

Product Accessories

Make Your Job Easy. Try Our Most Popular Accessories

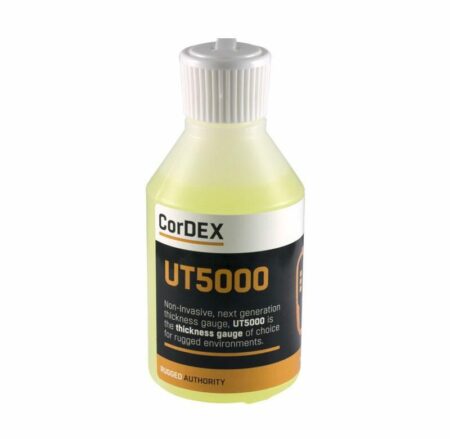

CorDex-Couplant-Gel-2x125ml-Bottles-–-XP-560-main-image

CorDex Couplant Gel (2x125ml Bottles) – XP-560

SKU: 34039900

The CorDex Couplant Gel (2x125ml Bottles) – XP-560 couplant gel is an ultrasonic couplant designed for your ultrasonic inspections including UT5000. Use the gel on all types of metallic surface and it is especially suited to solving the problems of rough, pitted, uneven surfaces allowing smooth probe movement during testing.

Brand: CorDEX

In Stock 7-10 business days

$3200

CorDex-Intrinsically-Safe-ProbeTransducer-–-XP-570

CorDex Intrinsically Safe Probe/Transducer – XP-570

SKU: 90318038

CorDEX Intrinsically Safe Probe/Transducer (includes cable) is designed for intrinsically safe thickness gauge UT5000.

Brand: CorDEX

In Stock 3-10 business days

$75400

CorDex-Refresh-Kit-–-Shock-resistant-skin-2-x-wrist-strap-Battery-Cover-and-Stand-–-XP-590

CorDEx Refresh Kit – XP-590

CorDEx Refresh Kit – Shock resistant skin, 2 x wrist strap, Battery Cover and Stand – XP-590 is designed for intrinsically safe thickness gauge UT5000.

Brand: CorDEX

In Stock 3-10 business days

$17500
