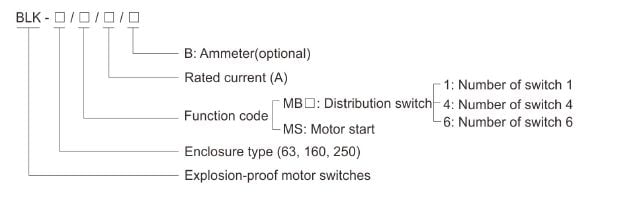

Intrinsically Safe Warom Explosion-proof Motor Switches BLK IIC
- Classified as IIC according to the gas atmosphere.
- Copper-free Aluminium Alloy enclosure, powder-coated surface.
- Built-in MCB (miniature circuit breaker), MCCB (moulded case circuit breaker).
- Earth leakage protection device is optional.
Specifications
| Material | Copper-free Aluminium Alloy, powder coated surface |
| Weight | 6.50 kg |
| Dimensions | 215Wx215Hx170D(mm) |
| Enclosure colour | Window grey (RAL7040) |
| Exposed fastener | Stainless steel |
| Circuit breaker | MCB (miniature circuit breaker) |
| Max. working voltage | Max.690V AC 50/60Hz; 500V DC |
| Rated voltage | 1P/230V AC, 2P/3P/4P/400V AC 50/60Hz |
| Rated current | 1A~63A |
Data
| Global (IECEx) | IECEx CQM 12.0037X |
| Gas and dust | Ex db IIC T6 G |
| Ex tb IIIC T80℃ Db IP66 | |
| Europe (ATEX) | Presafe 17 ATEX 10687X |
| Gas and dust | II 2 G Ex db IIC T6 Gb |
| II 2 D Ex tb IIIC T80℃ Db IP66 | |
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -60℃~+55℃ |
Intrinsically Safe Warom Explosion-proof Motor Switches BLK IIC Certification:
Intrinsically Safe Warom Explosion-proof Motor Switches BLK IIC IECEX Certification
Intrinsically Safe Warom Explosion-proof Motor Switches BLK IIC Other Resources:
Intrinsically Safe Warom Explosion-proof Motor Switches BLK IIC Brochure
