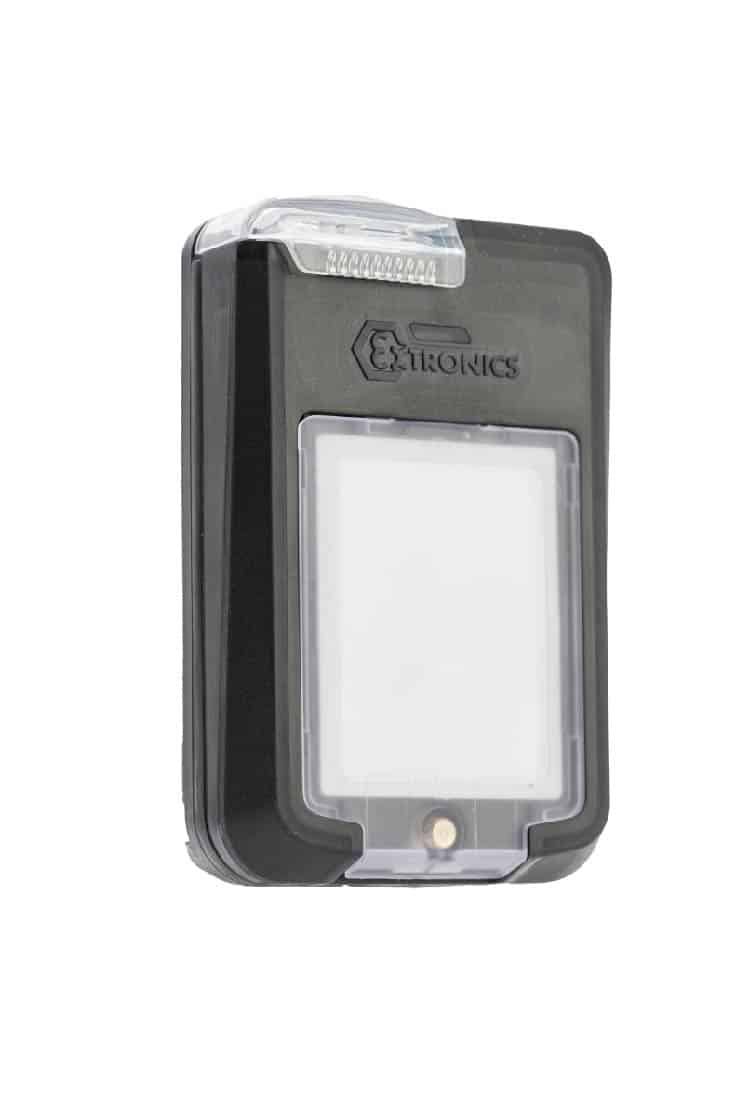

iTAG X40 LoRaWAN Connected Worker Location Tag – ATEX/IECEx Zone 0, GPS, Wi-Fi, BLE
The iTAG X40 is a next-generation intrinsically safe worker safety tag designed to provide reliable location tracking and emergency alerts in hazardous areas. With ATEX/IECEx Zone 0 and cMETus Class I, II, III Division 1 certifications, the X40 is suitable for oil & gas, mining, utilities, and chemical industries where worker safety is paramount. By leveraging LoRaWAN connectivity, it offers long-range, low-power communications with reduced infrastructure requirements.
The X40 combines GPS, Wi-Fi, and BLE technologies for precise hybrid location tracking both indoors and outdoors. It includes fall detection, man-down alerts, and a dedicated emergency call button with visual, audible, and tactile feedback. With a rugged IP66-rated housing, lightweight design, and stainless steel clip, the iTAG X40 ensures safe, reliable, and comfortable use in the harshest industrial environments.
Key Features:
✅ ATEX/IECEx Zone 0, 20, and M1 certified
✅ cMETus Class I, II, III Division 1 certified
✅ LoRaWAN for long-range, low-power connectivity
✅ Hybrid location: GPS, Wi-Fi, BLE, LF receiver
✅ Automatic fall detection and man-down alerts
✅ Visual, audible, and tactile call button notifications
✅ Rugged IP66 enclosure with stainless steel clip
✅ Lightweight design – only 125 g
✅ Rechargeable lithium-ion battery with >500 charge cycles
iTAG X40 Technical Specifications:
| Feature | Details |
|---|---|
| Model | iTAG X40 |
| Connectivity | LoRaWAN Class A, GPS/GLONASS/Beidou, Wi-Fi (2.4 GHz), BLE (2.4 GHz), LF 125 KHz |
| Certification | ATEX/IECEx Zone 0, 20, M1; cMETus Class I, II, III Div. 1 |
| Alerts | Visual (LED), Audible (90 dB buzzer), Tactile (vibration) |
| Fall Detection | Automatic man-down alerts with 30s cancel option |
| Dimensions | 85 × 56 × 26 mm (tag only) / 95 × 56 × 38 mm (with clip) |
| Weight | 125 g (tag), 35 g (charger) |
| Enclosure | Polycarbonate/PBT with TPU overmold, stainless steel clip |
| Ingress Protection | IP66 |
| Battery | Rechargeable Li-ion, >500 charge cycles, 4 h charging time |
| Operating Temp | -20 °C to +55 °C |
| Humidity | 5% to 95% RH non-condensing |
Certifications & Compliance:
🔗 ATEX/IECEx – II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T200 147°C Da, I M1 Ex ia I Ma
🔗 cMETus – Class I, II, III Div. 1 Groups A–G, T4
🔗 FCC/CE Radio Certification
🔗 IP66 – Dust and water protection
🔗 Download Datasheet
Applications of iTAG X40:
🔹 Oil & Gas
🔹 Chemical Plants
🔹 Mining
🔹 Utilities
🔹 Manufacturing
What’s in the Box?
📦 1x iTAG X40 Worker Location Tag
📦 1x Stainless Steel Clip
📦 1x Charger (USB Type A to 2-pin cable)
📦 1x Documentation Kit
Ordering & Shipping Details
📦 Lead Time: Please contact us to confirm current lead times
📍 Shipping Terms: Worldwide / Expedited Options
💳 Payment Options: Credit Card, PayPal, Net 30 Terms
FAQs:
What makes the iTAG X40 unique?
It uses LoRaWAN plus hybrid GPS, Wi-Fi, and BLE tracking for highly accurate worker location with minimal infrastructure.
Is the iTAG X40 intrinsically safe?
Yes, it carries ATEX, IECEx, and cMETus certifications for Zone 0/20 and Class I, II, III Division 1.
Does the tag detect falls?
Yes, automatic fall detection and man-down alerts are built in.
What is the battery life?
It uses a rechargeable lithium-ion battery, retaining >80% capacity after 500 charge cycles (runtime depends on configuration).
