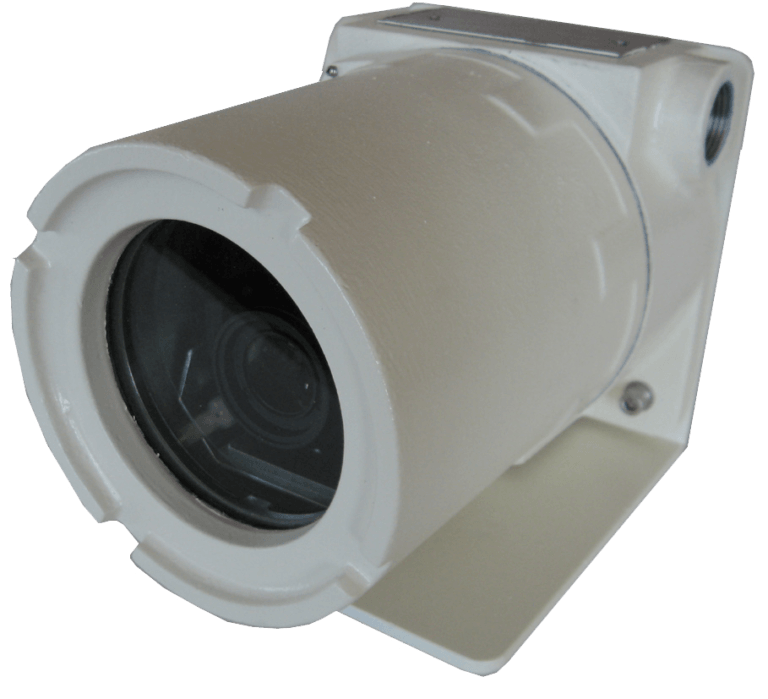

IVC AMZ-3041-2 Explosion-Proof Fixed CCTV Camera
The IVC AMZ-3041-2 Explosion-Proof Fixed CCTV Camera is a high-resolution, day/night analog video camera engineered for hazardous environments. Designed with varifocal and auto iris lenses, it offers multiple lens variants to suit various surveillance needs.
Housed in a rugged, cast-aluminum casing, this camera is waterproof, fully sealed, and certified for hazardous area use. With a NEMA 7/4X rating, it ensures durability in extreme industrial conditions. For environments requiring additional corrosion resistance, a stainless-steel enclosure option is also available.
The AMZ-3041-2 includes a mounting arm for easy installation. It operates on 12VDC or 24VDC and requires only a power source and a coaxial video connection. To enable IP connectivity, a separate video encoder is required.
Key Features
✅ Explosion-Proof Certified: Class I, Division 1 & ATEX Zone 1 & 2 approved.
✅ Day/Night Functionality: Provides high-resolution surveillance in all lighting conditions.
✅ Multiple Lens Options: Varifocal and auto iris lens configurations available for customized coverage.
✅ Rugged & Weatherproof: NEMA 7/4X-rated cast aluminum housing ensures durability in extreme conditions.
✅ Wide Operating Temperature Range: Functions reliably from -40°C to +60°C.
✅ Indoor/Outdoor Fixed Camera: Designed for industrial and remote hazardous locations.
✅ Flexible Power Options: Available in 12VDC and 24VDC versions.
✅ Seamless Integration: Requires only power and a coaxial video connection; IP functionality available via separate video encoder.
Specifications
| Imager | 1/3″ DPS CMOS | Video Output | VBS 1.0V p-p/75 Ohms |
| Minimum Illumination | 0.3 Lux (color); 0.06 Lux (b/w) | Weight | 8.1 lbs. (Aluminum Enclosure) 10.2 lbs. (Stainless Steel Enclosure) |
| White Balance | Auto | Voltage Required | 12 VDC or 24 VAC |
| Auto Iris | DC iris | Power Consumption | 19.2 W Max. |
| Gain | Auto | Operating Temperature | -40° to 60° C |
| Horizontal Resolution | 525 TV lines (NTSC) 625 TV lines (PAL) | Dimensions | 5.50” H x 5.50”W x 7.75” D (Aluminum) 5.50” H x 5.50” W x 8” D (Stainless Steel) |
| S/N Ratio | 50 dB (p-p/rms) or better | Mount | Wall Mount Standard |
| Protection Class | NEMA Type 4x, IP66 | F-Number | 1.4 |
| Regulatory Approvals | |||
| Safety | Conforms to UL STD 61010-1 + UL1203 | Hazardous Area | Class I Groups B, C & D, |
| Certified to CSA STD CSA22.2 NO.30 + | Class II Groups E, F & G, | ||
| CAN/CSA C22.2 No. 25 | Class III Type 4x | ||
| EN 60079-0:2012, EN 60079-1:2007, EN | Class I Zone 1 AEx d IIC | ||
| 60079-31:2009. | Ex d IIC IEC 60529, T6 | ||
| ATEX 94/9/EC. |
📌 For a full list of specifications, see the AMZ-3041-2 Data Sheet
Certifications & Compliance
✅ Explosion-Proof Certificate
✅ ATEX Certified (Zone 1 & 2)
✅ IECEx Certified
✅ Electrical Safety Compliance
Applications
🔹 Oil & Gas Facilities – Secure pipelines, drilling sites, and refineries.
🔹 Chemical & Petrochemical Plants – Monitor hazardous material storage and processing areas.
🔹 Mining & Industrial Sites – Ensure safety and security in hazardous zones.
🔹 Power & Energy Infrastructure – Surveillance for utilities, substations, and energy plants.
🔹 Marine & Offshore Environments – Suitable for harsh, corrosive conditions.
What’s in the Box?
📦 Package Includes:
- 1x IVC AMZ-3041-2 Explosion-Proof Fixed CCTV Camera
- 1x Mounting Arm & Hardware
- 1x Power Supply
- 1x User Manual & Safety Guide
Ordering & Shipping Details
📦 Lead Time:4 weeks
📍 Shipping Terms: EXW/CPT
💳 Payment Terms: T/T in advance, net terms available
Resources & Certifications
📄Electrical Safety Certificate
💡 Need expert advice? Contact our hazardous area specialists for guidance on selecting the right explosion-proof camera.
🔹 💰 Best Price Guarantee! We match or beat competitor prices – order today for maximum security and compliance!
More Options For You:
Mikel –
The best in its class, the Explosion Proof CCTV Camera IVC AMZ-3041-2 X-Series is certified Class I Division 1, Class 2, IECEx with ATEX 94/9/EC rating. The high resolution day/night camera is very helpful when it’s getting dark. The camera itself is very durable as it is made of a heavy-duty, cast-aluminum enclosure. This is highly useful in a hazardous environment.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
ankita –
very informative blog.like it alot!
explosion proof camera
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Sales Intrinsically Safe Store –
Thank you, Ankita. If there’s anything you need, don’t hesitate to chat or email.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Mayumi –
May I ask what is the connectivity of this camera in recording videos?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Joann Rosales –
This is an analog camera and the connectivity is RG 59 Coax.
